Note: This article is discontinued.

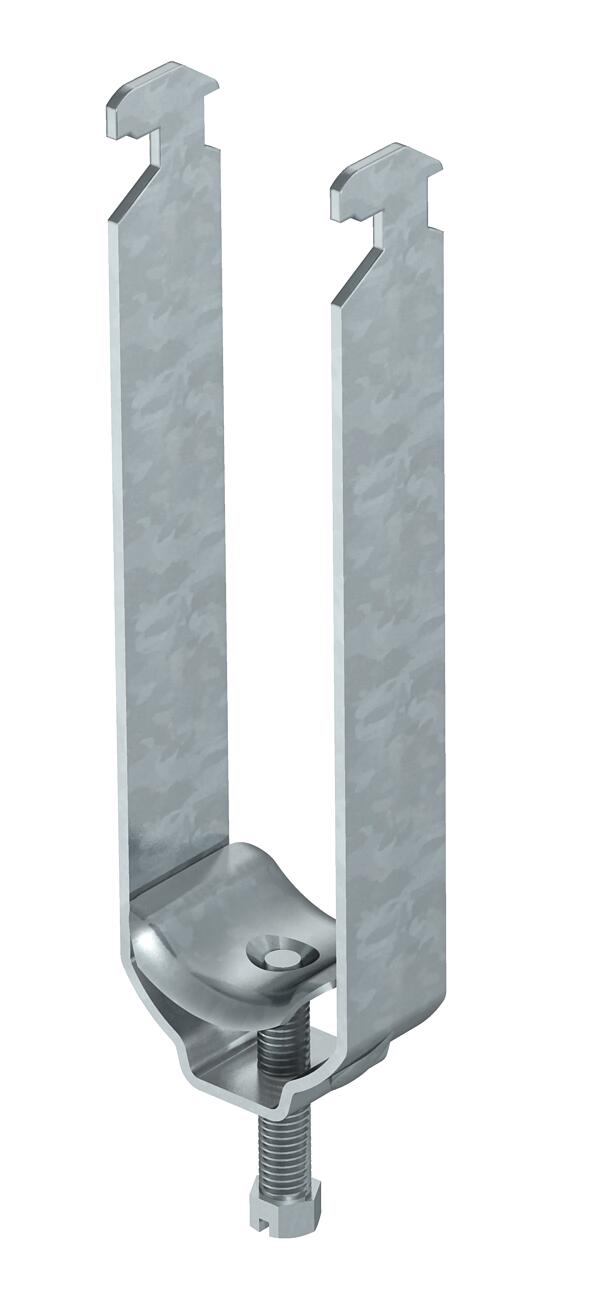

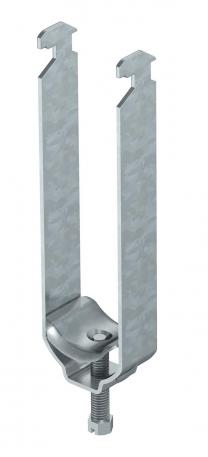

Clamp clip, triple, metal pressure trough
Item no. 1156241 | EAN 4012195958765
- Product description
-
Product description
Clamp clip with metal pressure trough, triple, 8–12 mm
-
- Technical data
-
Technical data
Clamping range D, max. 12 mm Clamping range D, min. 8 mm Dimension 8-12mm for rail with slot width (with interval), max. 17 mm for rail with slot width (with interval), min. 16 mm Halogen-free no Impact-resistant no Material Steel Material addition Steel Material of trough Steel Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 3 Surface Hot-dip galvanised Surface addition hot galvanised With counter-trough no With metal trough yes With plastic trough no Dimensions

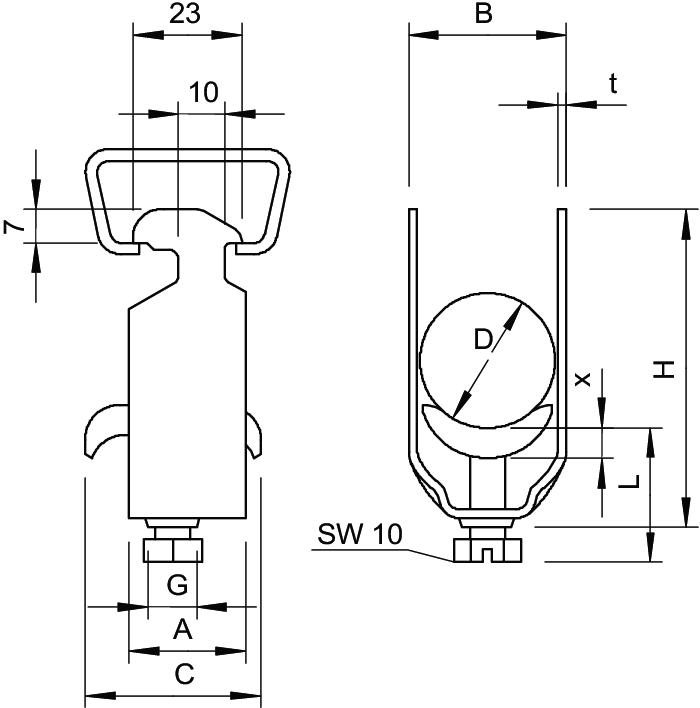

Dimension A 23 mm Dimension B 16 mm Dimension C 34 mm Dimension G (mm) M6 Dimension H 70 mm Dimension L 47 mm Dimension t 1,5 mm Dimension x 5 mm - All types
- Downloads
-
Data sheet 2056 M3 12 FT / 1156241 , 0.31MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity 2056 M3 12 FT / 1156241 , 0.13MB , pdfREACH Declaration of conformity 2056 M3 12 FT / 1156241 , 0.12MB , pdfRoHS Declaration of conformity 2056 M3 12 FT / 1156241 , 0.12MB , pdf
