Clamp clip, single, FT metal pressure trough 8 | 12 | 3

morepic-1

morepic-2

Clamp clip, single, FT metal pressure trough

Item no. 1158007 | EAN 4012195498254

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Suitable for all C profile rails with slot width 18 mm and 22 mm.

Technical data

Technical data

Clamping range D, max.	12 mm
Clamping range D, min.	8 mm
Dimension	8-12mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	no
Impact-resistant	no
Material	Steel
Material addition	Steel

Material of trough	Steel
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface	Hot-dip galvanised
Surface addition	hot galvanised
With counter-trough	no
With metal trough	yes
With plastic trough	no

Dimensions

Dimension A	20 mm
Dimension B	16 mm
Dimension C	34 mm
Dimension G (mm)	M6

Dimension H	42 mm
Dimension L	34 mm
Dimension t	1,5 mm
Dimension x	5 mm

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056U M 12 FT	8 mm	12 mm	3 Nm	1158007	piece	100 piece
2056U M 16 FT	12 mm	16 mm	3 Nm	1158015	piece	100 piece
2056U M 28 FT	22 mm	28 mm	3 Nm	1158031	piece	100 piece
2056U M 34 FT	28 mm	34 mm	5 Nm	1158058	piece	100 piece
2056U M 40 FT	34 mm	40 mm	5 Nm	1158066	piece	100 piece
2056U M 46 FT	40 mm	46 mm	5 Nm	1158074	piece	100 piece
2056U M 58 FT	52 mm	58 mm	5 Nm	1158090	piece	100 piece

Downloads

Data sheet 2056U M 12 FT / 1158007 , 0.33MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Brochure Geprüfte Verlegesysteme für Kabelanlagen , 2.00MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 2056U M 12 FT / 1158007 , 0.13MB , pdf

REACH Declaration of conformity 2056U M 12 FT / 1158007 , 0.12MB , pdf

Download

RoHS Declaration of conformity 2056U M 12 FT / 1158007 , 0.12MB , pdf

Download

Test certificate Gutachterliche Stellungnahme zum Funktionserhalt: Steigetrassen an Massivwand , 1.77MB , pdf

Surveyor's comments Maintaining electrical functionality Fire protection fastening on load bearing wooden components , 6.58MB , pdf

Surveyor's comments Funktionserhalt von Zugentlastung ZSE90 für senkrechte Kabelverlegung , 1.08MB , pdf

Download

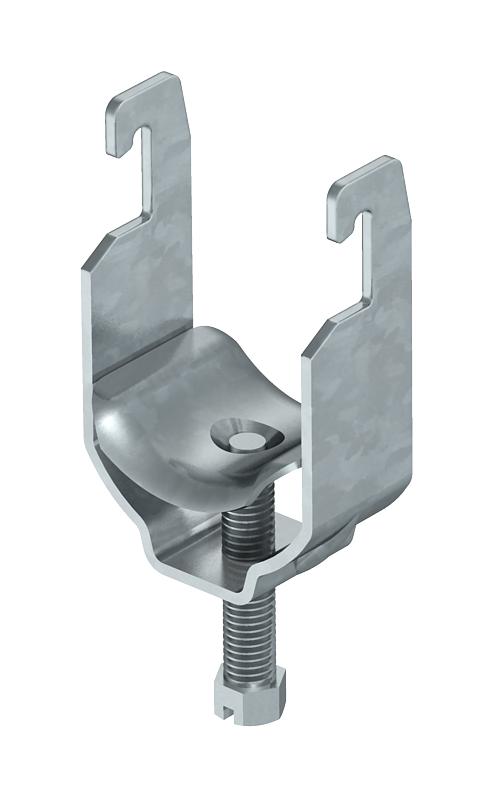

Product graphic 2056U M 12 FT / 1158007, 22.88 kB, jpg

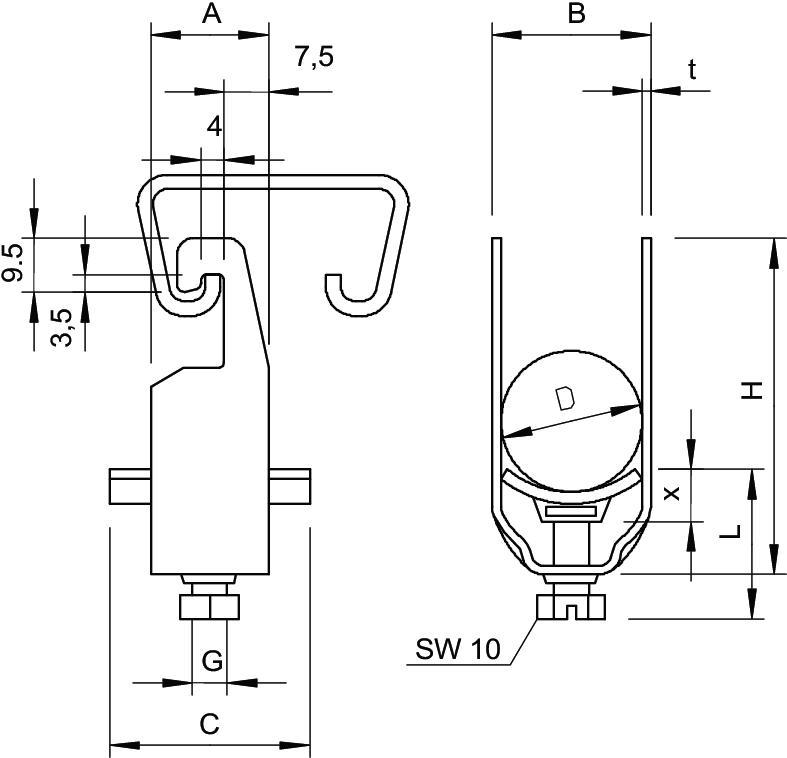

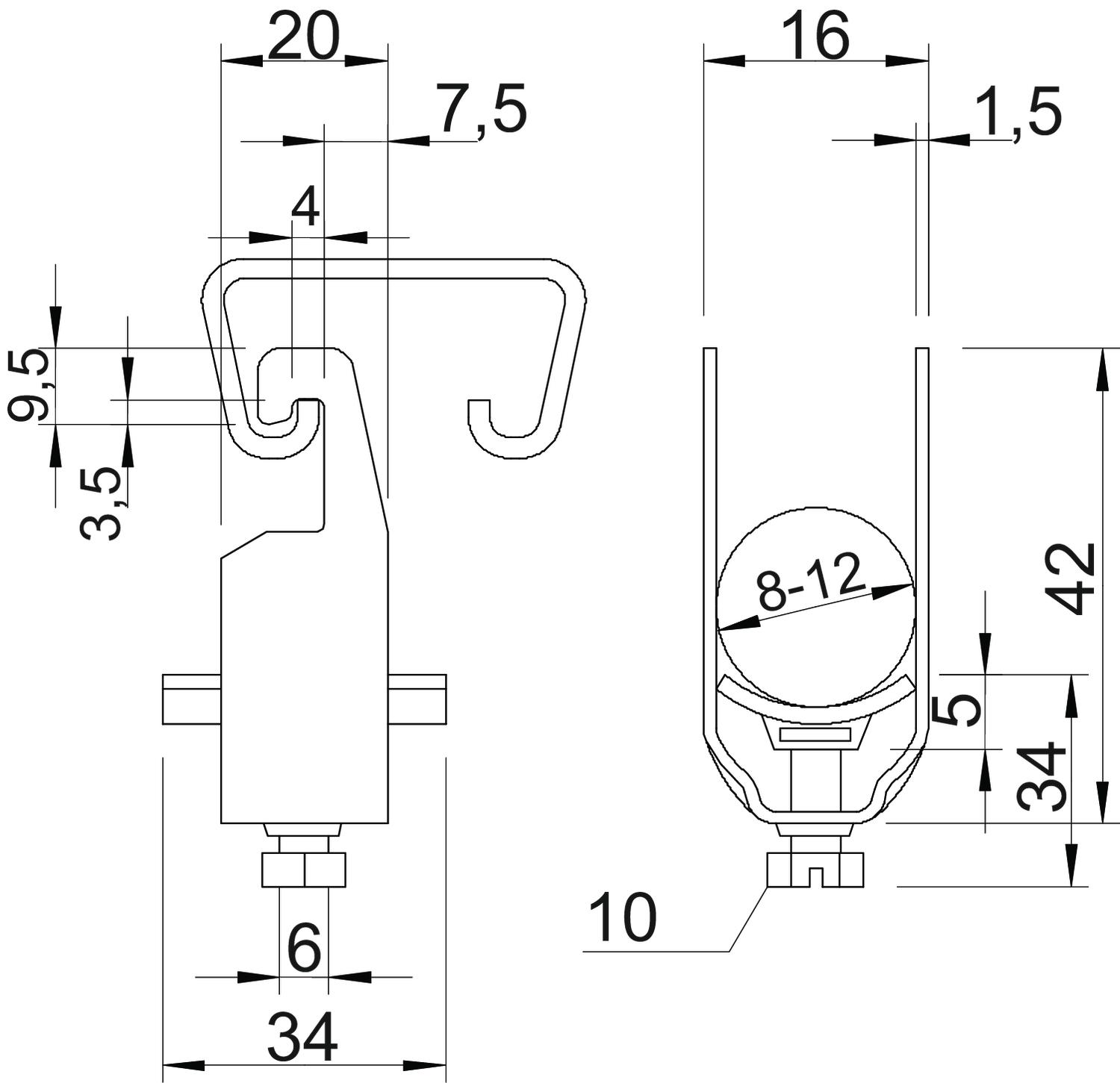

Scale drawing 2056U M 12 FT / 1158007, 42.34 kB, jpg
