Note: This article is discontinued. You can find the current article here: 1186056 / Clamp clip 2056 H-foot, 1-fold, metal pressure sleeve, FT

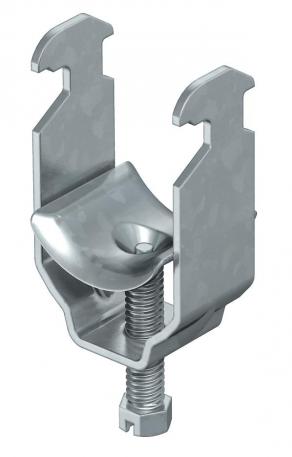

Clamp clip, single, FT metal pressure trough 52 | 58 | 5

Clamp clip, single, FT metal pressure trough

Item no. 1156098 | EAN 4012195063193

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Suitable for all C profile rails with slot width 16–17 mm.
Clip, bolt and pressure trough made of hot-dip galvanised steel.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.

Technical data

Technical data

Clamping range D, max.	58 mm
Clamping range D, min.	52 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,304 kg CO₂e / 1 Piece
Dimension	52-58mm
Dimension A	23 mm
Dimension B	64 mm
Dimension C	35 mm
Dimension G (mm)	M8
Dimension H	93 mm
Dimension L	44 mm
Dimension t	2,5 mm
Dimension x	5 mm
for 1 cable H	93 mm
for 1 cable L	44
for rail with slot width (with interval), max.	17 mm

for rail with slot width (with interval), min.	16 mm
Halogen-free	no
Impact-resistant	no
Material	Steel
Material addition	Steel
Material of trough	Steel
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface	Hot-dip galvanised
Surface addition	hot galvanised
With counter-trough	no
With metal trough	yes
With plastic trough	no

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056 M 12 FT	8 mm	12 mm	3 Nm	1156004	piece	100 piece
2056 M 16 FT	12 mm	16 mm	3 Nm	1156012	piece	100 piece
2056 M 46 FT	40 mm	46 mm	5 Nm	1156063	piece	100 piece
2056 M 52 FT	46 mm	52 mm	5 Nm	1156071	piece	100 piece
2056 M 58 FT	52 mm	58 mm	5 Nm	1156098	piece	100 piece
2056 M 64 FT	58 mm	64 mm	5 Nm	1156101	piece	100 piece
2056 M 90 FT	82 mm	90 mm	5 Nm	1156152	piece	25 piece
