Note: This article is discontinued.

Clamp clip, single, A2 plastic pressure trough

Item no. 1178504 | EAN 4012195074595

Product description
Product description
Suitable for all C profile rails with slot width 18 mm and 22 mm.

Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Slot width 18 mm
  • Slot width 22 mm
Technical data

Technical data

Clamping range D, max. 12 mm
Clamping range D, min. 8 mm
CO₂ Footprint (GWP) Cradle-to-Gate 0,171 kg CO₂e / 1 Piece

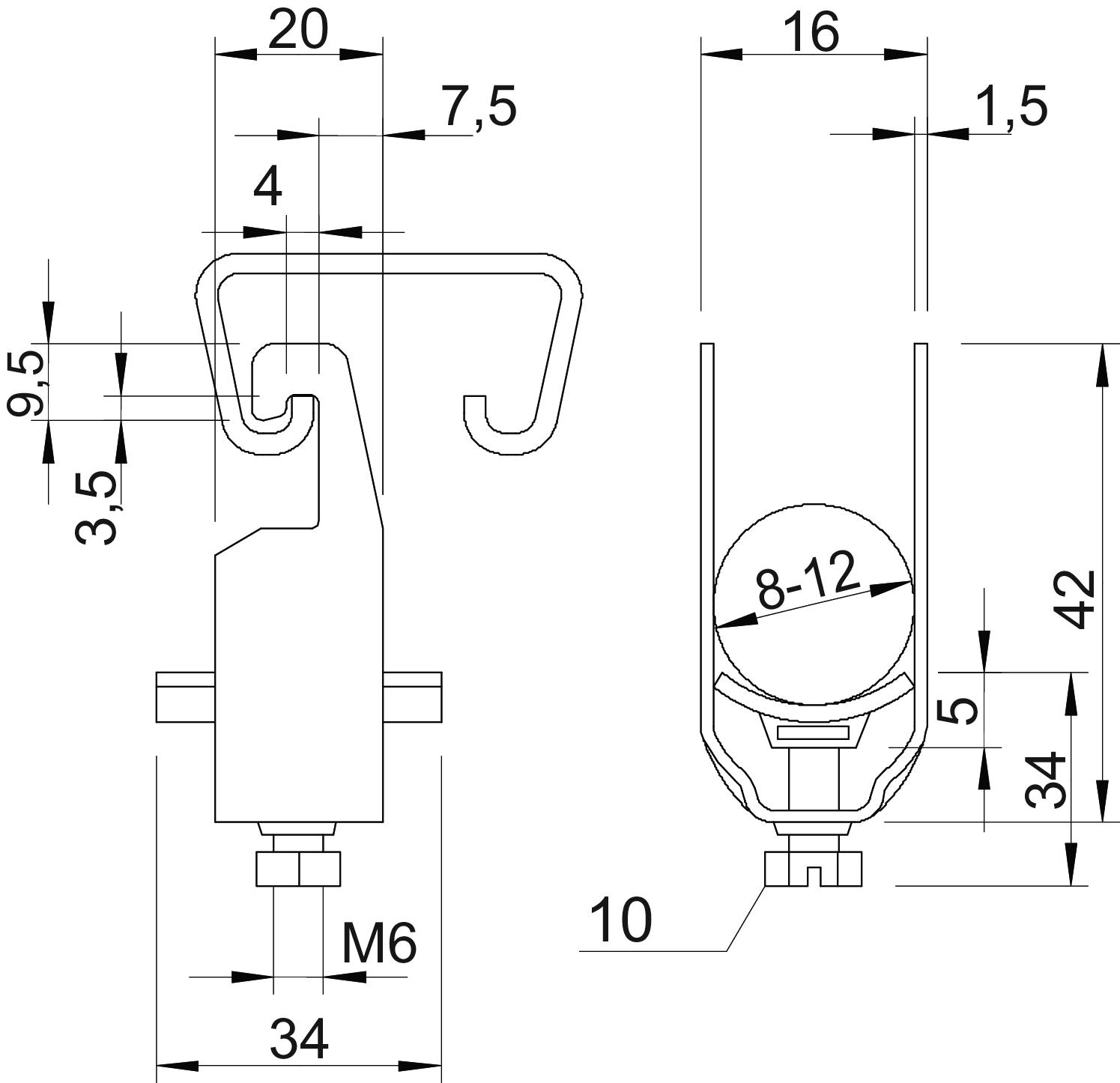

Dimension 8-12mm
Dimension A 20 mm
Dimension B 16 mm
Dimension C 34 mm
Dimension G (mm) M6
Dimension H 42 mm
Dimension L 34 mm
Dimension t 1,5 mm
Dimension x 5 mm
for 1 cable H 42 mm
for 1 cable L 34
for rail with slot width (with interval), max. 22 mm
for rail with slot width (with interval), min. 18 mm
Halogen-free yes
Impact-resistant no
Material Stainless steel
Material addition Rustproof steel
Material of trough Plastic
Material quality of trough Polypropylene
Max. Tightening torque 3 Nm
Mounting type Profile rail
Number of cables/pipes 1
Surface Bright, treated
Surface addition Untreated
With counter-trough no
With metal trough no
With plastic trough yes
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no. Quantity SSU
2056U 12 A2 8 mm 12 mm 3 Nm 1178504
50 piece
2056U 22 A2 16 mm 22 mm 3 Nm 1178520
50 piece
2056U 28 A2 22 mm 28 mm 3 Nm 1178539
50 piece
2056U 52 A2 46 mm 52 mm 5 Nm 1178571
25 piece
2056U 70 A2 64 mm 70 mm 5 Nm 1178628
15 piece
