Clamp clip 2056 H-foot 2-fold, metal pressure sleeve, FT
Item no. 1186023 | EAN 4012196848621
- Product description
-

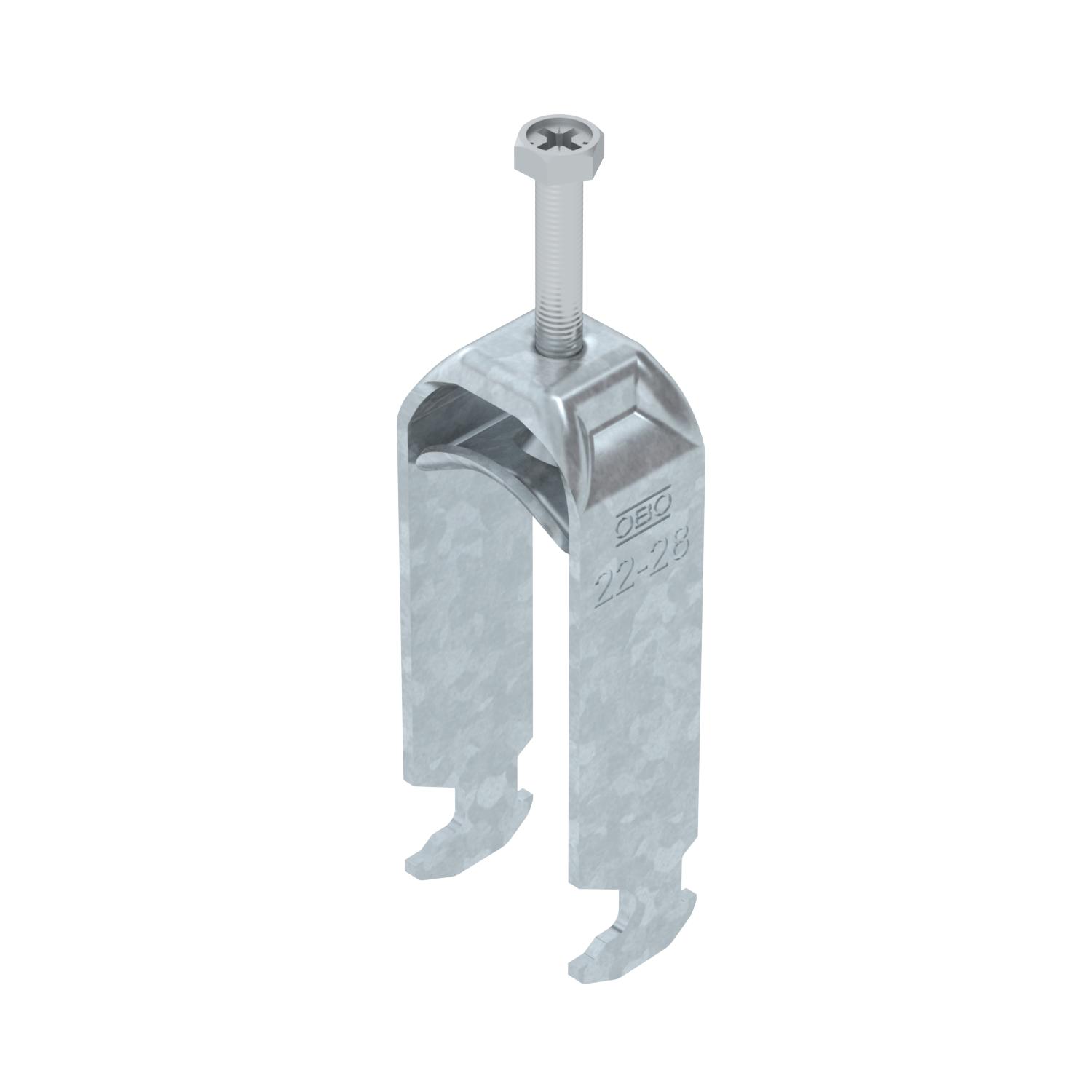

Product descriptionClamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
-
- Technical data
-
Technical data

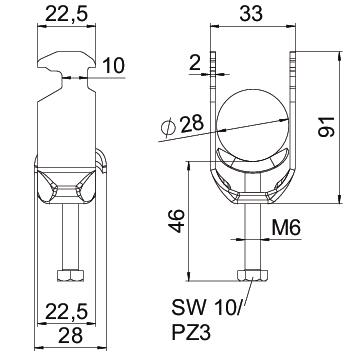

Clamping range D, max. 28 mm Clamping range D, min. 22 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,179 kg CO₂e / 1 Piece Dimension 22-28mm Dimension A 22,5 mm Dimension B 33 mm Dimension C 28 mm Dimension G (mm) M6 Dimension H 91 mm Dimension L 34 mm Dimension t 2 mm For pipe diameter, max. 28 mm For pipe diameter, min. 22 mm for rail with slot width (with interval), max. 17 mm for rail with slot width (with interval), min. 16 mm Halogen-free yes Height 91 mm Length 22,5 mm Length of external dimensions 28 mm Maintain electrical functions yes Material Steel Material addition Steel Material of trough Steel Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 2 Plate thickness 2 mm Slot width 10 mm Surface Hot-dip galvanised Surface addition hot galvanised Thread M6 Width 33 mm With counter-trough no With metal trough yes With plastic trough no - All types
