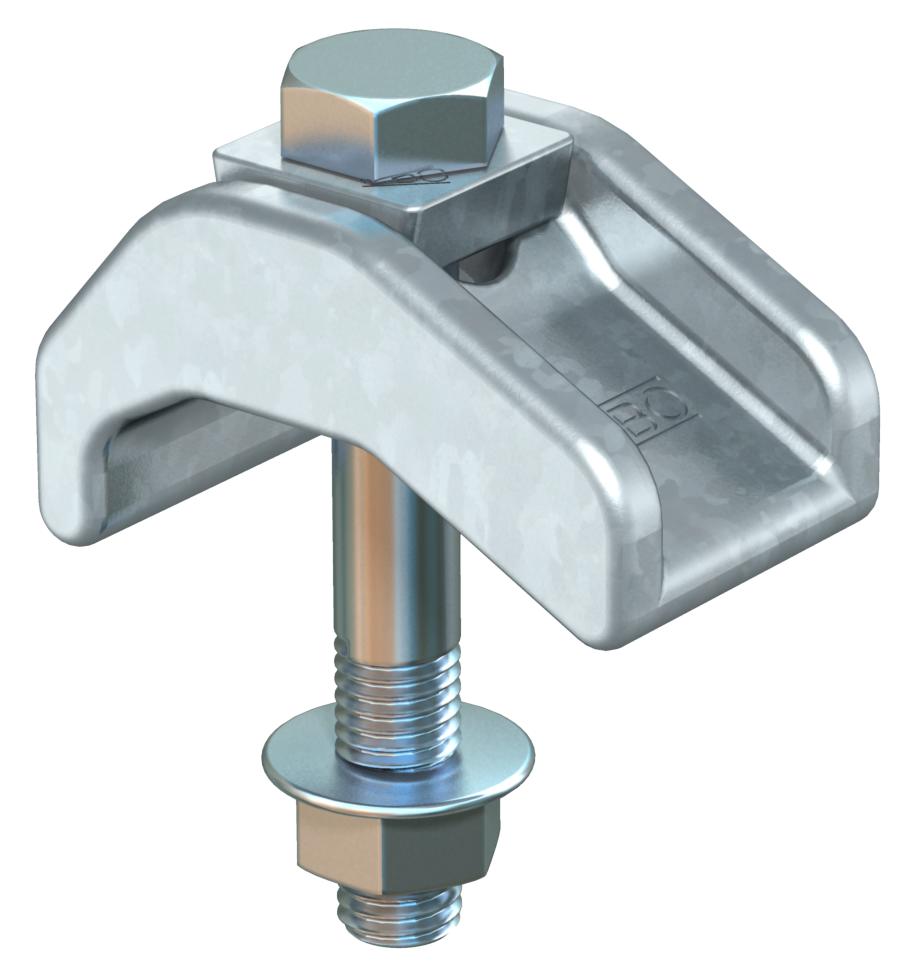

Chuck jaw, heavy duty TKS ZL

Item no. 6355798 | EAN 4012196677696

Item no. / Types	6355798 / TKS-S-30 ZL

Height	30 mm

F in kN	21 kN

Product description

Product description

Heavy-duty chuck jaw with hexagonal nut for direct fastening of structures to steel girders.

Technical data

Technical data

Bolt	M12 x 75
Dimension	M12x75
F in kN	21 kN
Height	30 mm

Material	Steel
Surface	Zinc slat
Thread metric	12

All types

All types

Types	Height	F in kN	Item no.	Quantity	SSU
TKS-S-30 ZL	30 mm	21 kN	6355798	Pair	10 Pair
