Chuck jaw, heavy duty TKH ZL
Item no. 6355805 | EAN 4012196677702
- Product description
-
Product description

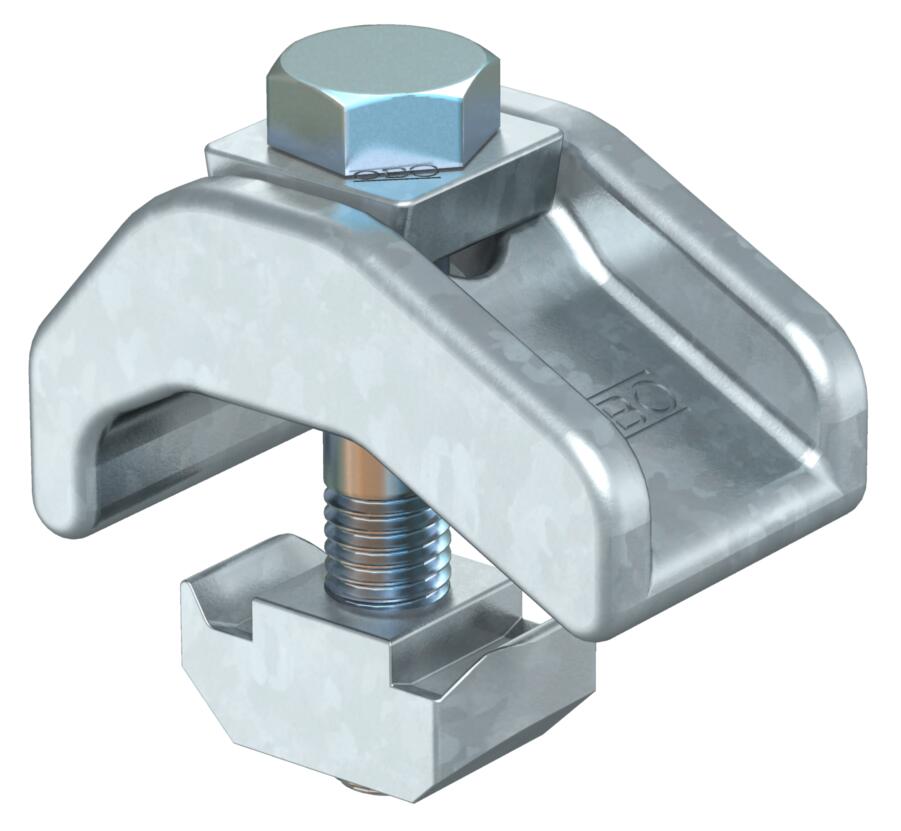

Heavy-duty chuck jaw with slide nut for fastening profile rails to steel girders.
-
- Technical data
-
Technical data

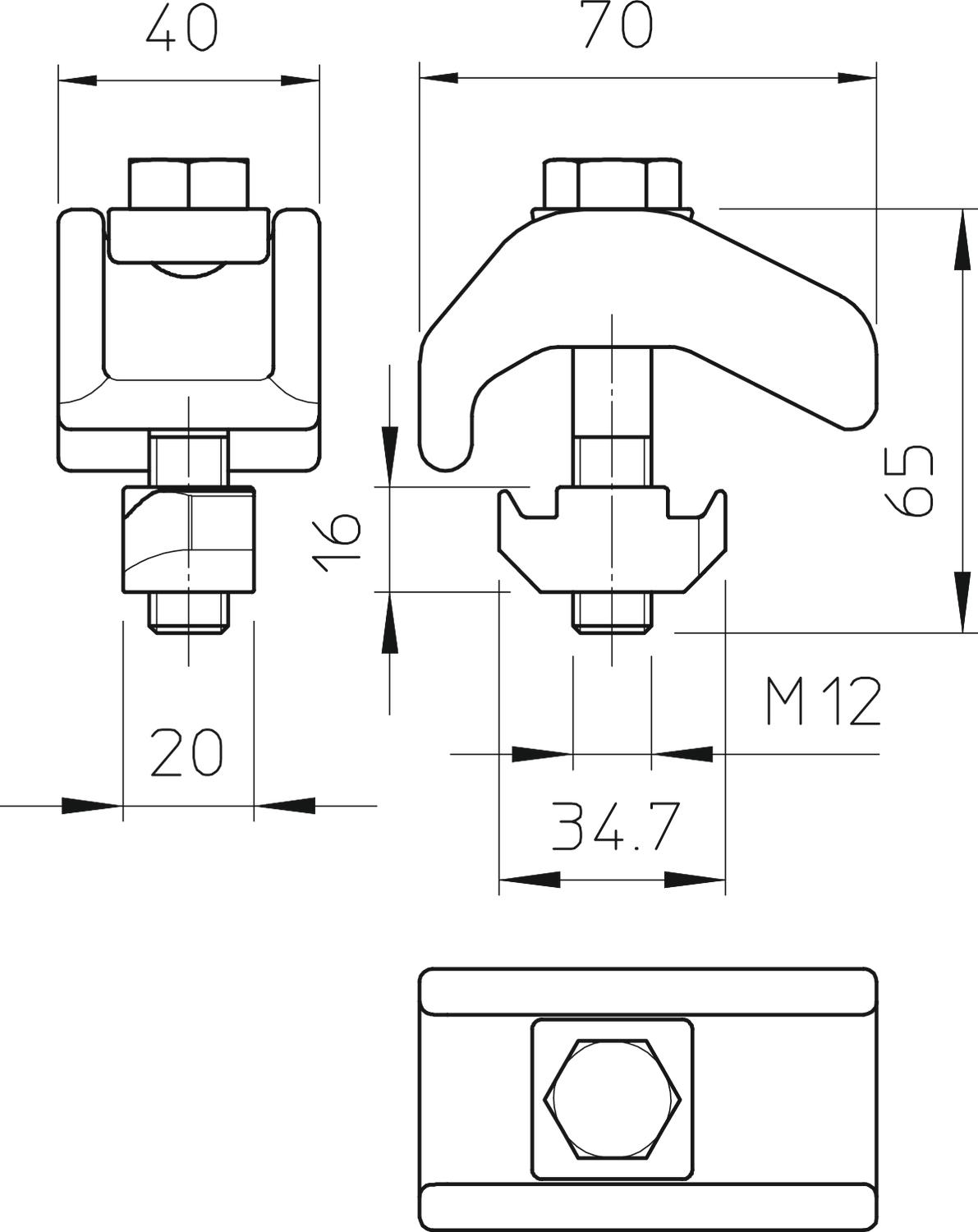

Bolt M12 x 65 Dimension M12x65 F in kN 21 kN Height 30 mm Material Steel Surface Zinc slat Thread metric 12 - All types
- Downloads
-
Data sheet TKH-S-30 ZL / 6355805 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity TKH-S-30 ZL / 6355805 , 0.11MB , pdfUK Declaration of Conformity TKH-S-30 ZL / 6355805 , 0.14MB , pdfREACH Declaration of conformity TKH-S-30 ZL / 6355805 , 0.12MB , pdfRoHS Declaration of conformity TKH-S-30 ZL / 6355805 , 0.12MB , pdfMounting instructions Mounting instructions, clamp fastening , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
