Product description

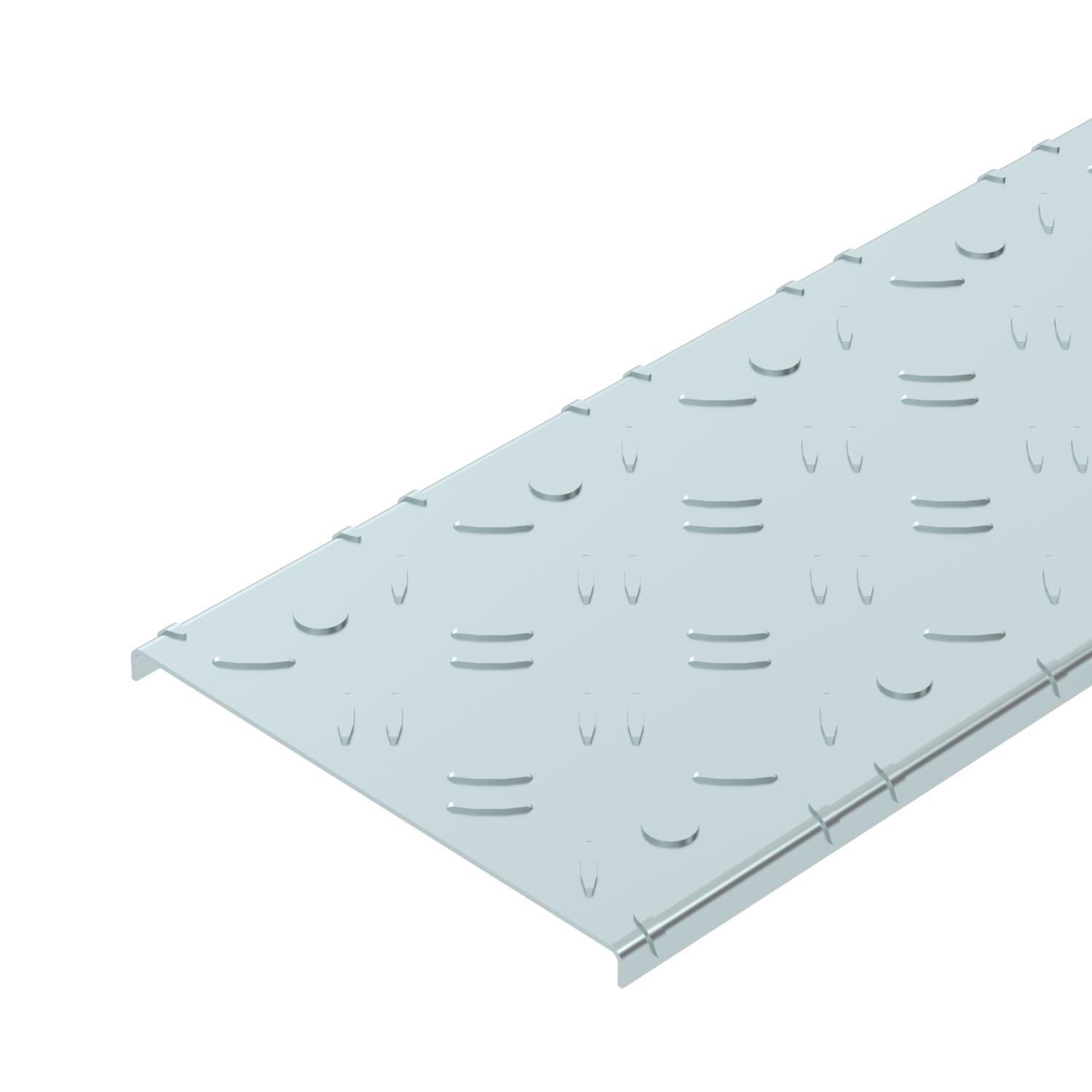

Chequer plate cover for the walkable cable tray system, type BKR.
The cover thickness is comprised of 2.0 mm strip-galvanised sheet steel and a 1.3 mm chequer height.
Pre-marked break-out openings at a spacing of 100 mm allow retroinstallation of a turn buckle.
- Technical data
-
Technical data
Dimension 200x3000 Dimension b 50 mm Dimension B 200 mm Dimension L 3000 mm Fastening type On top Height 13 mm Length 3000 mm Maintain electrical functions no Material Steel Plate thickness 3,3 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanized Width 200 mm - All types
