Product description

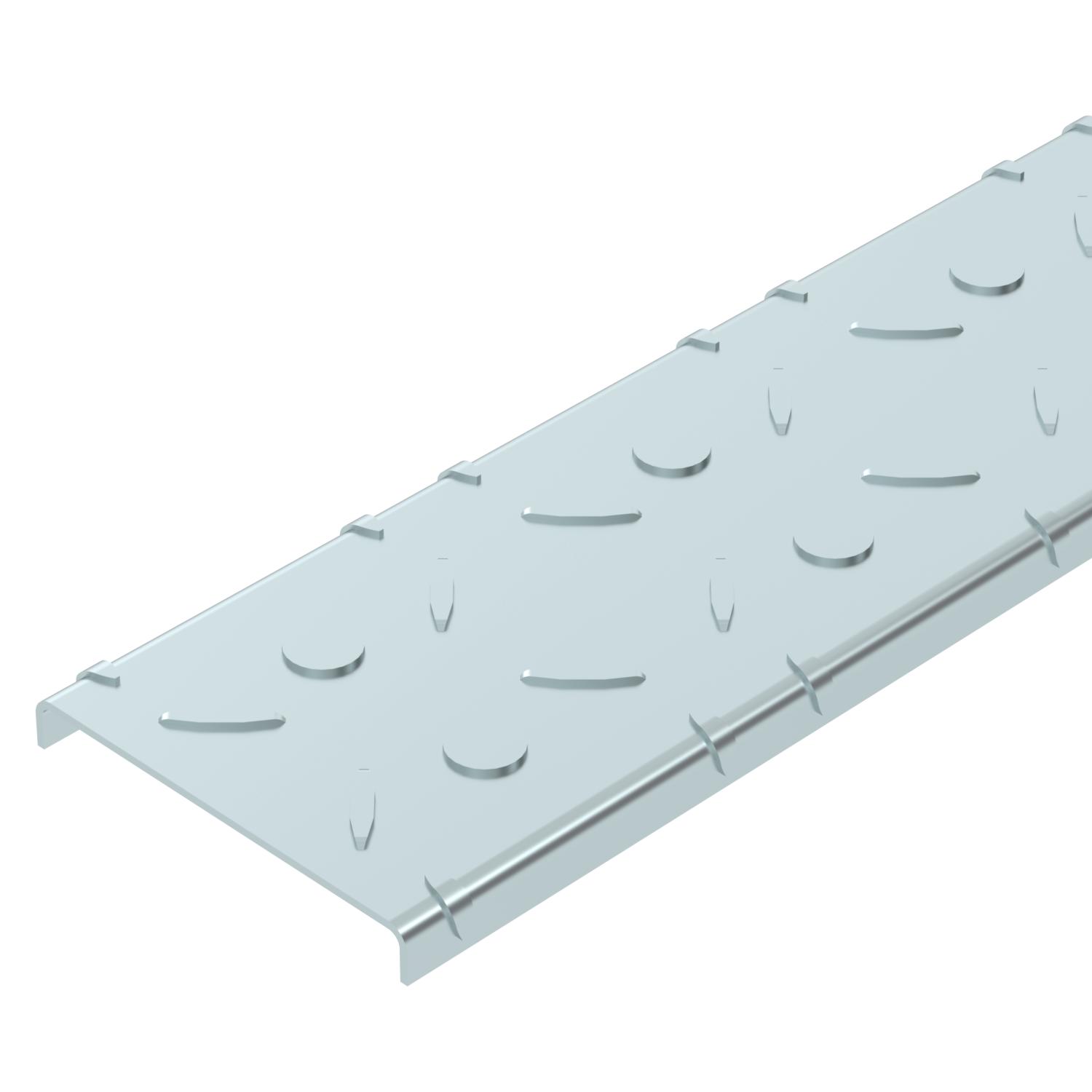

Chequer plate cover for the walkable cable tray system, type BKR.
The cover thickness is comprised of 2.0 mm strip-galvanised sheet steel and a 1.3 mm chequer height.
Pre-marked break-out openings at a spacing of 100 mm allow retroinstallation of a turn buckle.
- Technical data
-
Technical data
Dimension 100x3000 Dimension b 50 mm Dimension B 100 mm Dimension L 3000 mm Fastening type On top Height 13 mm Length 3000 mm Maintain electrical functions no Material Steel Plate thickness 3,3 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanized Width 100 mm - All types
- Downloads
-
Data sheet DBKR 100 FS / 6049119 , 0.16MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DBKR 100 FS / 6049119 , 0.10MB , pdfREACH Declaration of conformity DBKR 100 FS / 6049119 , 0.12MB , pdfRoHS Declaration of conformity DBKR 100 FS / 6049119 , 0.12MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Mercedes Benz , 4.15MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdfMounting instructions BKRS Begehbare Kabelrinnensysteme , 5.36MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
