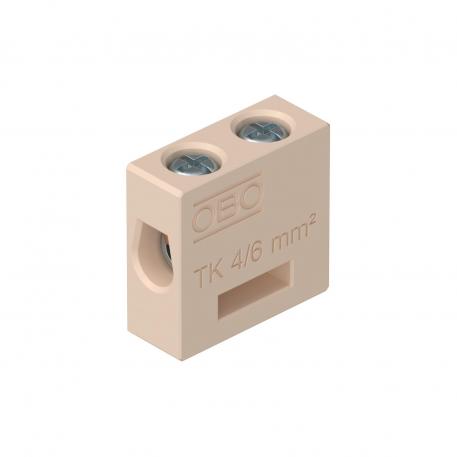

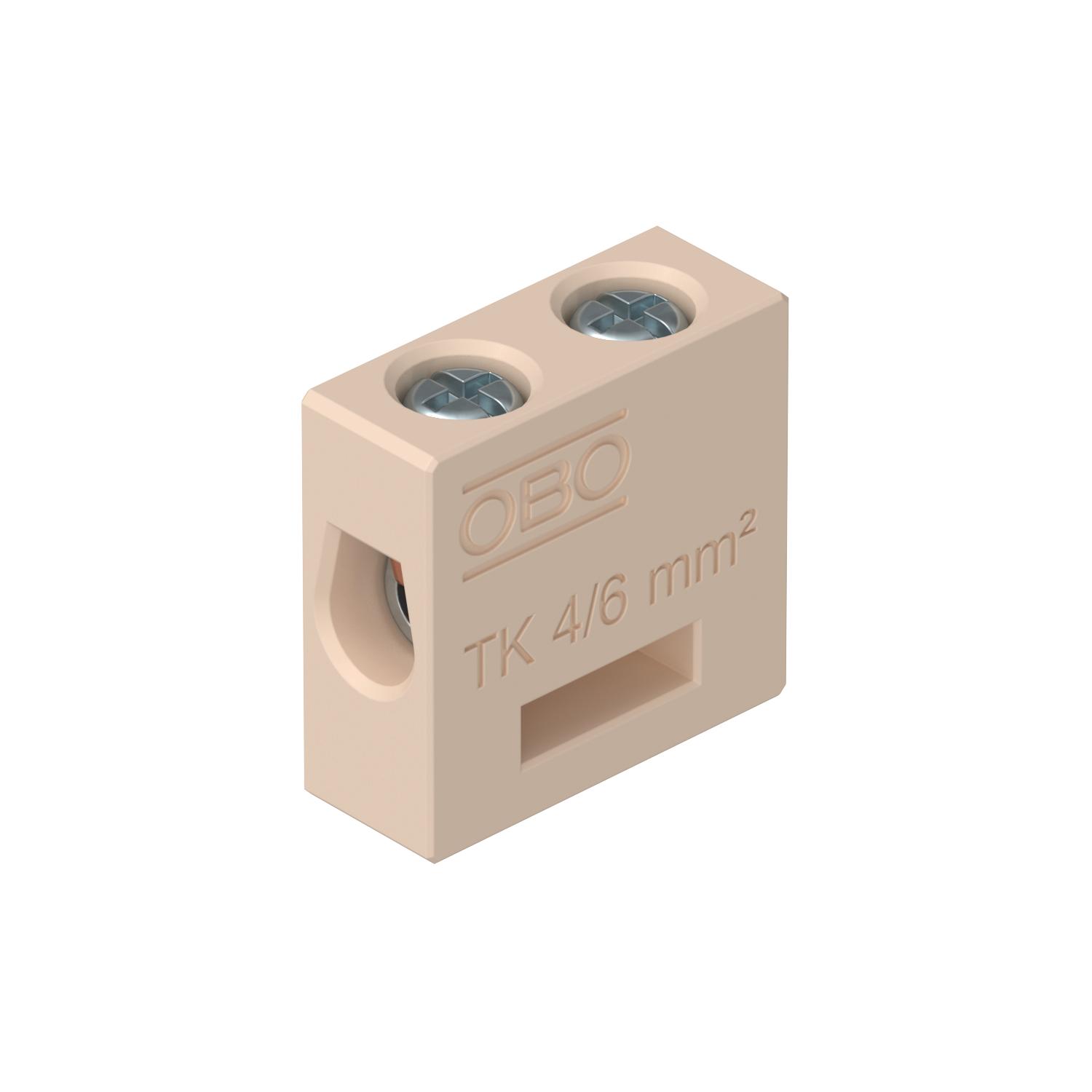

Ceramic terminal

Item no. / Types

No. of terminals	2

Nominal cross-section, min.

Nominal cross-section, max.

Nominal voltage

Product description

Product description

High-temperature-resistant ceramic terminal for refitting of the FireBox T series. Tested according to DIN EN 60998-2-1:2004.

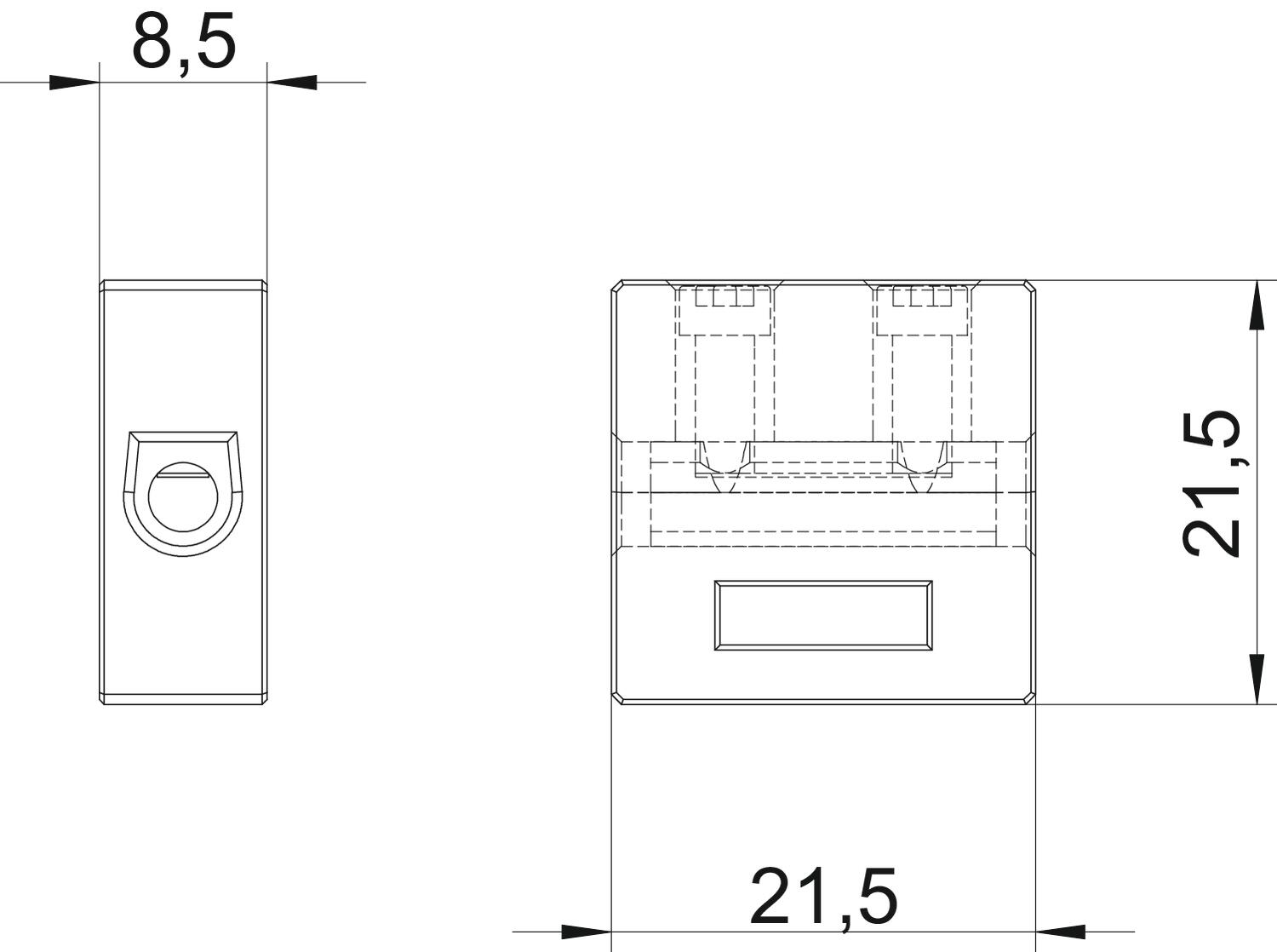

Technical data

Closing plate required	no
Connectable conductor cross-section, single-wire, min.	4 mm²
Connection position	Side
Dimension	4 mm²
Explosion-tested version	no
Height	21,5 mm
Insulation material	Ceramic
Length	8,5 mm
No. of terminals	2
Nominal cross-section, max.	4 mm²

Nominal cross-section, min.	0,5 mm²
Nominal current	32 A
Nominal voltage	400 V
Number of screwless terminals per pole	2
Permitted temperature range, min.	250 °C
Pole number	1
Transparent	no
Version of electrical connection 1	Screw connection
Version of electrical connection 2	Screw connection
Width	21,5 mm

All types

Types	No. of terminals	Nominal cross-section, min.	Nominal cross-section, max.	Nominal voltage	Item no.	Quantity	SSU
TK 04	2	0.5 mm²	4 mm²	400 V	7205700	piece	5 piece
TK 06	2	6 mm²	-	250 V	7205702	piece	5 piece
TK 10	2	10 mm²	-	250 V	7205704	piece	5 piece
TK 16	2	16 mm²	-	400 V	7205706	piece	5 piece
