Ceiling hook
Item no. 3453820 | EAN 4012195513315
- Product description
-
Product description

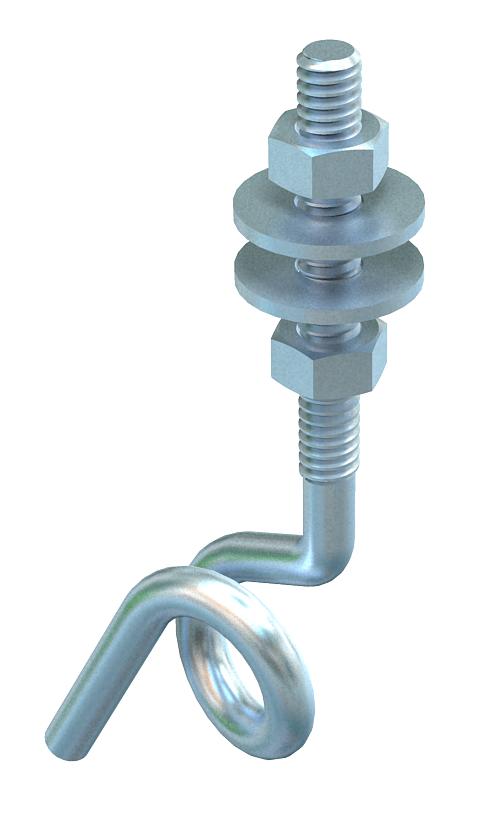

Tightly wound ceiling hook. Including two large washers Ø18 mm and M6 nuts.
-
- Technical data
-
Technical data
Breaking load 1 kN Dimension M6x70mm hook diameter 13 mm Material Steel Material diameter 6 mm Plastic-covered no Surface Electrogalvanized Thread M6 Thread length 40 mm Washer Ø 18 mm Dimensions

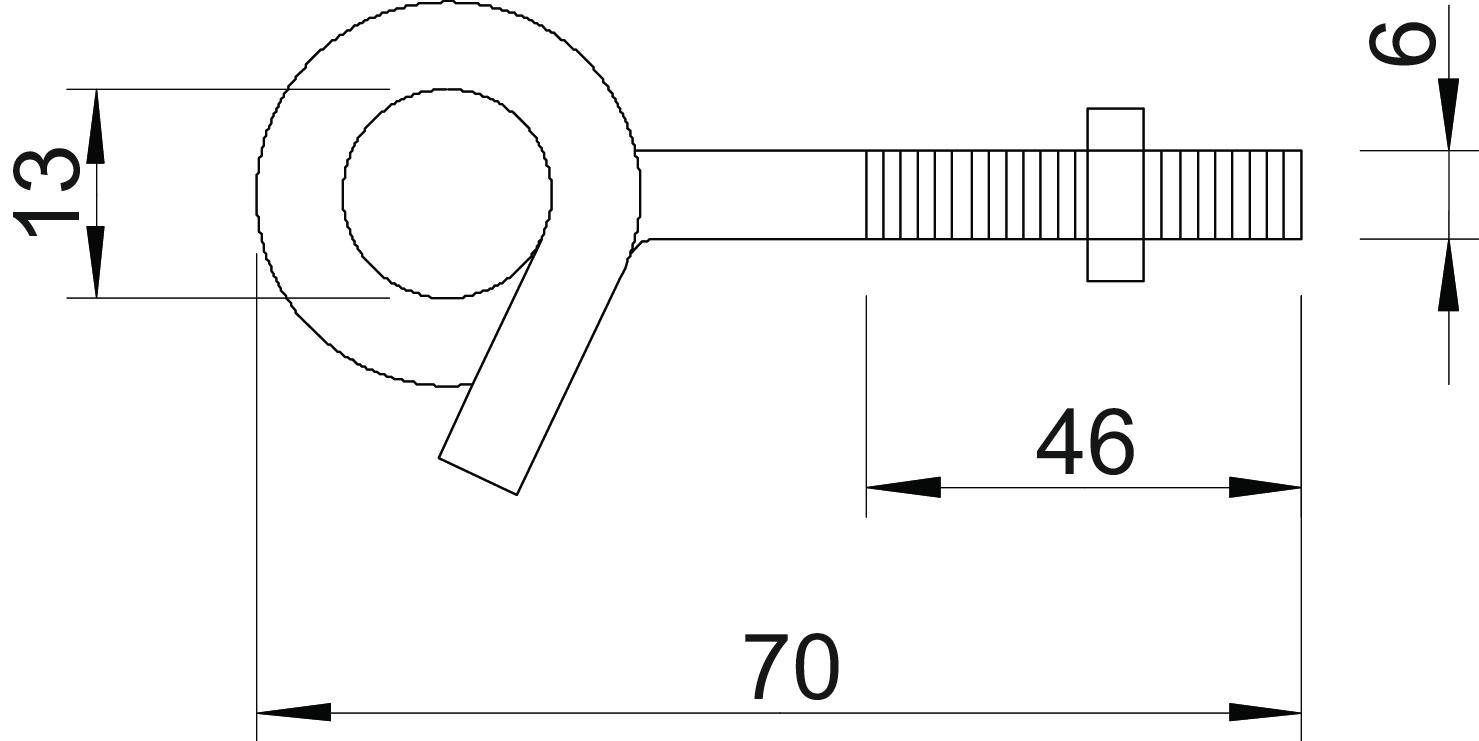

Dimension d 6 mm Dimension d Ø 13 mm Dimension L 70 mm Dimension L1 46 mm Length 70 mm - All types
- Downloads
-
Data sheet 948 TG6 / 3453820 , 0.15MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity 948 TG6 / 3453820 , 0.75MB , pdfREACH Declaration of conformity 948 TG6 / 3453820 , 0.12MB , pdfRoHS Declaration of conformity 948 TG6 / 3453820 , 0.12MB , pdf
