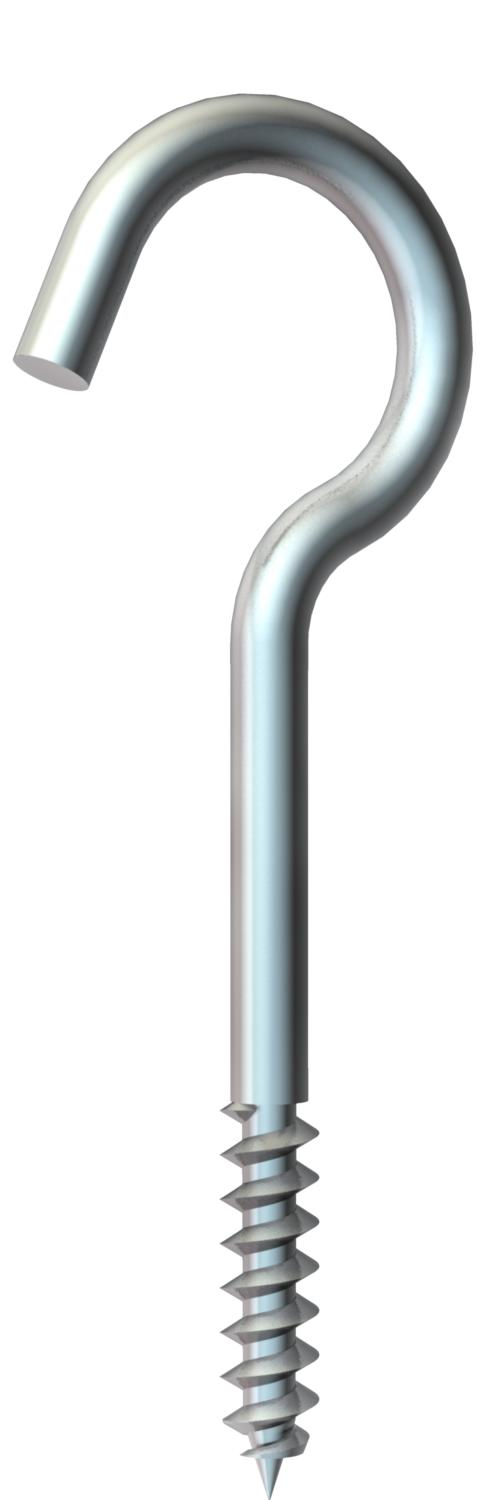

Ceiling hook

Item no. 3450058 | EAN 4012195304333

Product description

Product description

Ceiling hook with rolled wood screw thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 0,15 kN

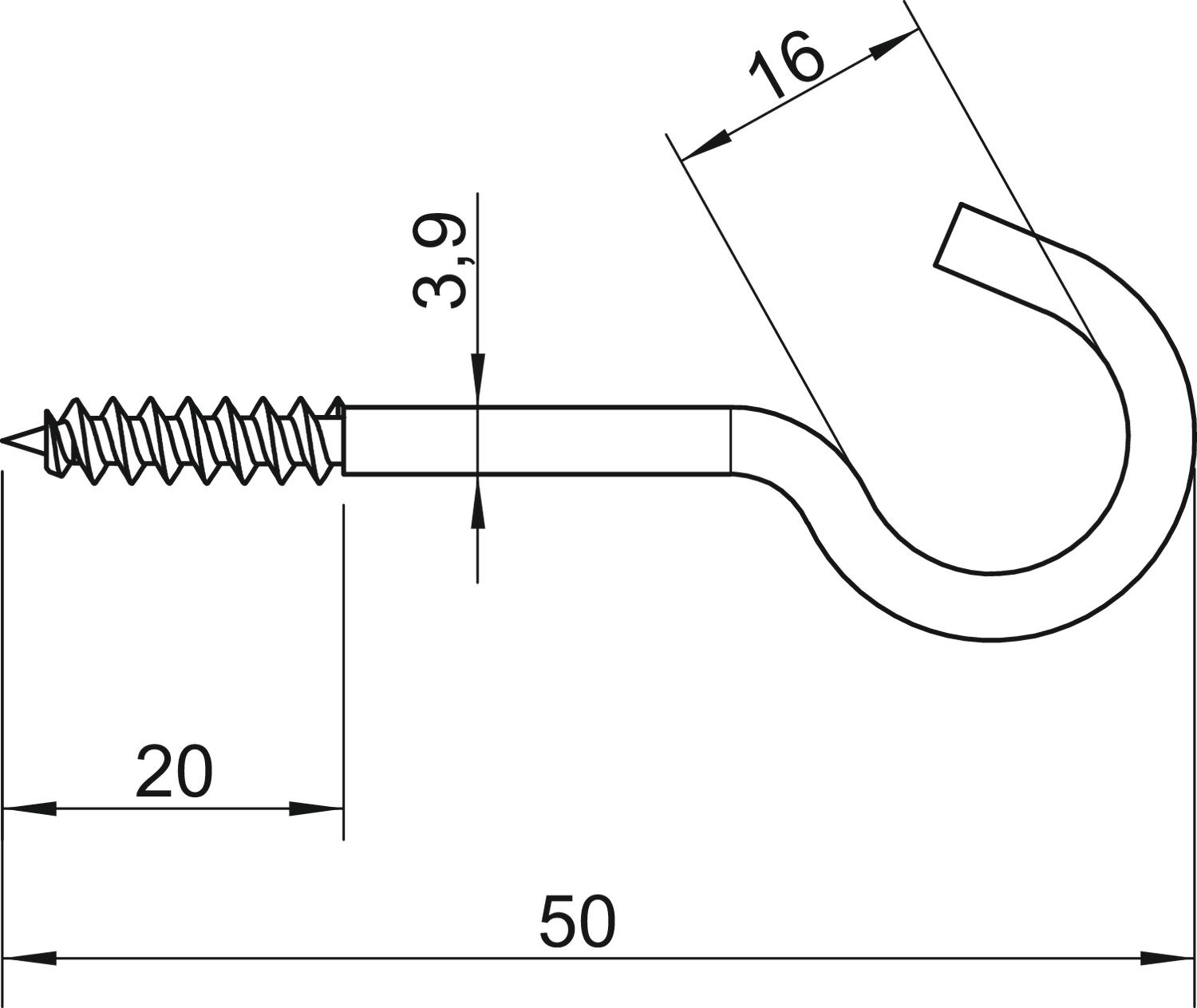

Dimension 3,9x50mm
Dimension L 50 mm
Dimension L1 20 mm
hook diameter 16 mm
Length 50 mm
Material Steel
Material diameter 3,9 mm
Plastic-covered no
Surface Electrogalvanized
Thread length 20 mm
All types

All types

Types Dimension L Breaking load Item no. Quantity SSU
915 3.9x50 G 50 mm 0.15 kN 3450058
100 piece
915 3.9x60 G 60 mm 0.15 kN 3450066
100 piece
915 3.9x70 G 70 mm 0.15 kN 3450074
100 piece
915 3.9x80 G 80 mm 0.15 kN 3450082
100 piece
915 3.9x90 G 90 mm 0.15 kN 3450090
100 piece
915 3.9x100 G 100 mm 0.15 kN 3450104
100 piece
915 4.3x120 G 120 mm 0.2 kN 3450120
100 piece
