Ceiling hook 120 | 0.2 |

morepic-1

morepic-2

Ceiling hook

Item no. 3450120 | EAN 4012195304692

Item no. / Types

Dimension L

Breaking load

Product description

Product description

Ceiling hook with rolled wood screw thread.

Technical data

Technical data

Breaking load	0,2 kN
Dimension	4,2x120mm
hook diameter	16 mm
Material	Steel

Material diameter	4,3 mm
Plastic-covered	no
Surface	Electrogalvanized
Thread length	24 mm

Dimensions

Dimension L	120 mm
Dimension L1	24 mm

Length	120 mm

All types

All types

Types	Dimension L	Breaking load	Item no.	Quantity	SSU
915 3.9x50 G	50 mm	0.15 kN	3450058	piece	100 piece
915 3.9x60 G	60 mm	0.15 kN	3450066	piece	100 piece
915 3.9x70 G	70 mm	0.15 kN	3450074	piece	100 piece
915 3.9x80 G	80 mm	0.15 kN	3450082	piece	100 piece
915 3.9x90 G	90 mm	0.15 kN	3450090	piece	100 piece
915 3.9x100 G	100 mm	0.15 kN	3450104	piece	100 piece
915 4.3x120 G	120 mm	0.2 kN	3450120	piece	100 piece

Downloads

Data sheet 915 4.3x120 G / 3450120 , 0.19MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

REACH Declaration of conformity 915 4.3x120 G / 3450120 , 0.12MB , pdf

Download

RoHS Declaration of conformity 915 4.3x120 G / 3450120 , 0.12MB , pdf

Download

Product graphic 915 4.3x120 G / 3450120, 29.08 kB, jpg

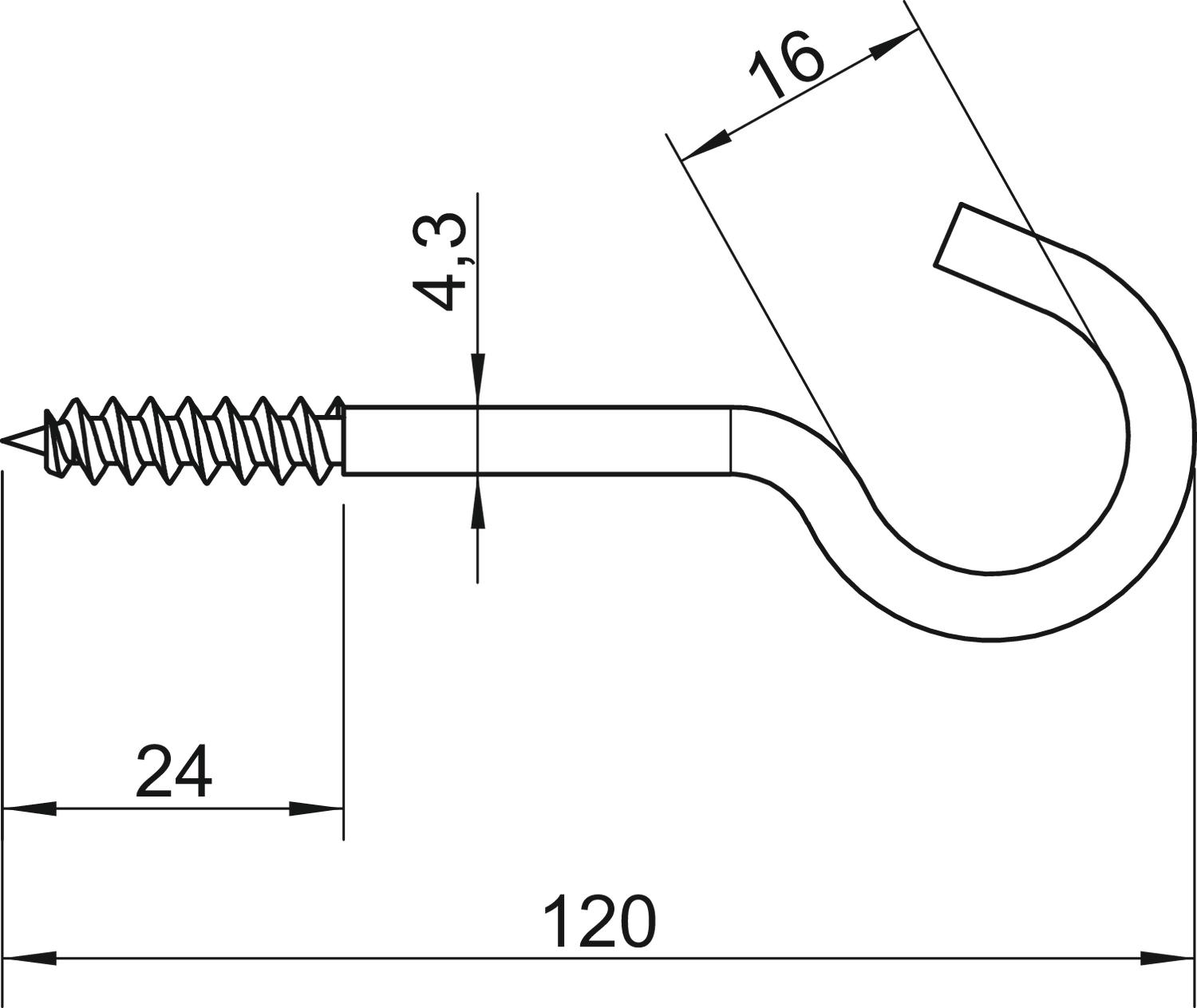

Scale drawing 915 4.3x120 G / 3450120, 72.12 kB, jpg

915 4.3x120 G / 3450120
