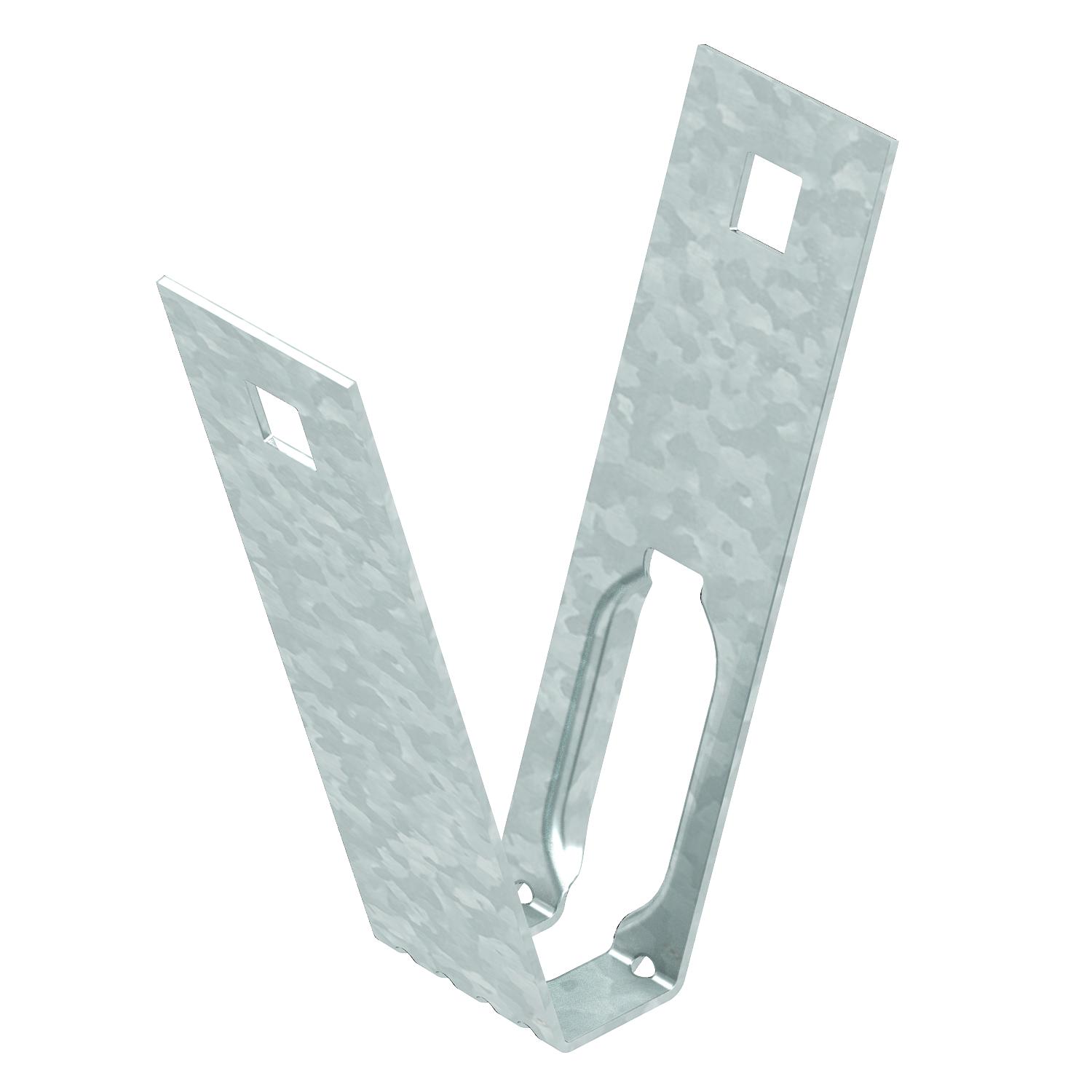

Ceiling bracket, trapezoidal FS
Item no. 6357506 | EAN 4012195523666
- Product description
-
Product description
Trapezoidal fastening for suspended mounting of cable support systems on standard trapezoidal ceilings.

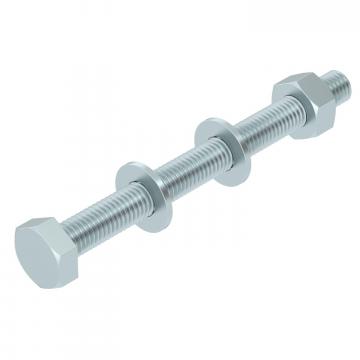

When using the holes provided, the trapezoidal fastening can be mounted onto a trapezoidal profile width of up to approx. 80 mm. Fastening takes place with the type TPB R lock or a hexagonal bolt of type SKS 10x110.
-
- Technical data
-
Technical data
Adjustable yes Dimension 100x116 F in kN 0,8 kN Height 116 mm Hinged no Length 36 mm Maintain electrical functions no Material Steel Material thickness 1,5 mm Rustproof steel, pickled no Suitable for metric threaded rod 10 Surface Strip galvanized Width 100 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU

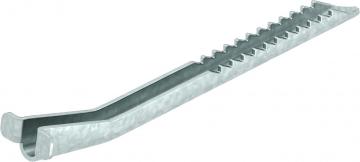

Splint for trapezoidal ceiling bracket FS
TPB R FS 6357536 20 piece - Downloads
-
