Note: This article is discontinued.
Cavity wall, double accessory socket
Item no. 2003422 | EAN 4012195032830
- Product description
-

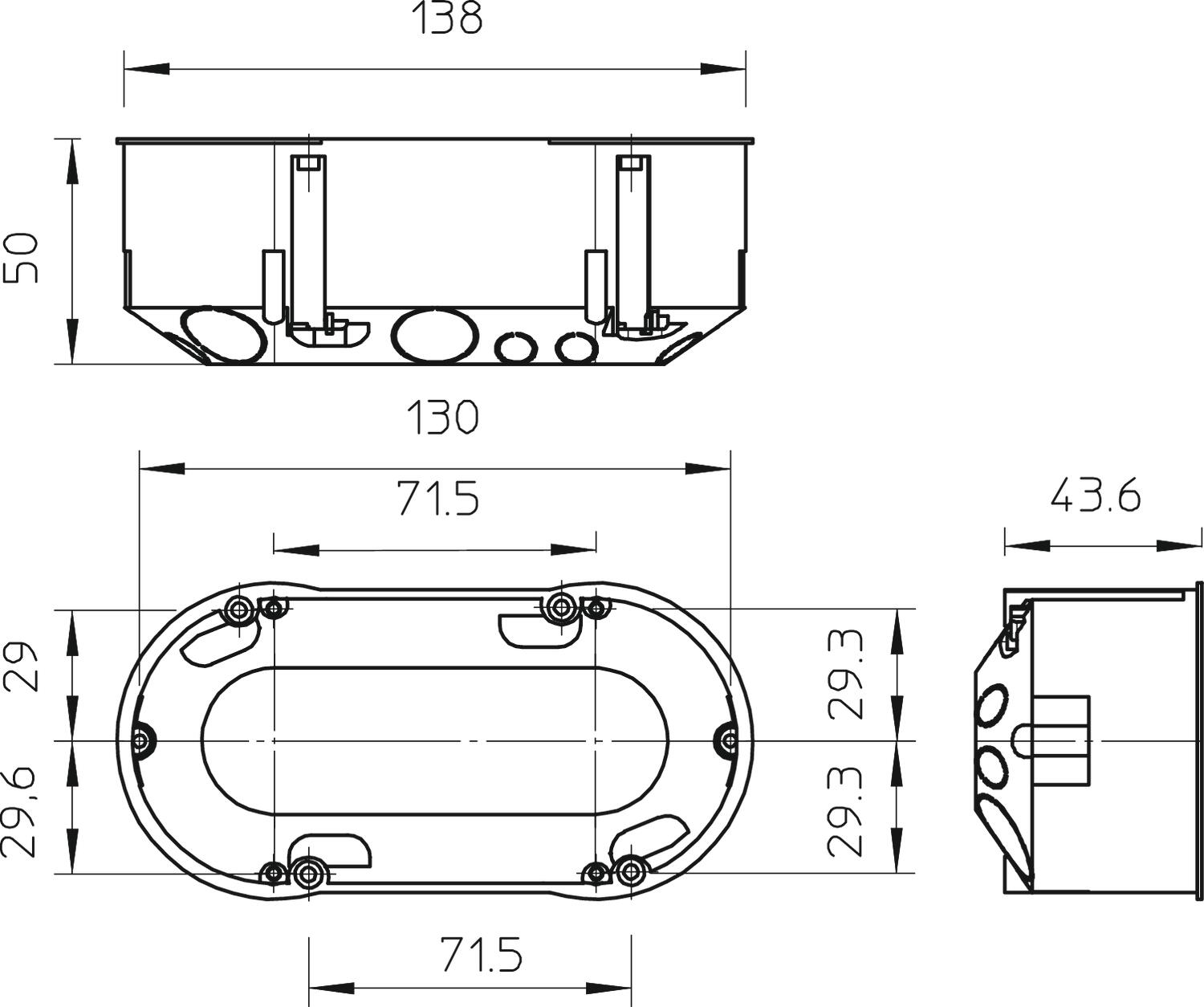

Product descriptionDouble device socket, for two service outlets or one double service outlet, with four device screws. Dimensions to DIN 49073-1, for plate thickness 7–35 mm. Standard combination spacing 71 mm,
14 break-out openings for NYM cables, data cables and pipes Ø 20 mm, IP30 protection rating.
According to IEC 60670-1, IEC 60670-22 and DIN 49073-1.
-
- Technical data
-
Technical data
Accessory screw clearance 60 mm Airtight no Colour Orange Cover Without Cover fastening Not applicable CO₂ Footprint (GWP) Cradle-to-Gate 0,165 kg CO₂e / 1 Piece Device fixing Screws , Diameter 68 mm Dimension 138x68x50 Entries 14 Entry from rear yes Equipment Without Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C Floor height, min. 50 mm for pipe diameter 20 mm Halogen-free yes Height 50 mm Impact-resistant no Length 138 mm Maintain electrical functions Without Material Polypropylene Max. Conductor cross-section 2,5 mm² Milling hole diameter 68 mm No. of entries 14 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 1,5 mm² Number of switch boxes 2 Pipe entries Ø 20 mm 1 Protection rating IP30 Rated voltage 400 V Sealable no Shape Oval Suitable for plate thickness, max. 35 mm Suitable for plate thickness, min. 7 mm Support Without Type of housing penetration Pre-marking Type of insertion… break-out openings for NYM cables, data cables and pipes Ø 20 mm Width 68 mm With bolts yes With nail strap no With screening no - All types
- Downloads
-
Data sheet HG 60 2 / 2003422 , 0.26MB , pdfEU declaration of conformity HG 60 2 / 2003422 , 0.13MB , pdfREACH Declaration of conformity HG 60 2 / 2003422 , 0.12MB , pdfRoHS Declaration of conformity HG 60 2 / 2003422 , 0.12MB , pdfLabel approval VDE symbol approval HG 60/2 , 0.12MB , pdf
