Note: This article is discontinued.

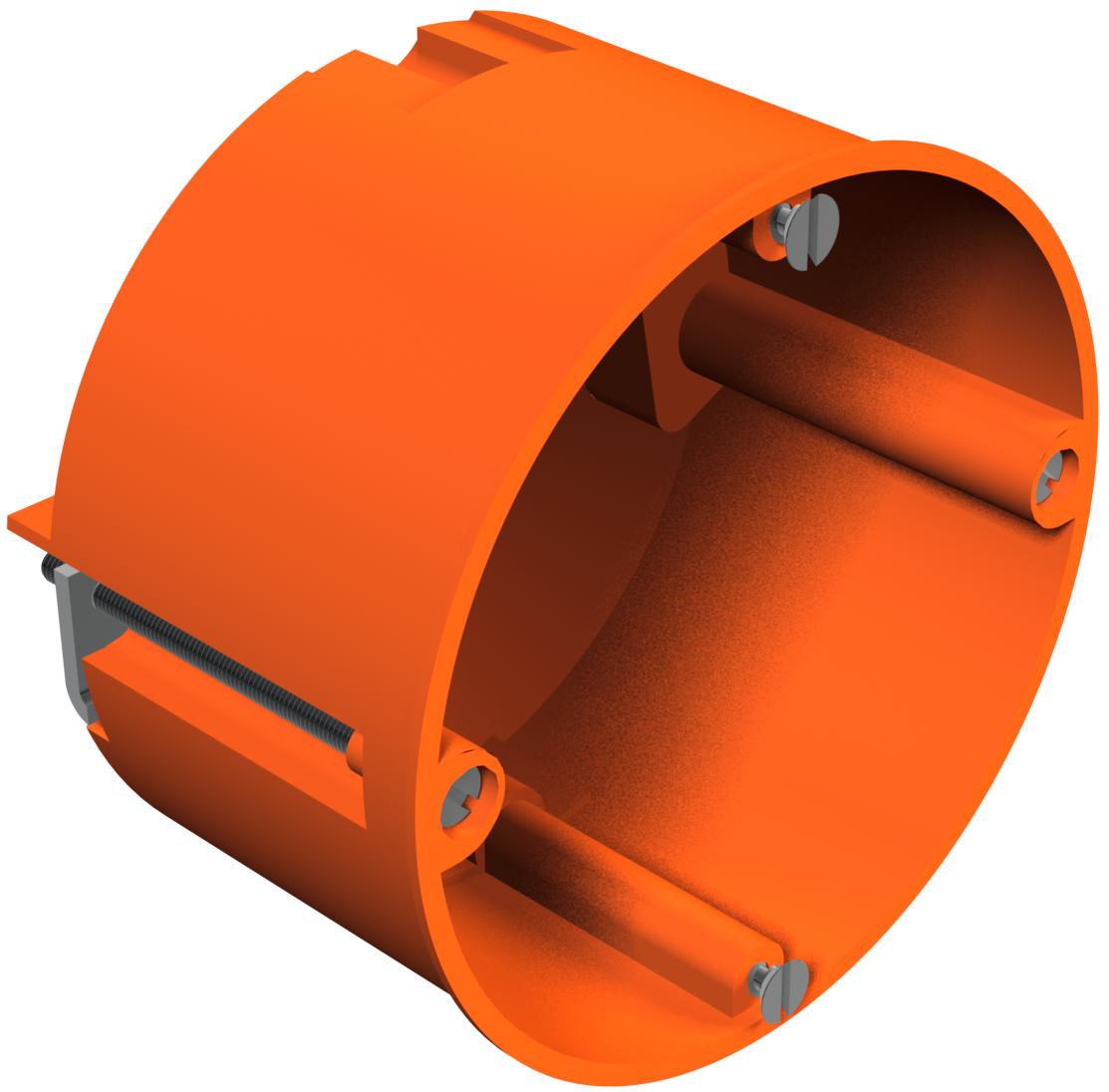

Cavity wall accessory socket

Item no. 2003414 | EAN 4012195032779

Item no. / Types	2003414 / HG 60

Height	47 mm

Diameter	68 mm

Milling hole diameter	68 mm

for pipe diameter	20 mm

No. of entries	8

Product description

Product description

Cavity wall accessory socket Dimensions to DIN 49073-1, for plate thickness 7–35 mm. Standard combination spacing 71 mm, option of through-wiring using connection supports when combining accessory sockets and accessory connection sockets, 8 break-out openings for NYM cables, data cables and pipes of Ø 20 mm. Accessory sockets can also be used as connection sockets in accordance with VDE 0606-1 with double screw fastening and screw-on cover, protection rating IP30. Twelve connection pieces included.
According to IEC 60670-1, IEC 60670-22 and DIN 49073-1.

Technical data

Technical data

Accessory screw clearance	60 mm
Airtight	no
Colour	Orange
Cover	Without
Cover fastening	Not applicable
CO₂ Footprint (GWP) Cradle-to-Gate	0,187 kg CO₂e / 1 Piece
Device fixing	Screws ,
Diameter	68 mm
Dimension	Ø68mm, H45mm
Entries	8
Entry from rear	yes
Equipment	Without
Flame-resistant	Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C
Floor height, min.	47 mm
for pipe diameter	20 mm
Halogen-free	yes
Height	47 mm
Impact-resistant	no
Maintain electrical functions	Without

Material	Polypropylene
Max. Conductor cross-section	2,5 mm²
Milling hole diameter	68 mm
No. of entries	8
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	1,5 mm²
Number of switch boxes	1
Protection rating	IP30
Rated voltage	400 V
Sealable	no
Shape	Round
Suitable for plate thickness, max.	35 mm
Suitable for plate thickness, min.	7 mm
Support	Without
Type of housing penetration	Sealing membrane
Type of insertion…	break-out openings for NYM cables, data cables and pipes Ø 20 mm
With bolts	yes
With nail strap	no
With screening	no
