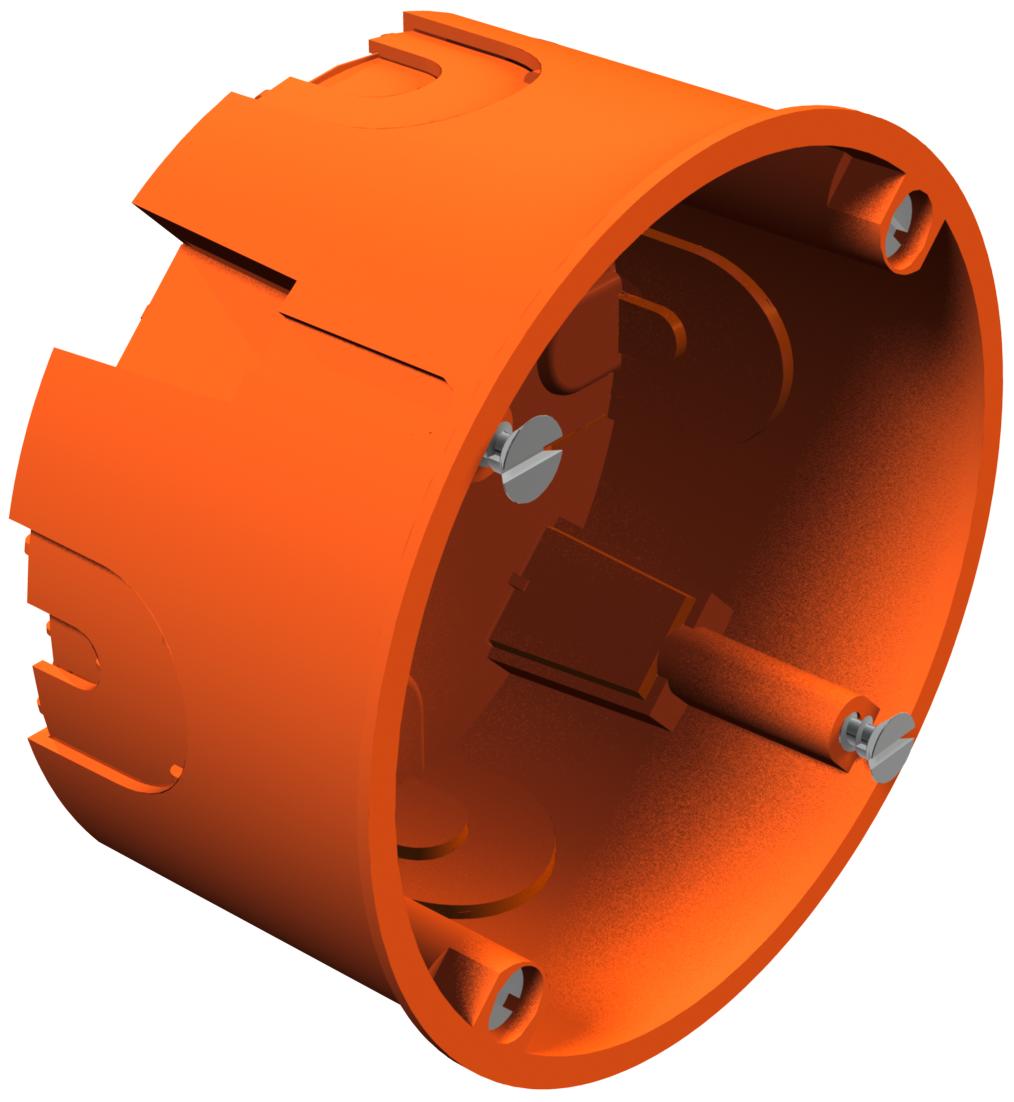

Product descriptionCavity wall device socket. Dimensions to DIN 49073-1, for plate thickness 7–35 mm. Standard combination spacing 71 mm, option for continuous wiring using connection support for combinations between device sockets and device connection sockets, 8 break-out openings for NYM cables, data cables and pipes Ø 20 mm, device sockets can also be used as connection sockets to VDE 0606-1 with double screw fastening and screw-on cover, protection rating IP20.
According to IEC 60670-1, IEC 60670-22 and DIN 49073-1.
- Technical data
-
Technical data
Accessory screw clearance 60 mm Airtight no Colour Orange Cover Without Cover fastening Not applicable CO₂ Footprint (GWP) Cradle-to-Gate 0,1758 kg CO₂e / 1 Piece Device fixing Screws , Diameter 68 mm Dimension Ø68mm, H35mm Entries 8 Entry from rear yes Equipment Without Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C Floor height, min. 35 mm for pipe diameter 20 mm Halogen-free yes Height 35 mm Impact-resistant yes Maintain electrical functions Without Material Polypropylene Max. Conductor cross-section 2,5 mm² Milling hole diameter 68 mm No. of entries 8 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 1,5 mm² Number of switch boxes 1 Protection rating IP20 Rated voltage 400 V Sealable no Shape Round Suitable for plate thickness, max. 25 mm Suitable for plate thickness, min. 7 mm Support Without Type of housing penetration Pre-marking Type of insertion… break-out openings for NYM cables, data cables and pipes Ø 20 mm With bolts yes With nail strap no With screening no - All types
- Downloads
-
Data sheet HG 60-35 / 2003426 , 0.32MB , pdfEU declaration of conformity HG 60-35 / 2003426 , 0.13MB , pdfREACH Declaration of conformity HG 60-35 / 2003426 , 0.12MB , pdfRoHS Declaration of conformity HG 60-35 / 2003426 , 0.12MB , pdfLabel approval VDE symbol approval HG 60-35, HG 60-35 MW , 0.12MB , pdf
