Cap nut cable gland, PG thread, nickel-plated | | Pg 21 | no |

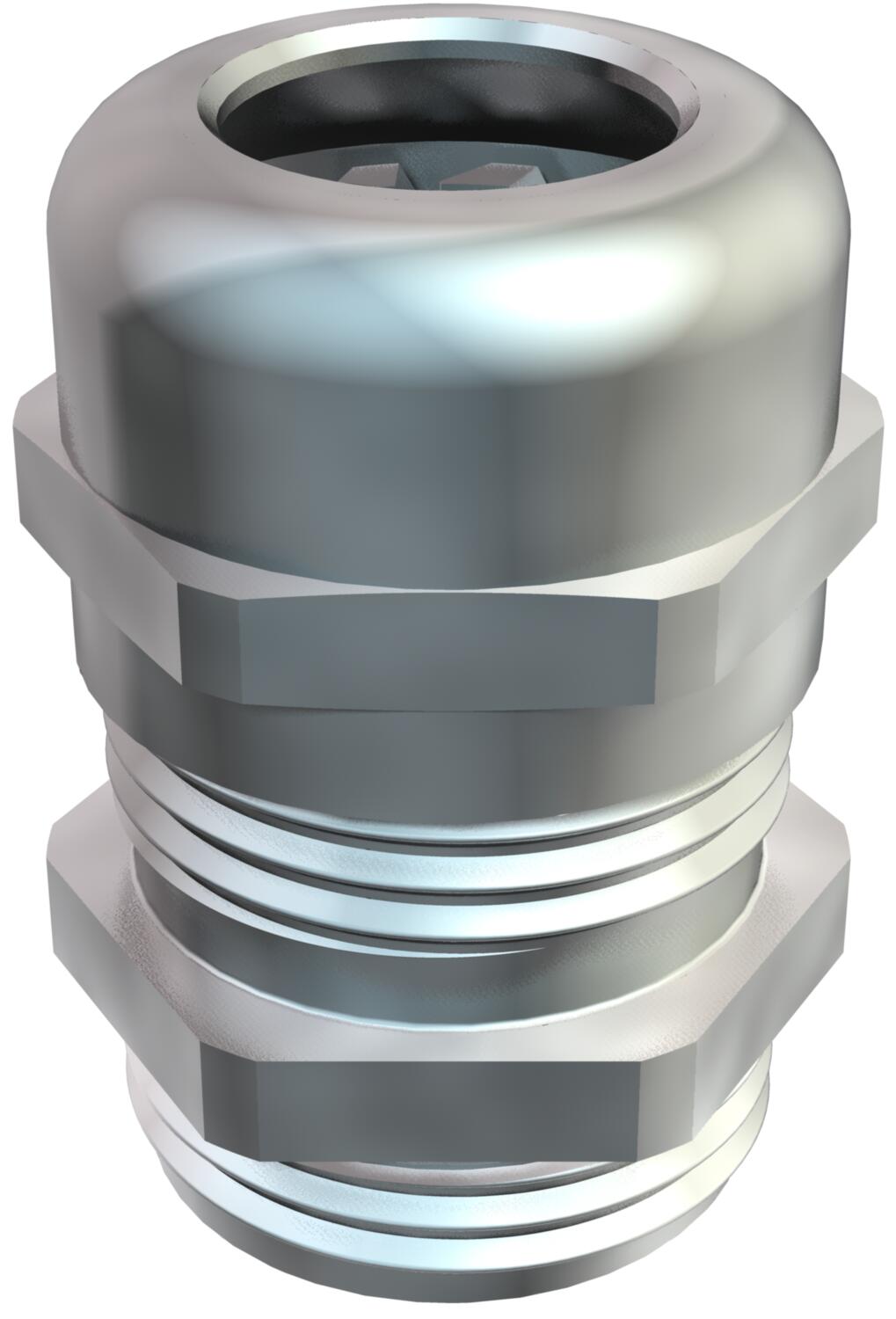

Cap nut cable gland, PG thread, nickel-plated

Item no. 2085666 | EAN 4012195448631

Item no. / Types

Thread

Sealing insert, multiple	no

Product description

Product description

Cable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with Pg connection thread to DIN 40430, polyamide terminal insert, sealing ring of chloroprene/nitrile rubber, with pre-mounted O ring on the connection thread.

Protection rating IP 68 at 5 bar: 1 hr, tested to DIN EN 62444.

"Normal" connection thread length, according to DIN 46320.

* Prices according to DEL notation.

Technical data

Technical data

Bend protection	no

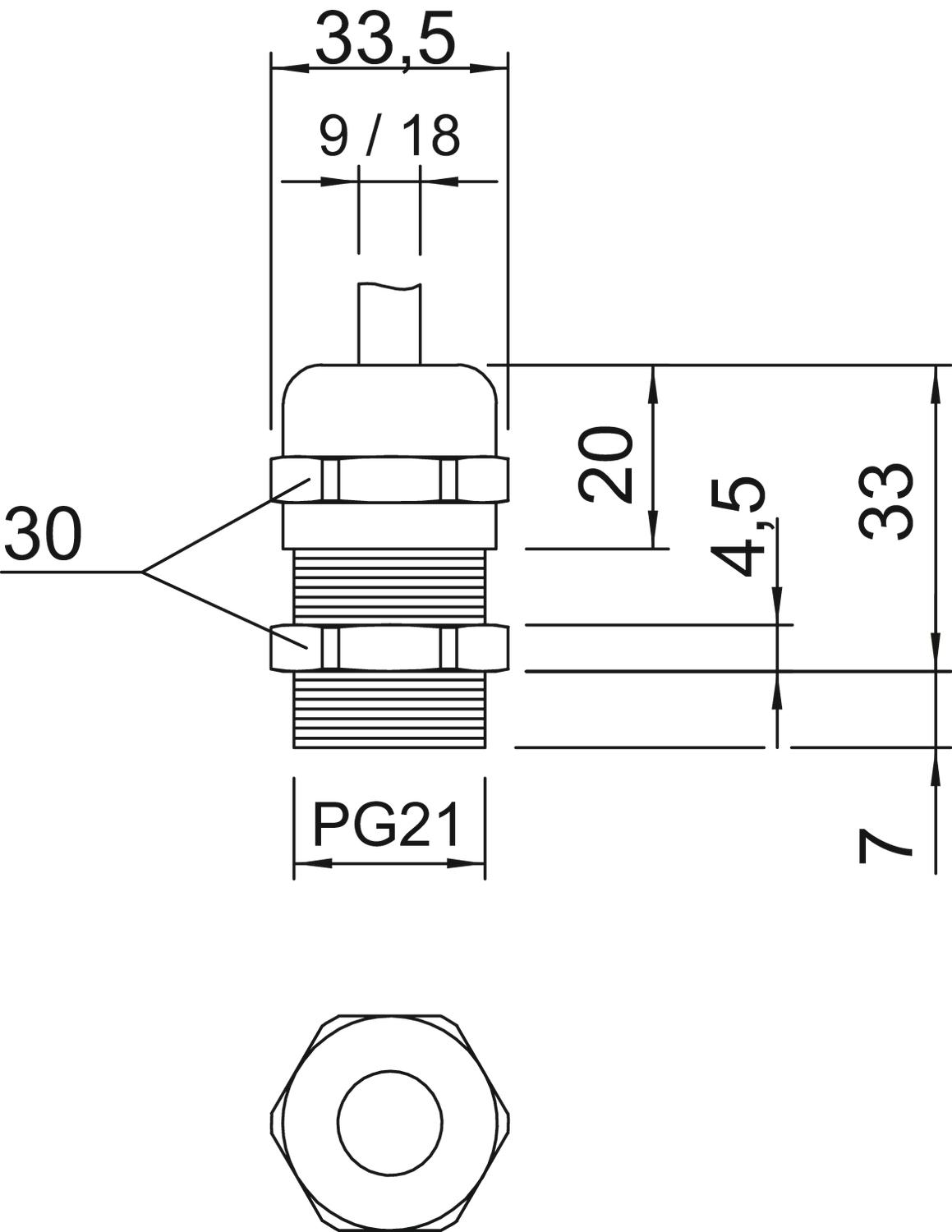

Dimension	PG21
Dimension E	33,5 mm
Dimension L max.	33 mm
Dimension L1	7 mm
Dimension L2	4,5 mm
Dimension L3	20 mm
explosion-proof	no
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	no
Impact-resistant	no
Material	Brass
Nominal thread size	21

Permitted temperature range, max.	100 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	18 mm
Sealing area D, min.	9 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Surface	Nickel-plated
Thread	Pg 21
Thread length	7 mm
Thread type	PG
Type of seal	Sealing ring
Version for	Straight
WAF	30
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Item no.	Quantity	SSU
V-TEC PG7 MS	Pg 7	no	2085607	piece	50 piece
V-TEC PG9 MS	Pg 9	no	2085615	piece	50 piece
V-TEC PG11 MS	Pg 11	no	2085623	piece	50 piece
V-TEC PG13 MS	Pg 13,5	no	2085631	piece	50 piece
V-TEC PG16 MS	Pg 16	no	2085658	piece	25 piece
V-TEC PG21 MS	Pg 21	no	2085666	piece	25 piece
V-TEC PG29 MS	Pg 29	no	2085674	piece	20 piece
V-TEC PG36 MS	Pg 36	no	2085682	piece	10 piece
V-TEC PG42 MS	Pg 42	no	2085690	piece	5 piece
V-TEC PG48 MS	Pg 48	no	2085704	piece	5 piece
