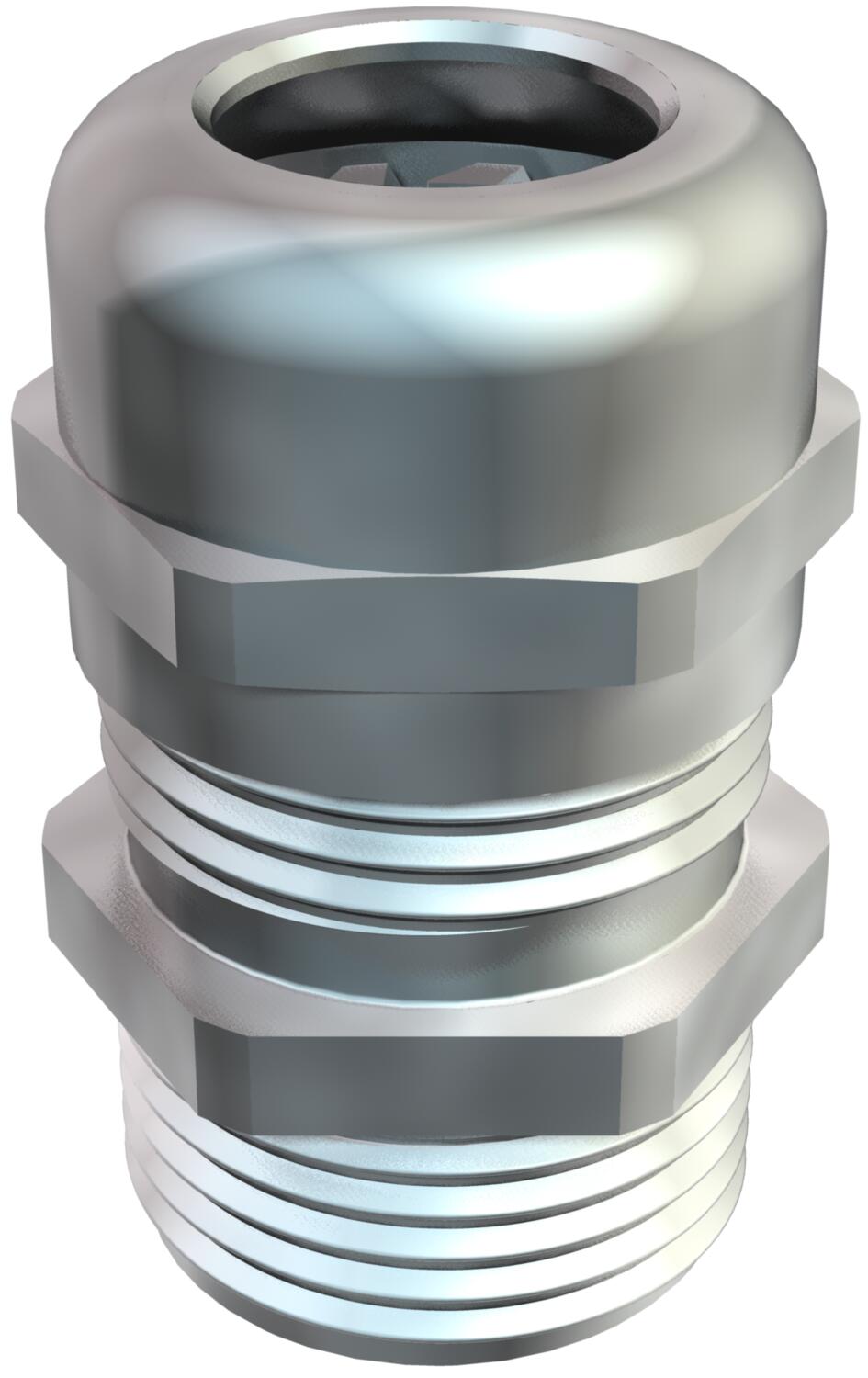

Cap nut cable gland, PG thread, long, nickel-plated
Item no. 2085755 | EAN 4012195840916
- Product description
-
Product description
Cable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with long Pg connection thread to DIN 40430, for thicker housing wall thicknesses in connection with locknut.
Polyamide terminal insert.
Sealing ring of chloroprene/nitrile rubber.
O ring pre-mounted on connection thread.
Protection rating IP 68 at 5 bar: 1 hr.
Tested to DIN EN 62444.
With long connection thread.
* Prices according to DEL notation.
-
- Technical data
-
Technical data

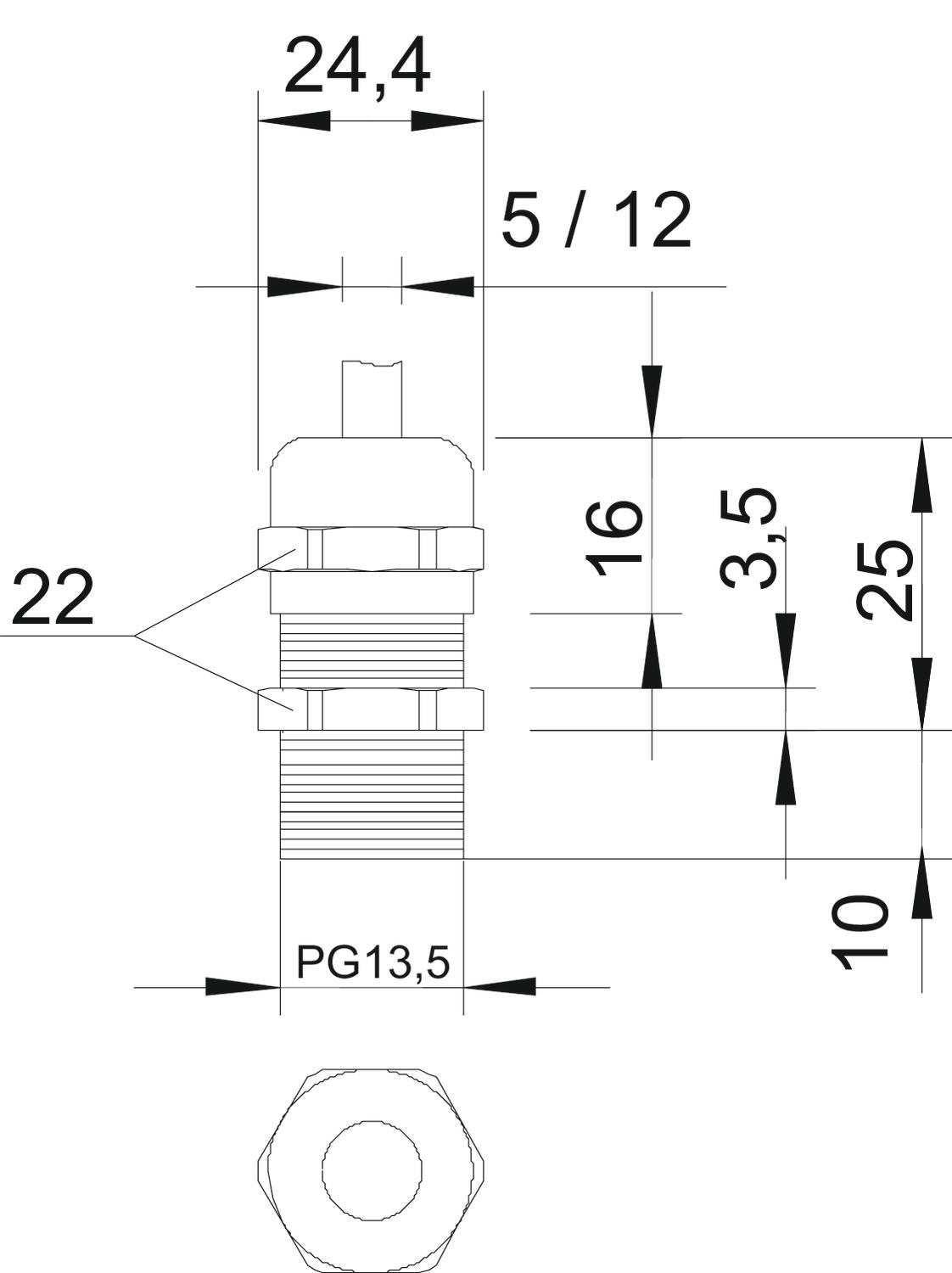

Bend protection no Dimension PG13,5 Dimension E 24,4 mm Dimension L max. 25 mm Dimension L1 10 mm Dimension L2 3,5 mm Dimension L3 16 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free no Impact-resistant no Material Brass Nominal thread size 13,5 Permitted temperature range, max. 100 °C Permitted temperature range, min. -20 °C Protection rating IP68 Sealing area D, max. 12 mm Sealing area D, min. 5 mm Sealing insert, multiple no Splittable gland no Strain relief option yes Surface Nickel-plated Thread Pg 13,5 Thread length 10 mm Thread type PG Type of seal Sealing ring Version for Straight WAF 22 With locknut no - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Locknut, PG thread
169 MS PG13.5 2091135 100 piece - Downloads
-
