Cap nut cable gland, metric thread, silver grey, long, nickel-plated | | M75 x 1,5 | no |

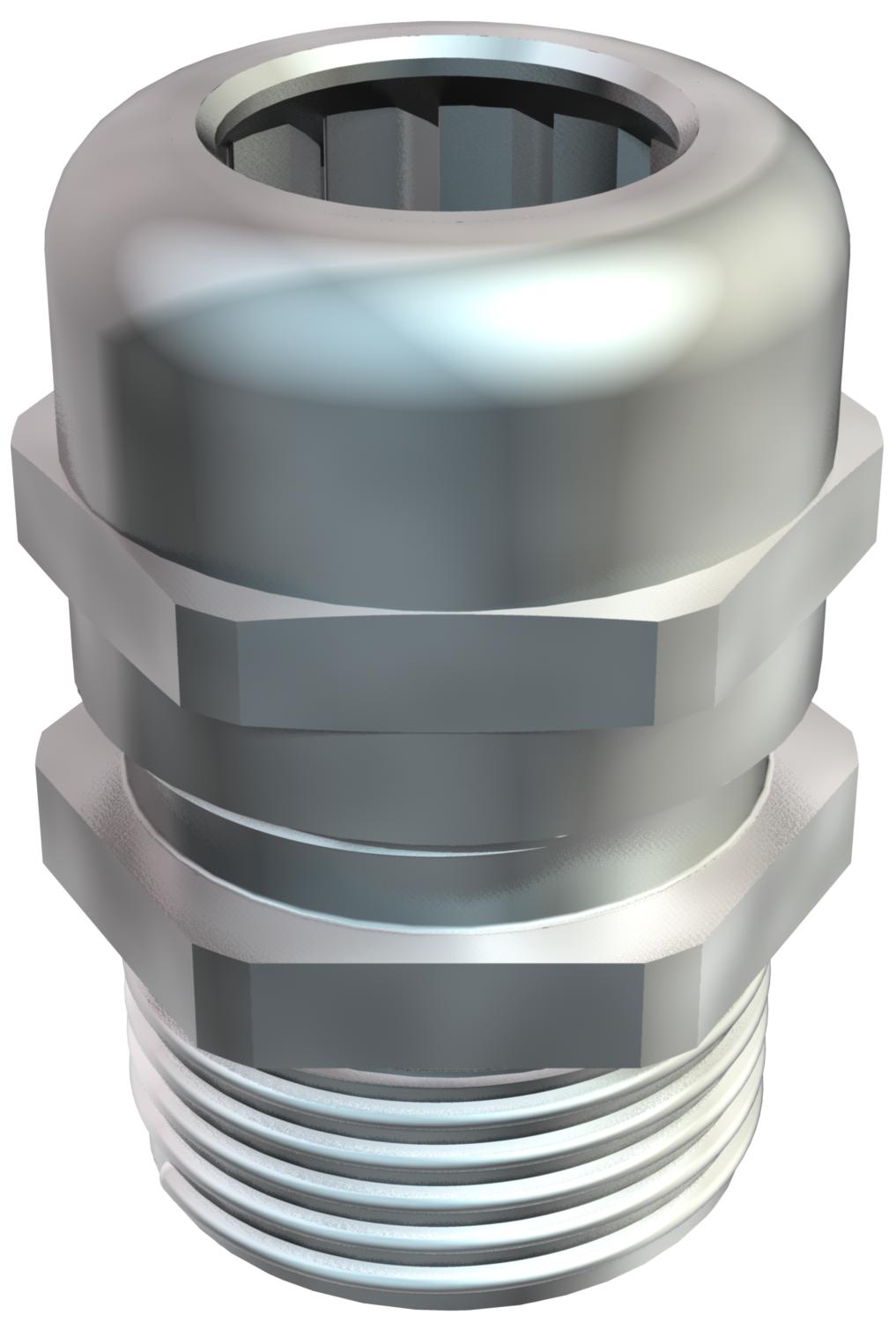

Cap nut cable gland, metric thread, silver grey, long, nickel-plated

Item no. 2086159 | EAN 4012195858263

Item no. / Types

Thread

Sealing insert, multiple	no

Product description

Product description

With metric connecting thread to IEC 423, robust cap nut cable gland with large sealing area. Strain relief, wringing protection and tightness over the whole clamping area. For thicker housing wall thicknesses in conjunction with locknuts. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted sealing ring on connection thread, protection rating IP 68 at 5 bar for 1 hr.

With long connection thread.

* Prices according to DEL notation.

Technical data

Technical data

Bend protection	no

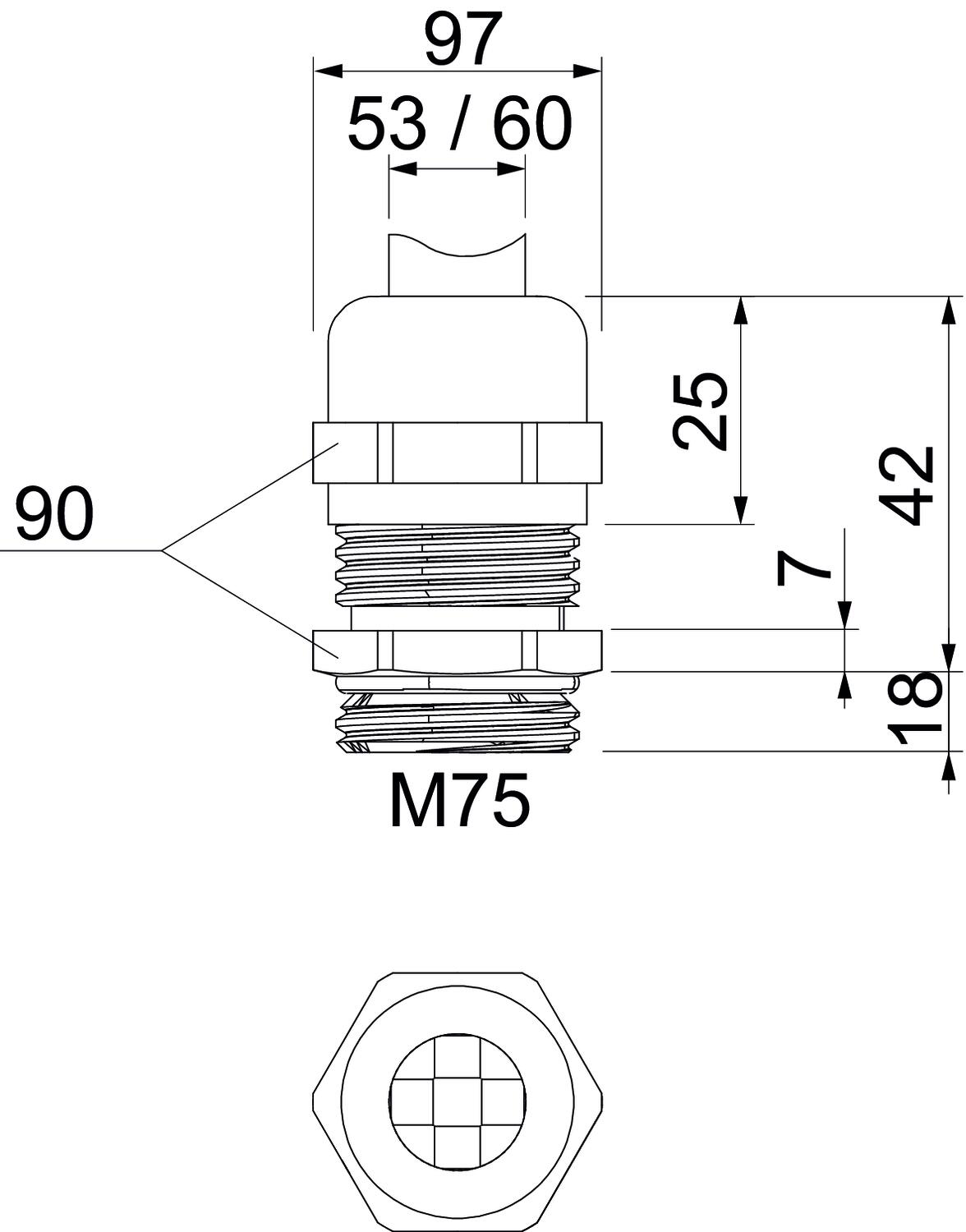

Dimension	M75
Dimension E	97 mm
Dimension L max.	42 mm
Dimension L1	18 mm
Dimension L2	7 mm
Dimension L3	25 mm
explosion-proof	no
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
Halogen-free	no
Impact-resistant	no
Material	Brass
Permitted temperature range, max.	100 °C

Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	60 mm
Sealing area D, min.	53 mm
Sealing insert, multiple	no
Strain relief option	yes
Surface	Nickel-plated
Thread	M75 x 1,5
Thread length	18 mm
Thread type	Metric
Type of seal	Sealing ring
Version for	Straight
WAF	90
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Item no.	Quantity	SSU
V-TEC VM LM12 MS	M12 x 1,5	no	2086111	piece	50 piece
V-TEC VM LM16 MS	M16 x 1,5	no	2086117	piece	50 piece
V-TEC VM LM20 MS	M20 x 1,5	no	2086123	piece	25 piece
V-TEC VM LM25 MS	M25 x 1,5	no	2086129	piece	25 piece
V-TEC VM LM32 MS	M32 x 1,5	no	2086135	piece	10 piece
V-TEC VM LM40 MS	M40 x 1,5	no	2086141	piece	5 piece
V-TEC VM LM50 MS	M50 x 1,5	no	2086147	piece	5 piece
V-TEC VM LM63 MS	M63 x 1,5	no	2086153	piece	5 piece
V-TEC VM LM75MS1	M75 x 1,5	no	2086156	piece	3 piece
V-TEC VM LM75MS2	M75 x 1,5	no	2086159	piece	3 piece
