Cap nut cable gland, EMC spring contact, metric thread, nickel-plated | | M16 x 1,5 | no |

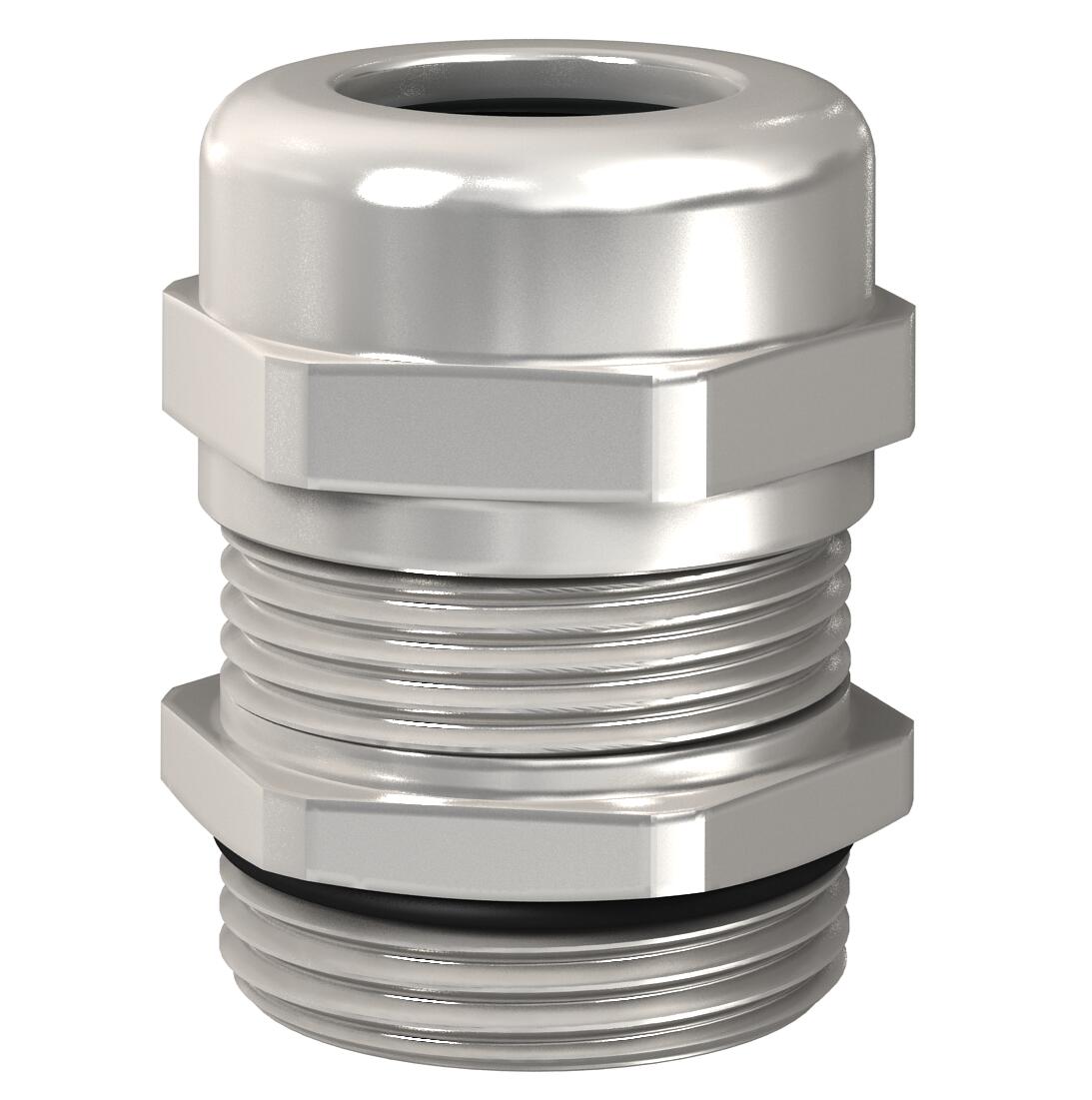

Cap nut cable gland, EMC spring contact, metric thread, nickel-plated

Item no. 2086165 | EAN 4012195655435

Item no. / Types

Thread

Sealing insert, multiple	no

Product description

Product description

With metric connecting thread to IEC 423, robust EMV cap-nut cable gland with large sealing area. The contact between the gland and braided shield is made using a contact spring. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, protection rating IP 68 at 5 bar for 1 hr.

* Prices according to DEL notation.

Technical data

Technical data

Bend protection	no
Dimension	M16
Dimension D1	6 mm
Dimension E	19 mm
Dimension G	M16x1,5 mm
Dimension L	25 mm
Dimension L max.	25 mm
Dimension L1	5 mm
Dimension L2	3 mm
Dimension L3	12,3 mm
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
Halogen-free	no
Height	30 mm
Impact-resistant	no
Length	17 mm

Material	Brass
Permitted temperature range, max.	100 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	9 mm
Sealing area D, min.	5 mm
Sealing insert, multiple	no
Strain relief option	yes
Surface	Nickel-plated
Thread	M16 x 1,5
Thread length	5 mm
Type of seal	Sealing ring
Version for	Straight
WAF	17
Width	19 mm
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Item no.	Quantity	SSU
V-TEC VM16 EMV-K	M16 x 1,5	no	2086165	piece	50 piece
V-TEC VM20 EMV-K	M20 x 1,5	no	2086169	piece	25 piece
V-TEC VM25 EMV-K	M25 x 1,5	no	2086173	piece	25 piece
V-TEC VM32 EMV-K	M32 x 1,5	no	2086177	piece	20 piece
V-TEC VM40 EMV-K	M40 x 1,5	no	2086181	piece	5 piece
V-TEC VM50 EMV-K	M50 x 1,5	no	2086185	piece	5 piece
V-TEC VM63 EMV-K	M63 x 1,5	no	2086189	piece	5 piece
