Calcium silicate plate 500 | 250 | 30 | 500
morepic-1 morepic-2 video-1 video-2 video-3

Calcium silicate plate

Item no. 7202904 | EAN 4012195847861

Product description
Product description

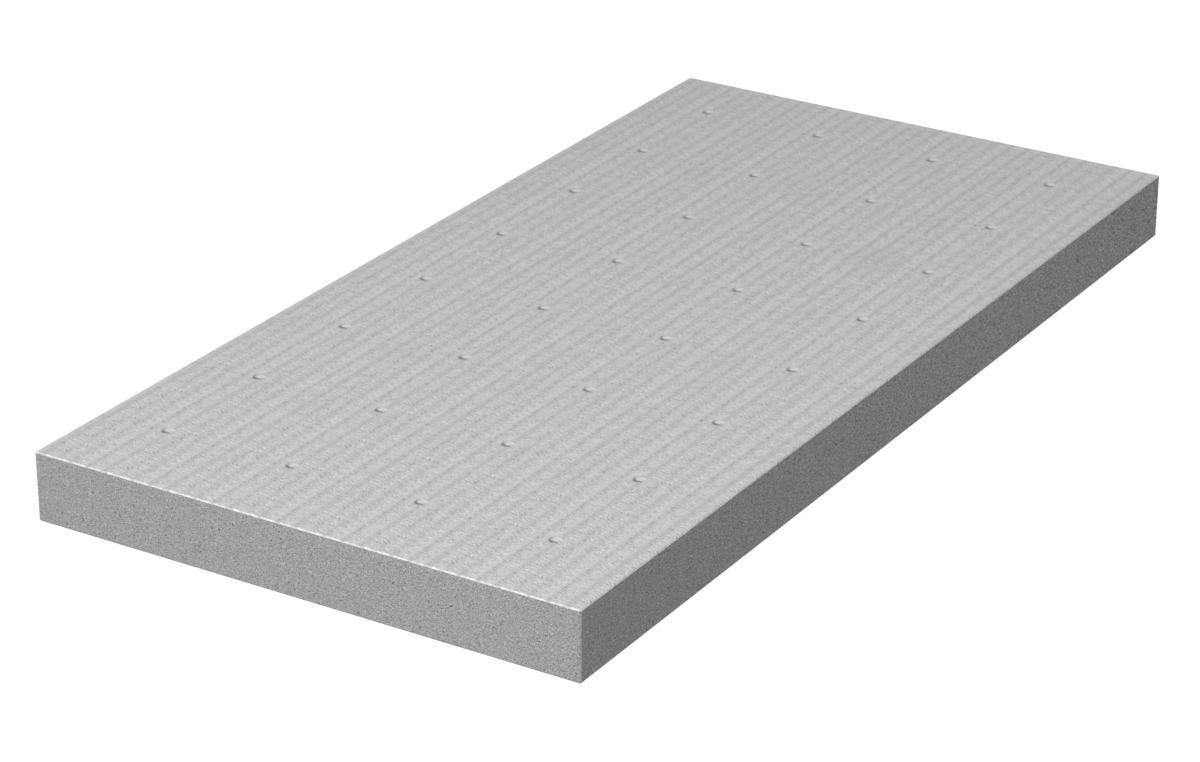

Calcium silicate plate, as support plate, for the construction of frames in the penetration and to double thin wall thicknesses.
Materials class EN 13501 - A1 non-combustible.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Grey-white

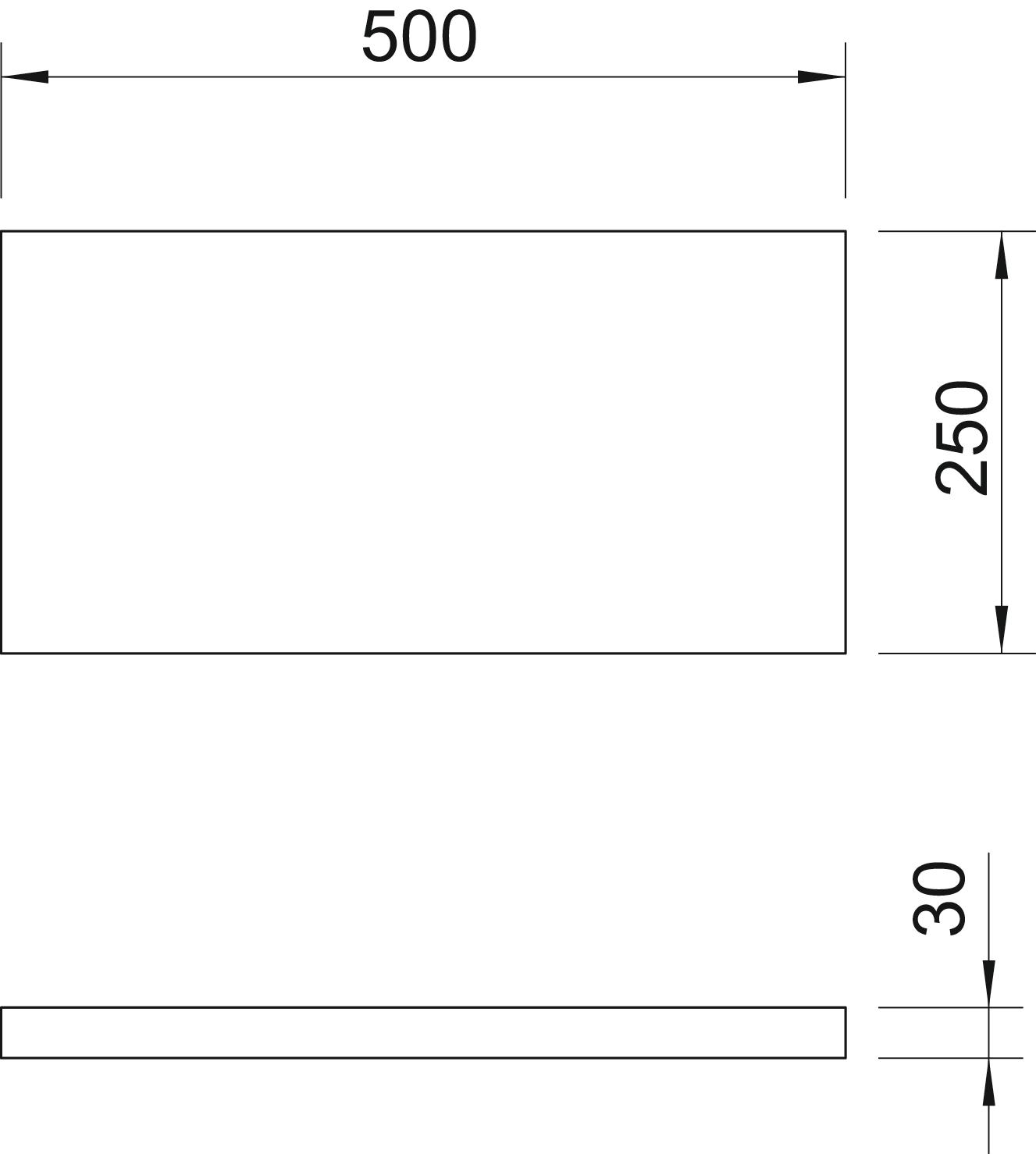

Dimension 500x250x30mm
Dimension 500x250x30
Dimension B 250 mm
Dimension d min. 30 mm
Dimension L 500 mm
Height 30 mm
Length 500 mm
Material Calcium silicate
Type of accessory Calcium silicate plate
Width 250 mm
All types

All types

Types Length Dimension B Dimension d min. Dimension L Item no. Quantity SSU
KSI-P1 500 mm 150 mm 20 mm 500 mm 7202283
1 piece
KSI-P2 500 mm 250 mm 30 mm 500 mm 7202904
1 piece
KSI-P3 1000 mm 250 mm 30 mm 1000 mm 7202912
1 piece
