Cable trunking, type LKM 60150 2000 | 150 | 64 | | Strip galvanized | Steel

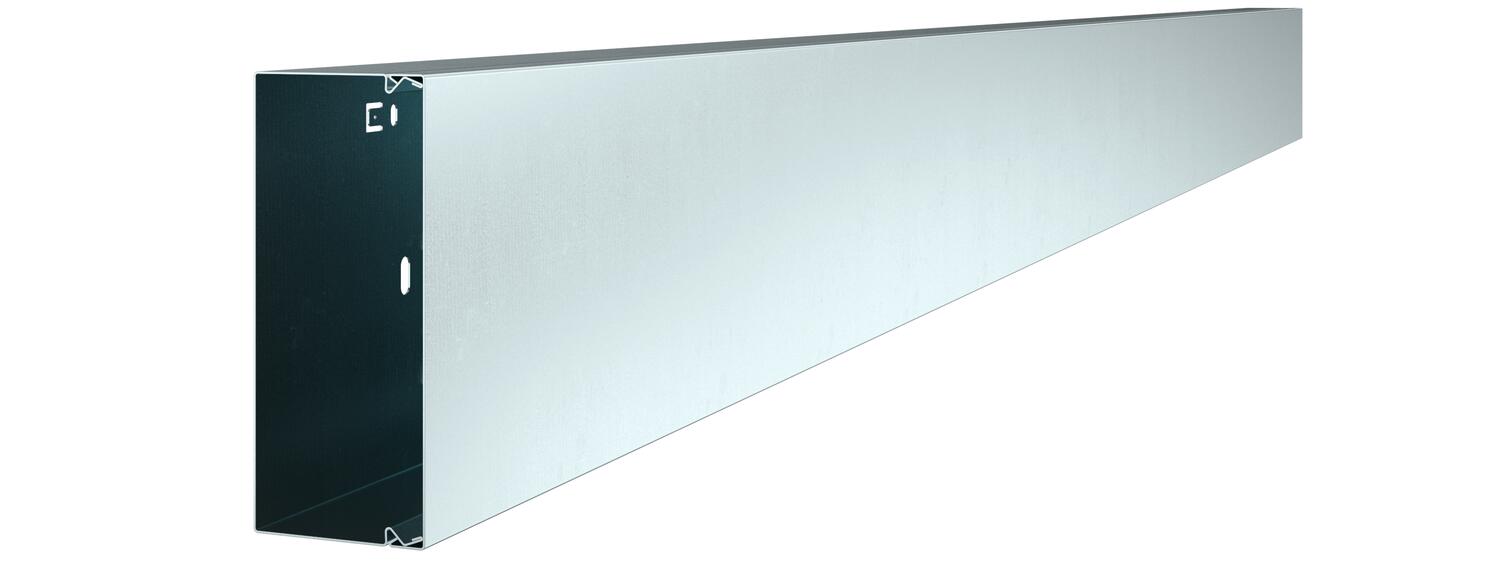

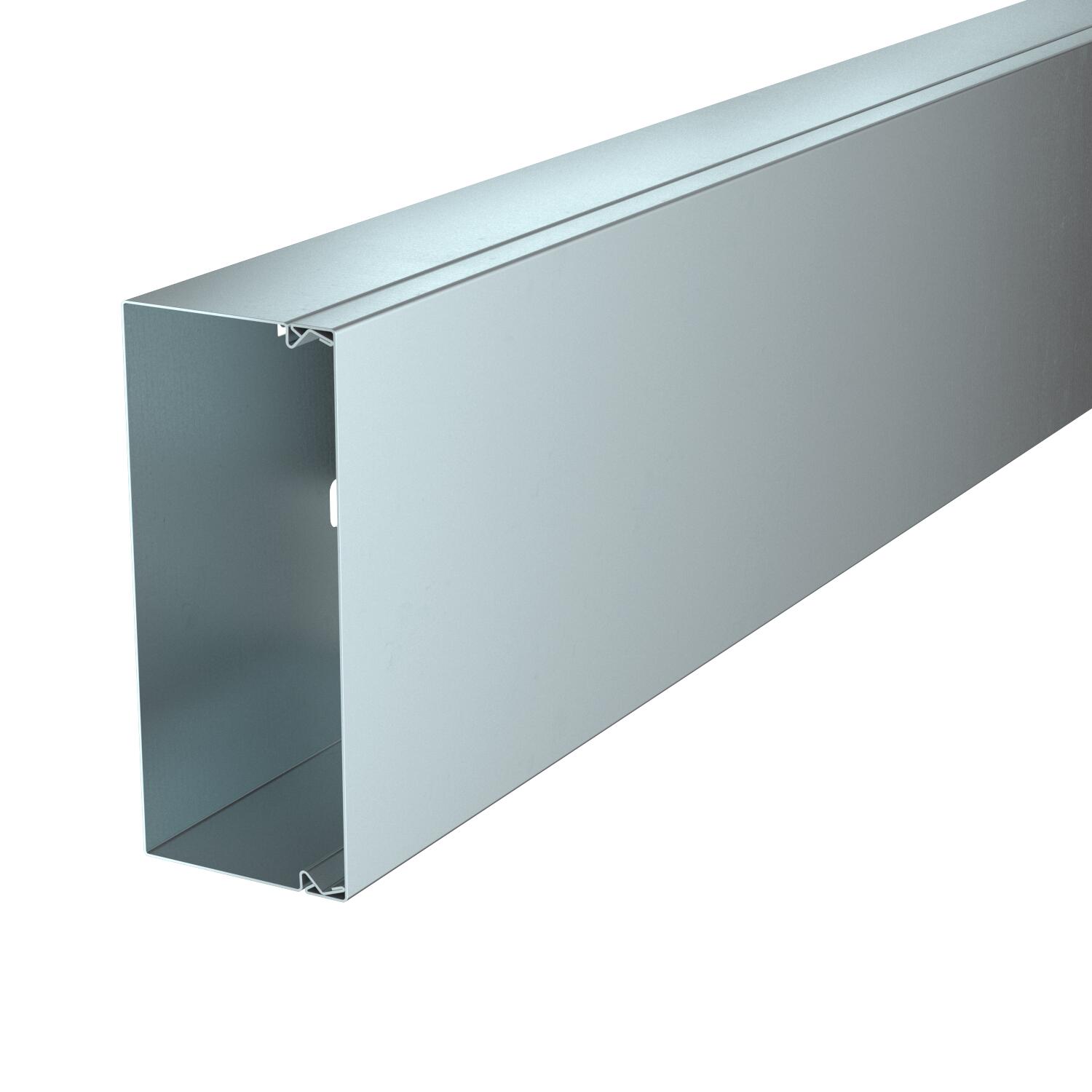

Cable trunking, type LKM 60150

Item no. 6247148 | EAN 4012196312191

Item no. / Types

Length	2000 mm

Width	150 mm

Height	64 mm

Surface

Material	Steel

Product description

Product description

Trunking cover and base with base perforation.

Equipotential bonding is guaranteed between the cover and the base without any additional aids.
The base contains loop perforation allowing the attachment of the partition.
For ceiling mounting, always use the trunking clamp

Technical data

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no
CO₂ Footprint (GWP) Cradle-to-Gate	6,558 kg CO₂e / 1 Meter

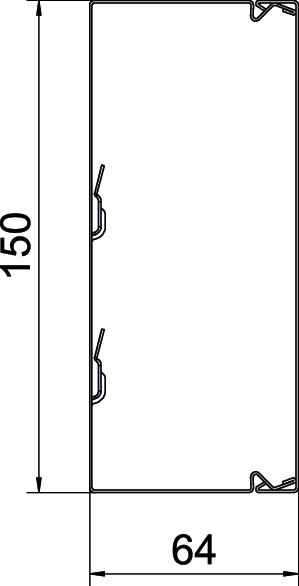

Dimension	60x150x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Height	64 mm
Length	2000 mm
Maintain electrical functions	no

Material	Steel
Number of insertable partitions	2
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Surface	Strip galvanized
Usable cross-section	6986 mm²
Version, cable trunking cover	Loose
Width	150 mm

All types

All types

Types	Length	Width	Height	Surface	Material	Item no.	Quantity	SSU
LKM60150FS	2000 mm	150 mm	64 mm	Strip galvanized	Steel	6247148	m	2 m
LKM60150RW	2000 mm	150 mm	64 mm	Strip galvanized / plastic coated	Steel	6248640	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Joint connector LKM SV60	LKM SV60	6247466	piece	10 piece

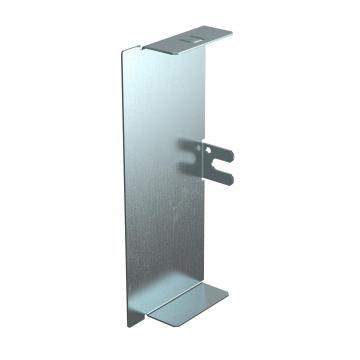

End piece, for cable trunking type LKM 60150	LKM E60150FS	6248314	piece	10 piece
Partition LKM/TWS45	LKM TWS45	6249871	m	2 m
Partition LKM TWS55	LKM TWS55	6249876	m	2 m

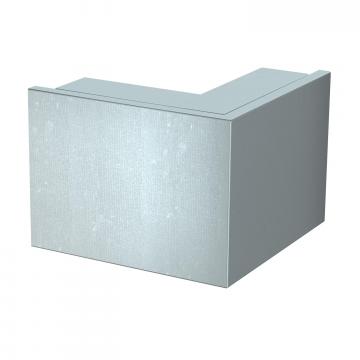

External corner, for cable trunking type LKM 60150	LKM A60150FS	6248071	piece	1 piece

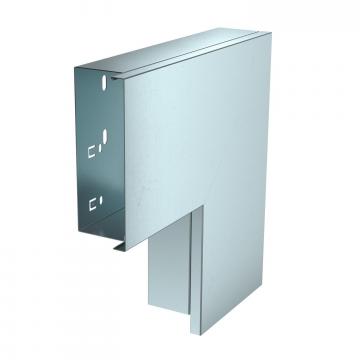

Flat angle, for cable trunking type LKM 60150	LKM F60150FS	6248012	piece	1 piece
Internal corner, for cable trunking type LKM 60150	LKM I60150FS	6248152	piece	1 piece

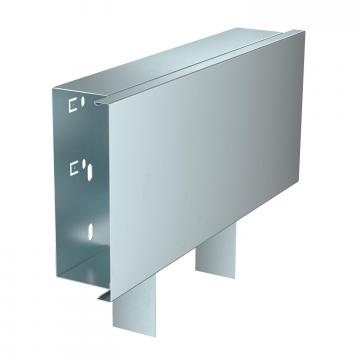

T piece, for cable trunking type LKM 60150	LKM T60150FS	6248217	piece	1 piece

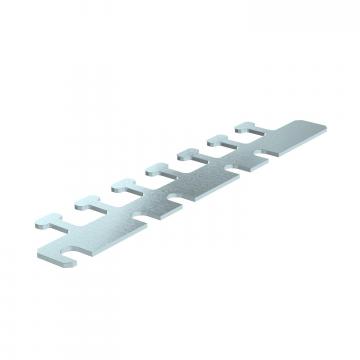

LKM cable bracket, trunking width 150 mm	LKM Z150	6249965	piece	10 piece
Trunking clamp, LKM, trunking width 150 and 200 mm	LKM K140	6249888	piece	20 piece
