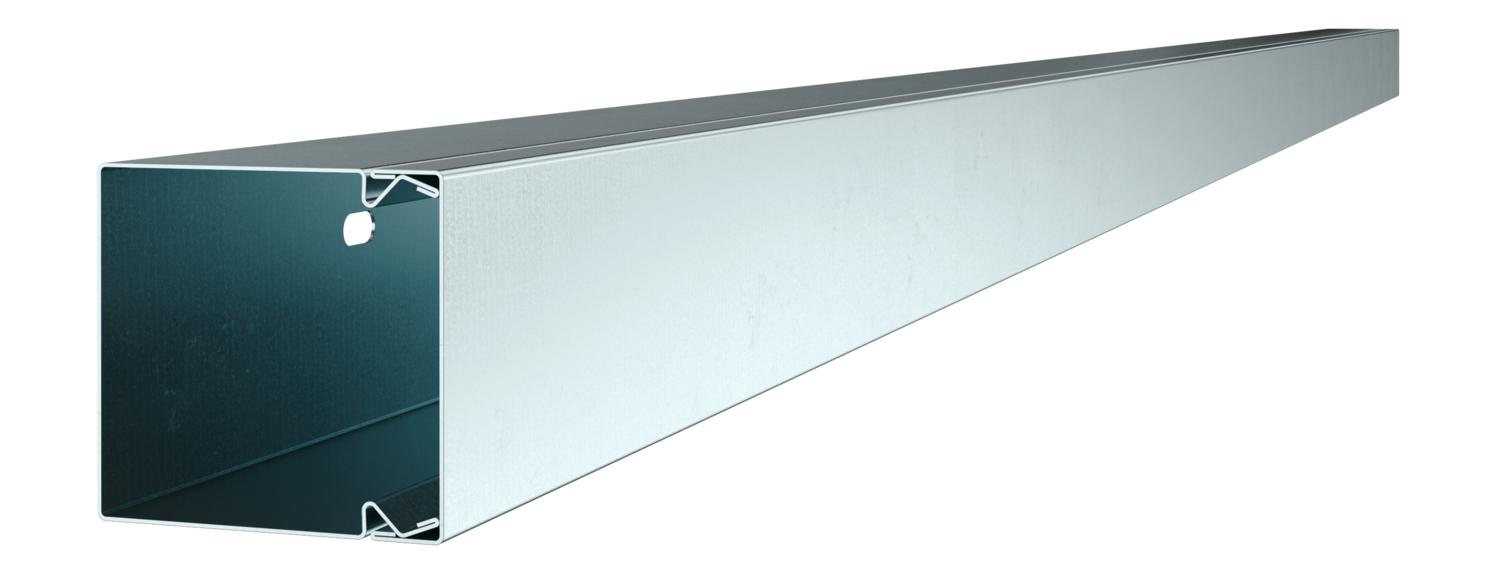

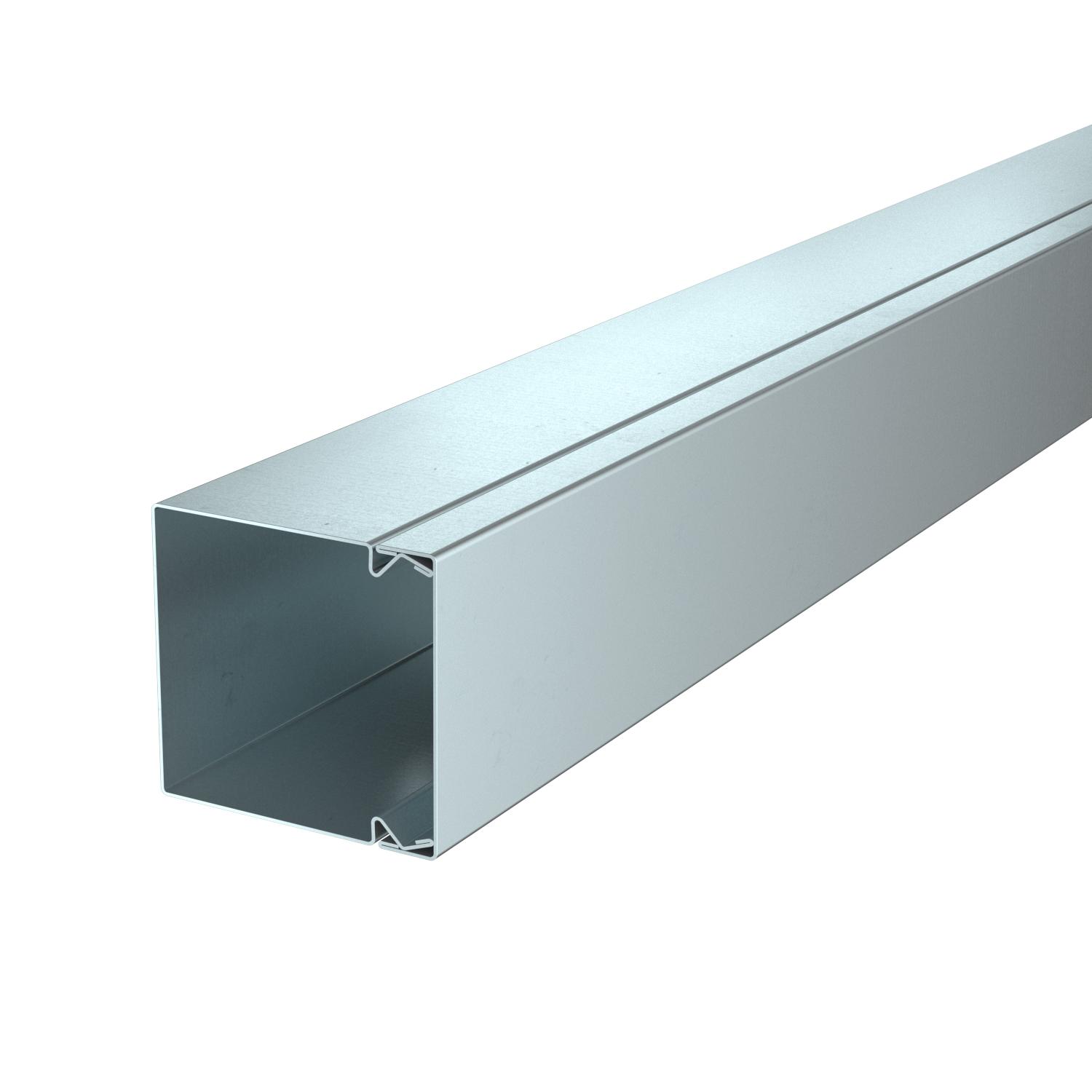

Cable trunking, type LKM 60060

Item no. 6247091 | EAN 4012196977369

2000 mm
60 mm
64 mm
Steel
Product description

Product description

Trunking cover and base with base perforation.

Equipotential bonding is guaranteed between the cover and the base without any additional aids. Note: LKM 60060 has no loop perforation in the base, a partition cannot be installed.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • LKM trunking, trunking depth 60 mm
  • Nail device
Technical data

Technical data

Antibacterial treatment no
Base perforation with base perforation
Cable retaining clip no

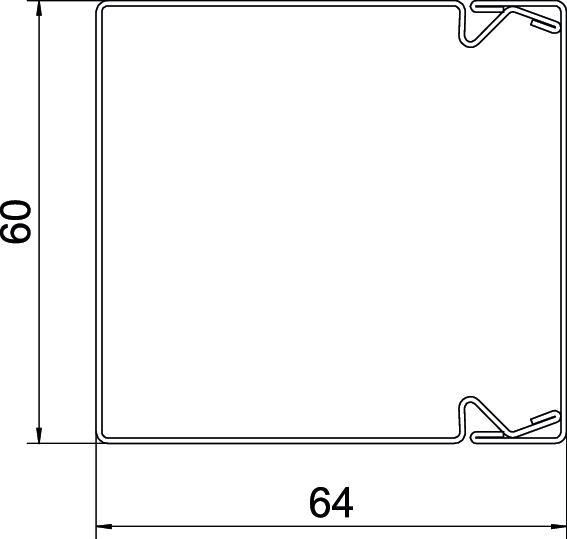

Dimension 60x60x2000
Duct connector no
Fastening type Base perforation
Halogen-free yes
Height 64 mm
Length 2000 mm
Maintain electrical functions no
Material Steel
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Protective film no
Surface Strip galvanized
Usable cross-section 3153 mm²
Version, cable trunking cover Loose
Width 60 mm
All types

All types

Types Length Width Height Surface Material Item no. Quantity SSU
LKM60060FS 2000 mm 60 mm 64 mm Strip galvanized Steel 6247091
2 m
LKM60060RW 2000 mm 60 mm 64 mm Strip galvanized / plastic coated Steel 6248608
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU

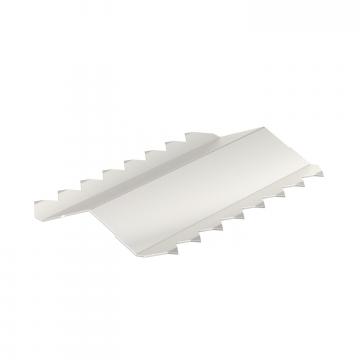

Joint connector LKM SV60 Joint connector LKM SV60 LKM SV60 6247466
10 piece

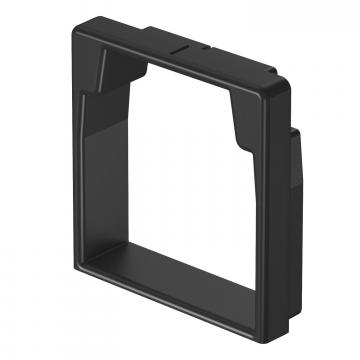

Edge protection ring KSR 60060, for LKM cable trunking type 60060 Edge protection ring KSR 60060, for LKM cable trunking type 60060 LKM KSR60060 6249752
5 piece

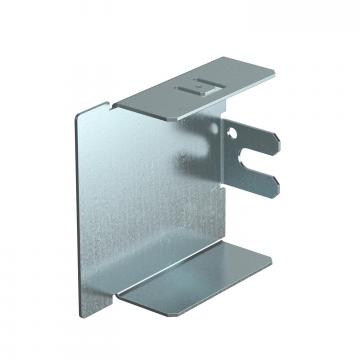

End piece, for cable trunking type LKM 60060 End piece, for cable trunking type LKM 60060 LKM E60060FS 6248284
10 piece
Partition LKM/TWS45 Partition LKM/TWS45 LKM TWS45 6249871
2 m
Partition LKM TWS55 Partition LKM TWS55 LKM TWS55 6249876
2 m

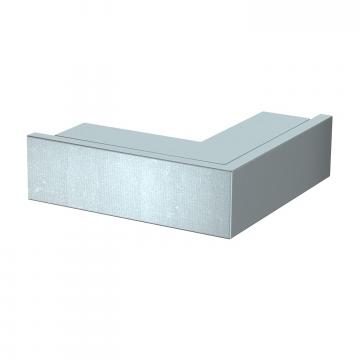

External corner, for cable trunking type LKM 60060 External corner, for cable trunking type LKM 60060 LKM A60060FS 6248047
1 piece

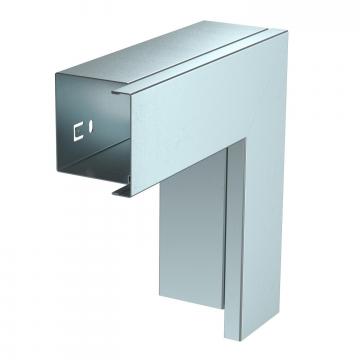

Flat angle, for cable trunking type LKM 60060 Flat angle, for cable trunking type LKM 60060 LKM F60060FS 6247989
1 piece

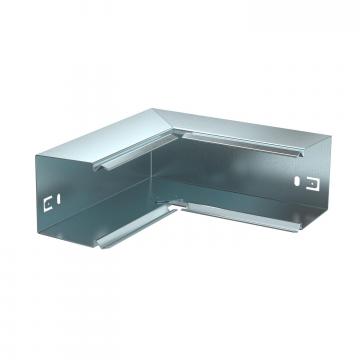

Internal corner, for cable trunking type LKM 60060 Internal corner, for cable trunking type LKM 60060 LKM I60060FS 6248128
1 piece

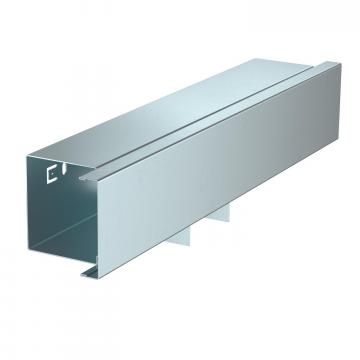

T piece, for cable trunking type LKM 60060 T piece, for cable trunking type LKM 60060 LKM T60060FS 6248187
1 piece

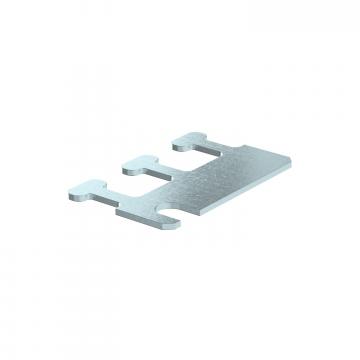

LKM cable bracket, trunking width 60 mm LKM cable bracket, trunking width 60 mm LKM Z60 6249906
10 piece
