Cable trunking, type LKM 60060 2000 | 60 | 64 | | Strip galvanized / plastic coated | Steel

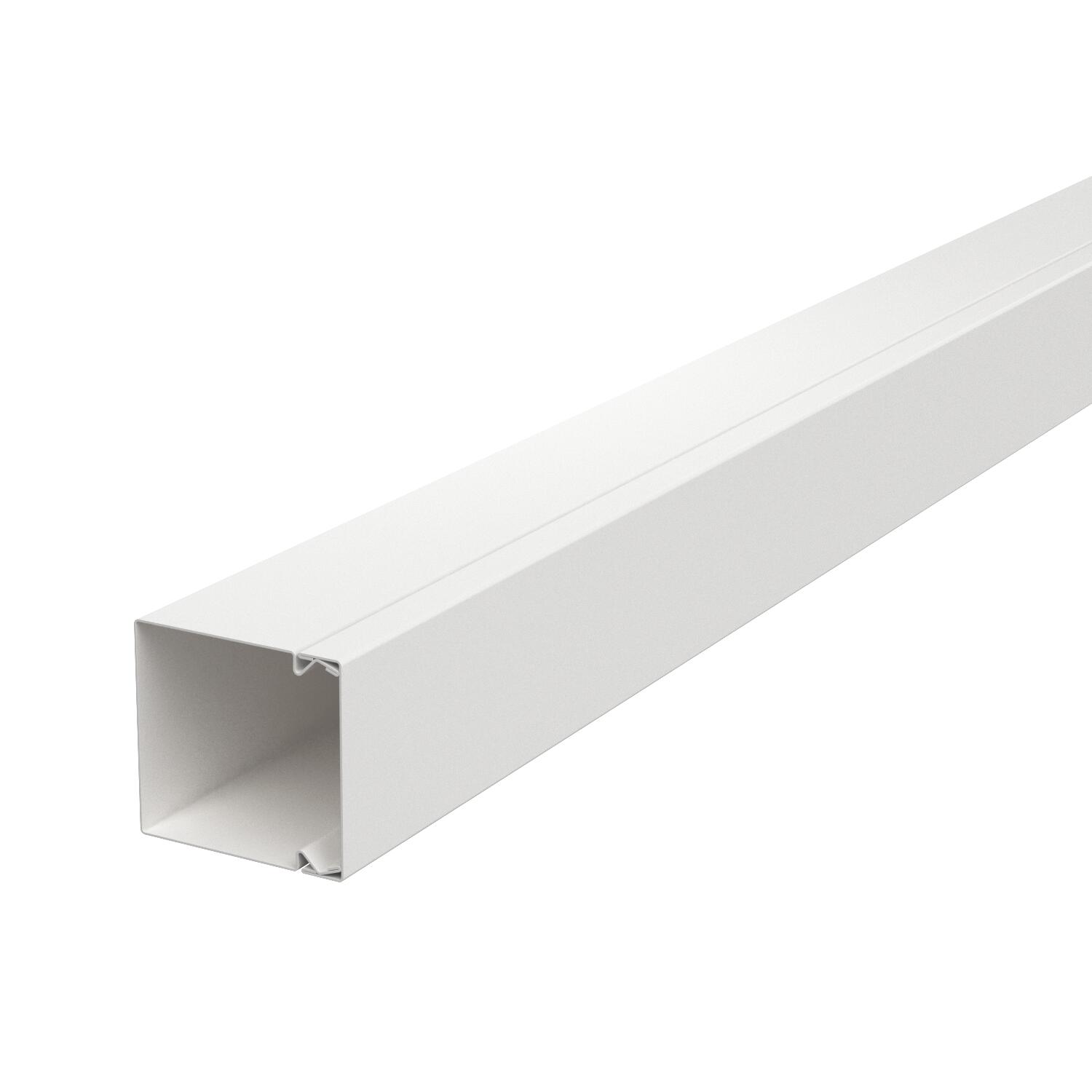

Cable trunking, type LKM 60060

Item no. 6248608 | EAN 4012196977307

Item no. / Types

Length	2000 mm

Width	60 mm

Height	64 mm

Surface

Material	Steel

Product description

Product description

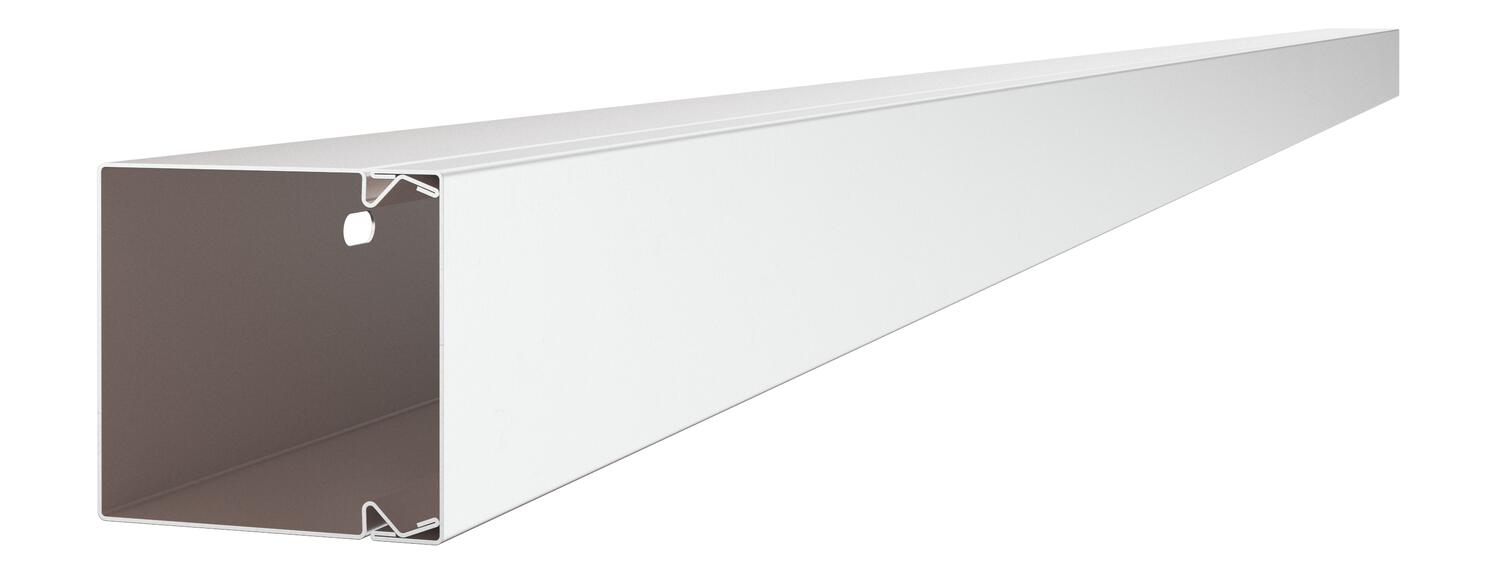

Trunking cover and base with base perforation.

Equipotential bonding is guaranteed between the cover and the base without any additional aids. Note: LKM 60060 has no loop perforation in the base, a partition cannot be installed.

Technical data

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no
Colour	Pure white; RAL 9010
Dimension	60x60x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Maintain electrical functions	no

Material	Steel
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Surface	Strip galvanized / plastic coated
Usable cross-section	3153 mm²
Version, cable trunking cover	Loose

Dimensions

Height	64 mm
Length	2000 mm

Width	60 mm

All types

All types

Types	Length	Width	Height	Surface	Material	Item no.	Quantity	SSU
LKM60060FS	2000 mm	60 mm	64 mm	Strip galvanized	Steel	6247091	m	2 m
LKM60060RW	2000 mm	60 mm	64 mm	Strip galvanized / plastic coated	Steel	6248608	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Joint connector LKM SV60	LKM SV60	6247466	piece	10 piece
Edge protection ring KSR 60060, for LKM cable trunking type 60060	LKM KSR60060	6249752	piece	5 piece

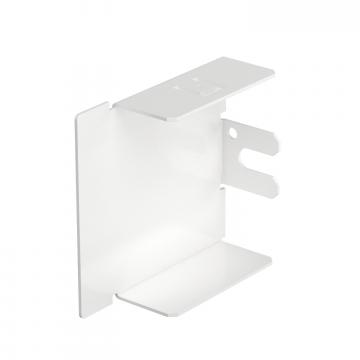

End piece, for cable trunking type LKM 60060	LKM E60060RW	6249795	piece	10 piece
End piece, for cable trunking type 60060	LKM EK60060	6249782	piece	5 piece
Partition LKM/TWS45	LKM TWS45	6249871	m	2 m
Partition LKM TWS55	LKM TWS55	6249876	m	2 m

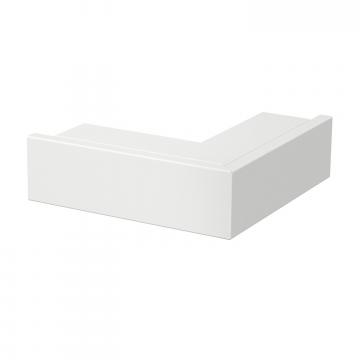

External corner, for cable trunking type LKM 60060	LKM A60060RW	6249558	piece	1 piece

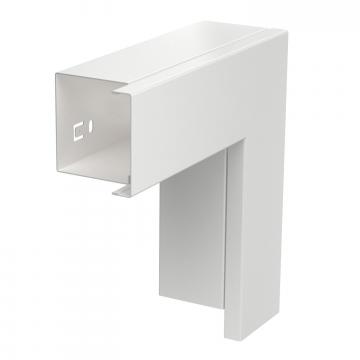

Flat angle, for cable trunking type LKM 60060	LKM F60060RW	6249485	piece	1 piece

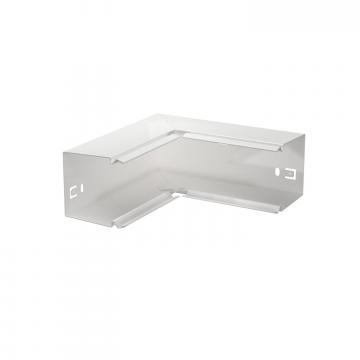

Internal corner, for cable trunking type LKM 60060	LKM I60060RW	6249612	piece	1 piece

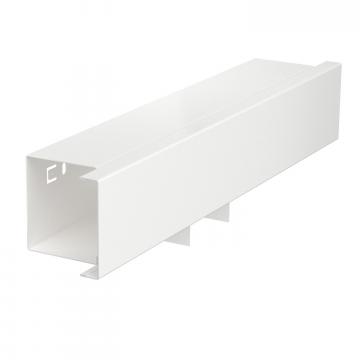

T piece, for cable trunking type LKM 60060	LKM T60060RW	6249671	piece	1 piece
LKM cable bracket, trunking width 60 mm	LKM Z60	6249906	piece	10 piece
