Cable tray SKSU 110 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

SKSU 110 = heavy-duty cable tray system, unperforated, with 110 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	14,832 kg CO₂e / 1 Meter
Dimension	110 x 300
Dimension	110x300x3000
Dimension B	300 mm
Height	110 mm
Height	4 in
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	no
NATO hole pattern	no
Plate thickness	0,06 in
Plate thickness	1,5 mm

Rustproof steel, pickled	no
Side perforation	no
Support spacing 1.5 m	3 kN/m
Support spacing 2.0 m	2,4 kN/m
Support spacing 2.5 m	1,76 kN/m
Support spacing 3.0 m	1,2 kN/m
Support spacing 3.5 m	0,84 kN/m
Support spacing 4.0 m	0,8 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	32800 mm²
Usable cross-section	328 cm²
Wide-span version	no
Width	300 mm
Width	12 in
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKSU 110 FS	3000 mm	100 mm	1.5 mm	no	Steel	Strip galvanized	6063403	m	3 m
SKSU 120 FS	3000 mm	200 mm	1.5 mm	no	Steel	Strip galvanized	6063438	m	3 m
SKSU 130 FS	3000 mm	300 mm	1.5 mm	no	Steel	Strip galvanized	6063454	m	3 m
SKSU 140 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6063470	m	3 m
SKSU 150 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6063497	m	3 m
SKSU 155 FS	3000 mm	550 mm	1.5 mm	no	Steel	Strip galvanized	6063500	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight and angle connector 110 FS	RLVL 110 FS	6067131	piece	10 piece

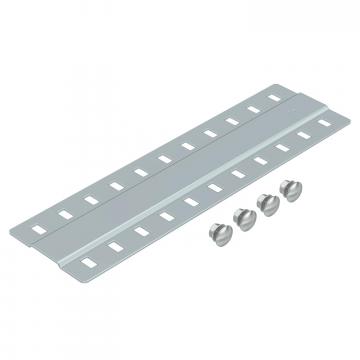

Joint plate FS	SSLB 300 FS	7070217	piece	20 piece
Cover with turn buckle FS	DRL 300 FS	6052304	m	3 m
Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m
90° bend 110 FS	RB 90 130 FS	7001932	piece	1 piece
