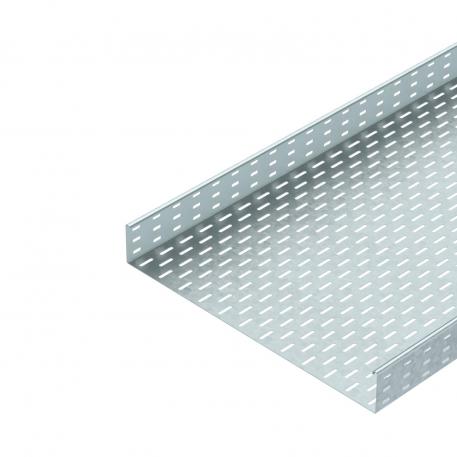

Cable tray SKS 85 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

SKS 85 = heavy-duty cable tray system with 85 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	20,6169 kg CO₂e / 1 Meter
Dimension	85x600x3000
Dimension	85 x 600
Dimension B	600 mm
Height	85 mm
Height	3 in
Length	10 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,6 in

Plate thickness	1,5 mm
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.5 m	2,8 kN/m
Support spacing 2.0 m	2,25 kN/m
Support spacing 2.5 m	1,5 kN/m
Support spacing 3.0 m	0,75 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	50800 mm²
Usable cross-section	508 cm²
Wide-span version	no
Width	600 mm
Width	24 in
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 810 FT	3000 mm	100 mm	1.5 mm	no	Steel	Hot-dip galvanised	6058620	m	3 m
SKS 820 FT	3000 mm	200 mm	1.5 mm	no	Steel	Hot-dip galvanised	6058647	m	3 m
SKS 830 FT	3000 mm	300 mm	1.5 mm	no	Steel	Hot-dip galvanised	6058663	m	3 m
SKS 840 FT	3000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised	6058698	m	3 m
SKS 850 FT	3000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised	6058728	m	3 m
SKS 860 FT	3000 mm	600 mm	1.5 mm	no	Steel	Hot-dip galvanised	6058744	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight and angle connector FT	RLVL 85 FT	6067816	piece	10 piece
Cover with turn buckle FT	DRL 600 FT	6051472	m	3 m
Cover with turn buckle DD	DRL 600 DD	6052724	m	3 m
Barrier strip 85 DD	TSG 85 DD	6062331	m	3 m
