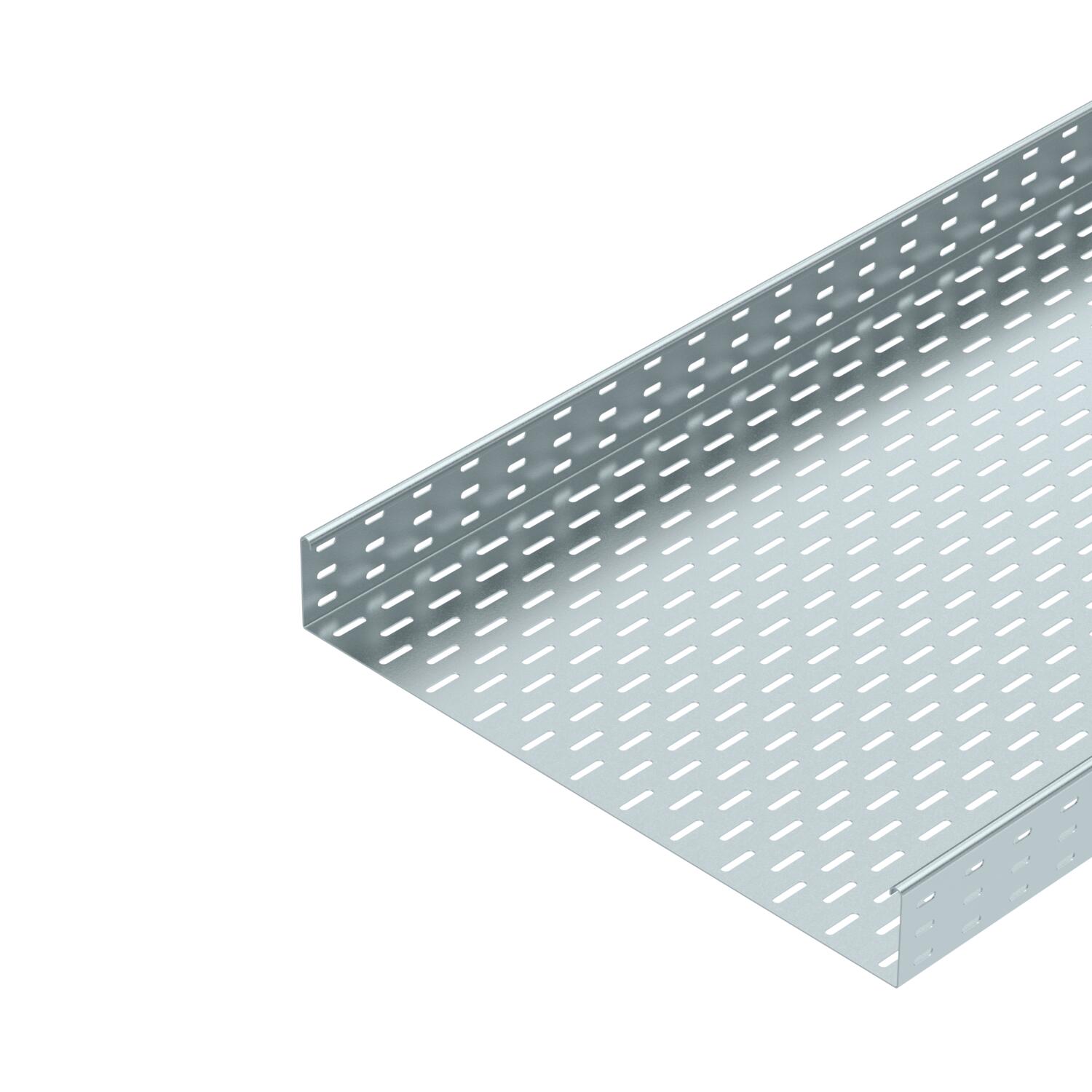

Cable tray SKS 85 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

SKS 85 = heavy-duty cable tray system with 85 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Supplied connectors
CO₂ Footprint (GWP) Cradle-to-Gate	0,057 kg CO₂e / 1 Meter

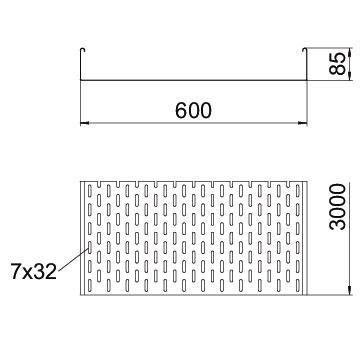

Dimension	85 x 600
Dimension	85x600x3000
Dimension B	600 mm
Height	85 mm
Height	3 in
Length	10 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	600 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1,5 mm

Plate thickness	0,6 in
Rustproof steel, pickled	no
Side perforation	yes
Supplied accessories	RLVL 85 straight connector
Support spacing 1.5 m	2,8 kN/m
Support spacing 2.0 m	2,25 kN/m
Support spacing 2.5 m	1,5 kN/m
Support spacing 3.0 m	0,75 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	50800 mm²
Usable cross-section	508 cm²
Wide-span version	no
Width	600 mm
Width	24 in
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 810 FS	3000 mm	100 mm	1.5 mm	no	Steel	Strip galvanized	6058108	m	3 m
SKS 820 FS	3000 mm	200 mm	1.5 mm	no	Steel	Strip galvanized	6058205	m	3 m
SKS 830 FS	3000 mm	300 mm	1.5 mm	no	Steel	Strip galvanized	6058302	m	3 m
SKS 840 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6058396	m	3 m
SKS 850 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6058507	m	3 m
SKS 860 FS	3000 mm	600 mm	1.5 mm	no	Steel	Strip galvanized	6058604	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight and angle connector	RLVL 85 FS	6067123	piece	10 piece
Joint plate FS	SSLB 600 FS	7070233	piece	20 piece
Cover with turn buckle FS	DRL 600 FS	6052606	m	3 m
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
90° bend 85 FS	RB 90 860 FS	7001851	piece	1 piece
