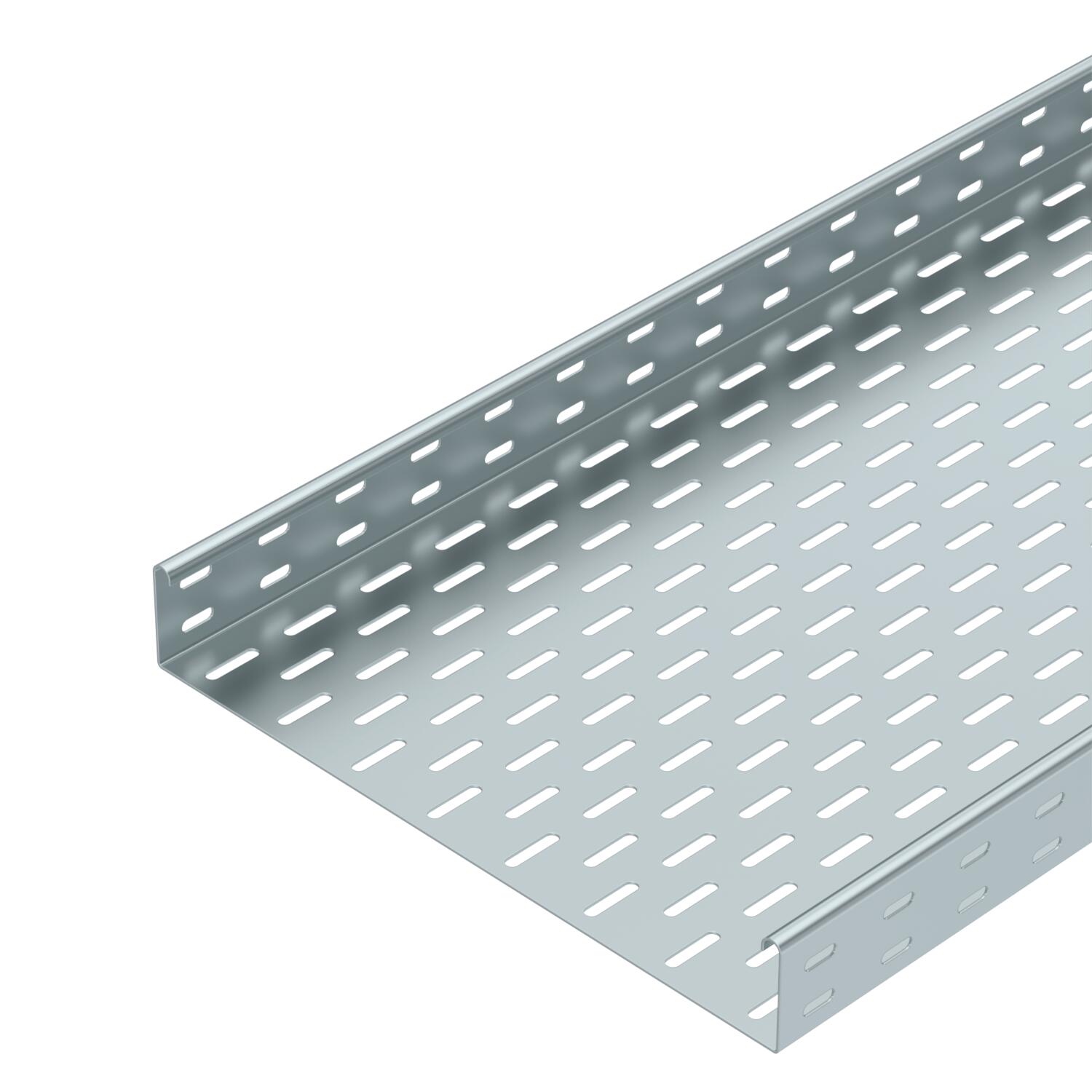

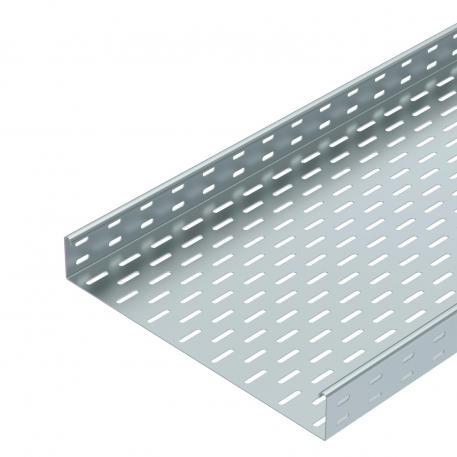

Cable tray SKS 60 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions

Material	Steel

Surface	Strip galvanized

Product description

Product description

SKS 60 = heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Base perforation	7 x 32
Connector version	Supplied connectors
Dimension	60 x 400
Dimension	60x400x3000
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1,5 mm

Plate thickness	0,06 in
Rustproof steel, pickled	no
Side perforation	yes
Supplied accessories	Straight connector RLVL 60
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	238 cm²
Usable cross-section	23800 mm²
Wide-span version	no
With cover	no

Support spacing 1.5 m	2,65 kN/m
Support spacing 2.0 m	1,8 kN/m

Support spacing 2.5 m	1,15 kN/m
Support spacing 3.0 m	0,5 kN/m

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 610 FS	3000 mm	100 mm	1.5 mm	yes	Steel	Strip galvanized	6056105	m	3 m
SKS 615 FS	3000 mm	150 mm	1.5 mm	yes	Steel	Strip galvanized	6056156	m	3 m
SKS 620 FS	3000 mm	200 mm	1.5 mm	yes	Steel	Strip galvanized	6056202	m	3 m
SKS 630 FS	3000 mm	300 mm	1.5 mm	yes	Steel	Strip galvanized	6056296	m	3 m
SKS 640 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6056407	m	3 m
SKS 650 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6056504	m	3 m
SKS 660 FS	3000 mm	600 mm	1.5 mm	no	Steel	Strip galvanized	6056601	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FS	RLVK 60 FS	6067093	piece	10 piece

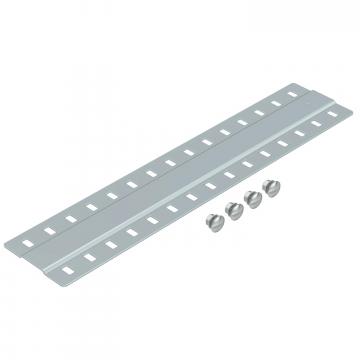

Joint plate FS	SSLB 400 FS	7070221	piece	20 piece
Cover with turn buckle FS	DRL 400 FS	6052401	m	3 m
Separating retainer 60 FS	TSG 60 FS	6062068	m	3 m
45° bend 60 FS	RB 45 640 FS	7000383	piece	1 piece
90° bend 60 FS	RB 90 640 FS	7001290	piece	1 piece
