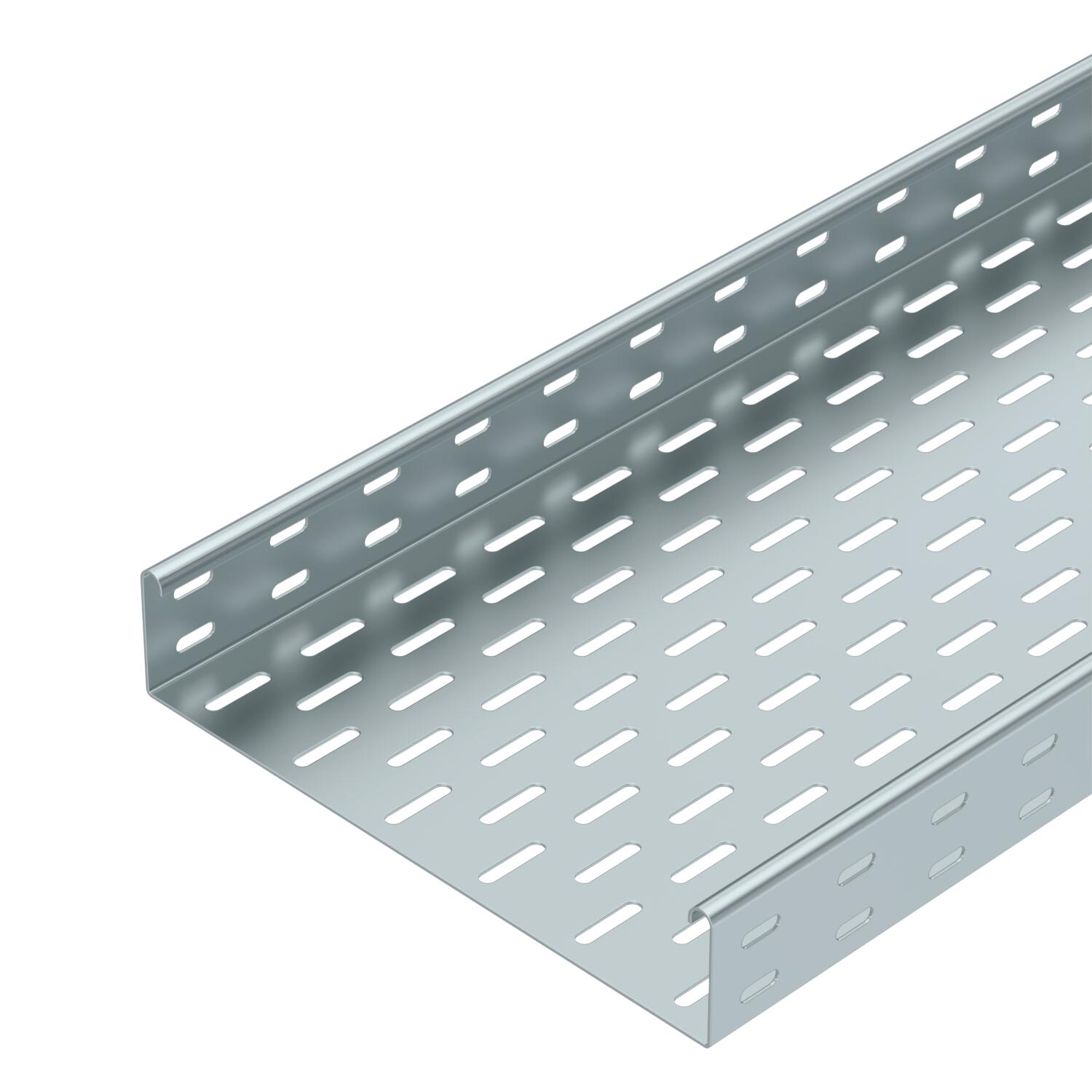

SKS 60 = heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
- Technical data
-
Technical data

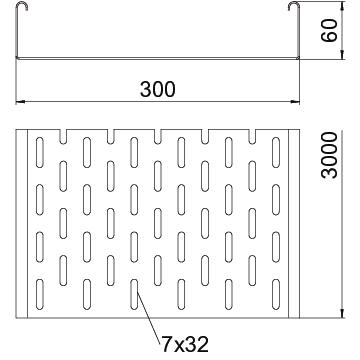

Base perforation 7 x 32 Connector version Supplied connectors Dimension 60 x 300 Dimension 60x300x3000 Dimension B 300 mm Fire protection Maintenance of electrical function of standard support structure Height 2 in Height 60 mm Length 10 ft Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions yes Maß W 300 mm Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1,5 mm Plate thickness 0,06 in Rustproof steel, pickled no Side perforation yes Supplied accessories Straight connector RLVL 60 Support spacing 1.5 m 2,65 kN/m Support spacing 2.0 m 1,8 kN/m Support spacing 2.5 m 1,15 kN/m Support spacing 3.0 m 0,5 kN/m Surface Strip galvanized Type of connector, cable support system Screwed Usable cross-section 178 cm² Usable cross-section 17800 mm² Wide-span version no Width 300 mm Width 12 in With cover no Technical data
Load diagram, cable tray, type SKS 60
- Permitted cable tray/ladder load in kN/m without man load
- Support width in m
- Rail bend in mm at permitted kN/m
- Load scheme during testing
- Load curve with cable tray/ladder width in mm
- Strut bend curve according to support width
