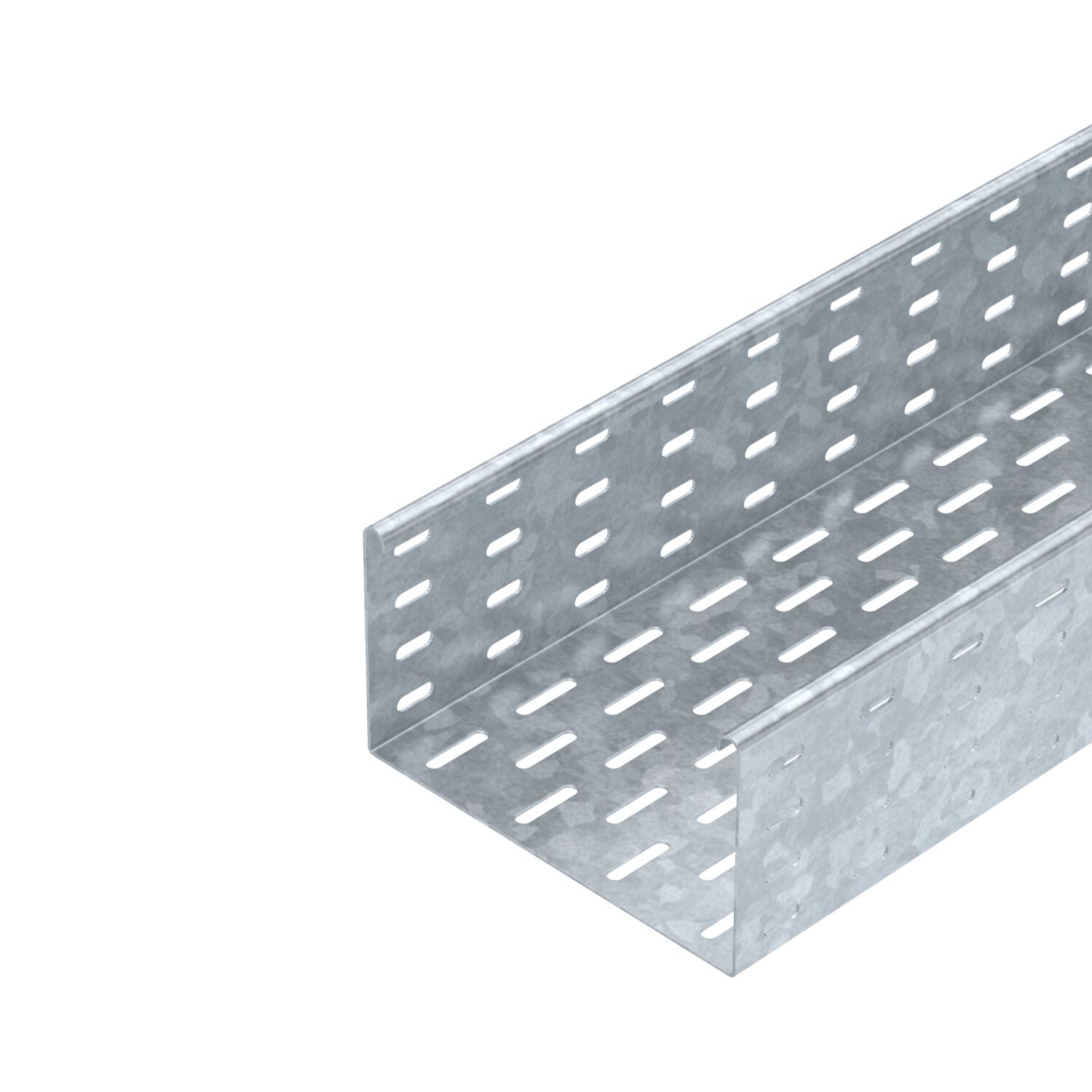

Cable tray SKS 110 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

SKS 110 = heavy-duty cable tray system with 110 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	11,595 kg CO₂e / 1 Meter

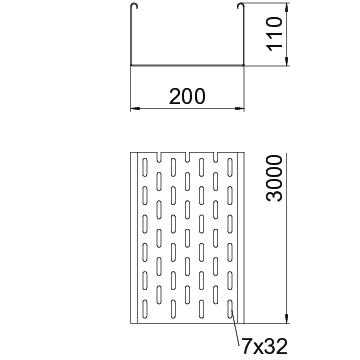

Dimension	110 x 200
Dimension	110x200x3000
Dimension B	200 mm
Height	4 in
Height	110 mm
Length	10 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	200 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,06 in

Plate thickness	1,5 mm
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.5 m	3 kN/m
Support spacing 2.0 m	2,4 kN/m
Support spacing 2.5 m	1,76 kN/m
Support spacing 3.0 m	1,2 kN/m
Support spacing 3.5 m	0,84 kN/m
Support spacing 4.0 m	0,8 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	21800 mm²
Usable cross-section	218 cm²
Wide-span version	no
Width	8 in
Width	200 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 110 FT	3000 mm	100 mm	1.5 mm	no	Steel	Hot-dip galvanised	6061605	m	3 m
SKS 120 FT	3000 mm	200 mm	1.5 mm	no	Steel	Hot-dip galvanised	6061621	m	3 m
SKS 130 FT	3000 mm	300 mm	1.5 mm	no	Steel	Hot-dip galvanised	6061656	m	3 m
SKS 140 FT	3000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised	6061672	m	3 m
SKS 150 FT	3000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised	6061702	m	3 m
SKS 155 FT	3000 mm	550 mm	1.5 mm	no	Steel	Hot-dip galvanised	6061729	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight and angle connector 110 FT	RLVL 110 FT	6067913	piece	10 piece
Joint plate DD	SSLB 200 DD	7070314	piece	20 piece
Cover with turn buckle FT	DRL 200 FT	6051367	m	3 m
Cover with turn buckle DD	DRL 200 DD	6052709	m	3 m
Barrier strip 110 DD	TSG 110 DD	6062335	m	3 m
45° bend 110 FT	RB 45 120 FT	7068212	piece	1 piece
90° bend 110 FT	RB 90 120 FT	7127227	piece	1 piece
