Cable tray SKS 110 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

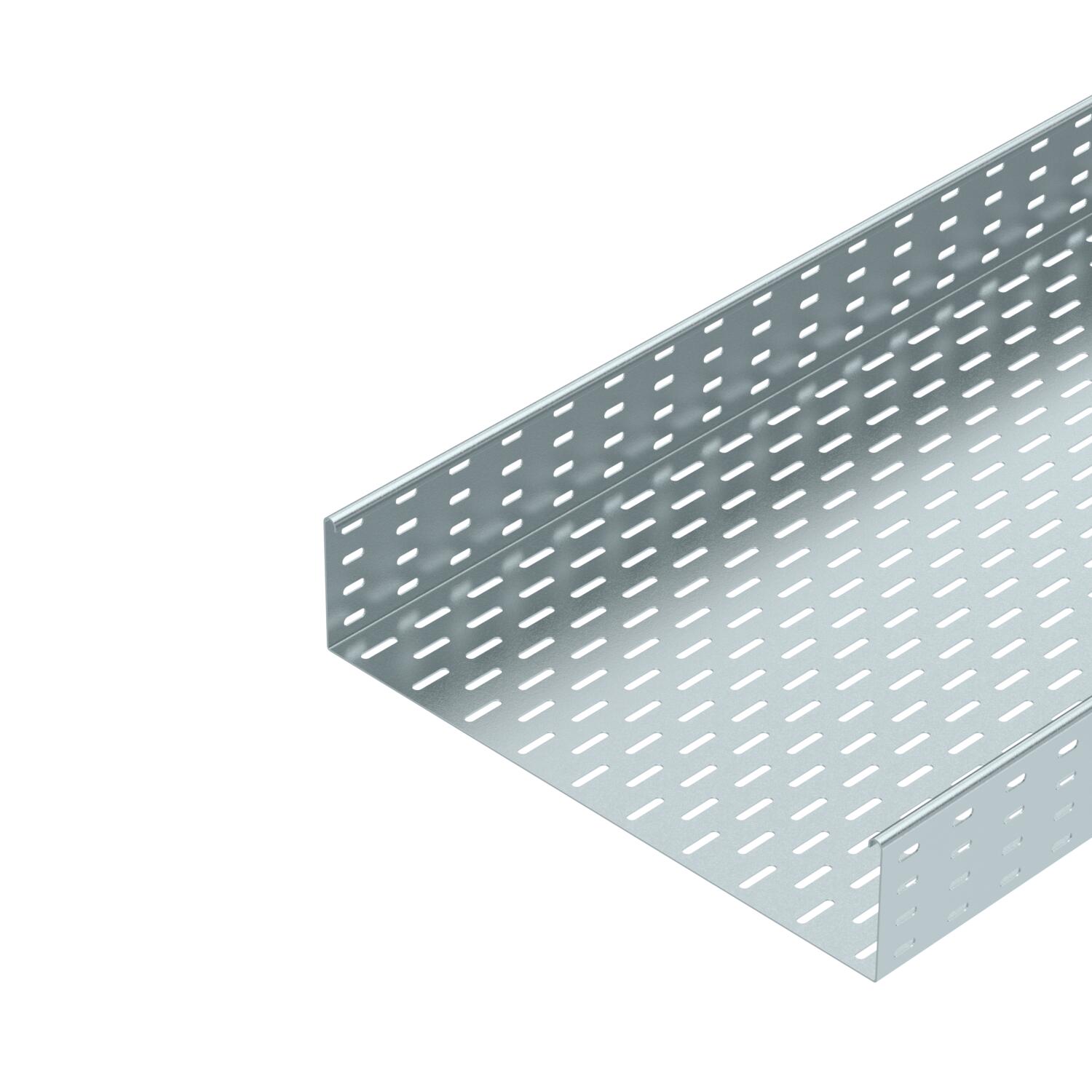

SKS 110 = heavy-duty cable tray system with 110 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Supplied connectors
CO₂ Footprint (GWP) Cradle-to-Gate	20,825 kg CO₂e / 1 Meter

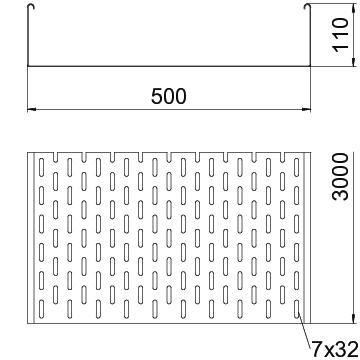

Dimension	110x500x3000
Dimension	110 x 500
Dimension B	500 mm
Height	4 in
Height	110 mm
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	500 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,06 in
Plate thickness	1,5 mm

Rustproof steel, pickled	no
Side perforation	yes
Supplied accessories	RLVL 110 straight connector
Support spacing 1.5 m	3 kN/m
Support spacing 2.0 m	2,4 kN/m
Support spacing 2.5 m	1,76 kN/m
Support spacing 3.0 m	1,2 kN/m
Support spacing 3.5 m	0,84 kN/m
Support spacing 4.0 m	0,8 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	548 cm²
Usable cross-section	54800 mm²
Wide-span version	no
Width	20 in
Width	500 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 110 FS	3000 mm	100 mm	1.5 mm	no	Steel	Strip galvanized	6061109	m	3 m
SKS 120 FS	3000 mm	200 mm	1.5 mm	no	Steel	Strip galvanized	6061206	m	3 m
SKS 130 FS	3000 mm	300 mm	1.5 mm	no	Steel	Strip galvanized	6061303	m	3 m
SKS 140 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6061400	m	3 m
SKS 150 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6061508	m	3 m
SKS 155 FS	3000 mm	550 mm	1.5 mm	no	Steel	Strip galvanized	6061559	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight and angle connector 110 FS	RLVL 110 FS	6067131	piece	10 piece
Joint plate FS	SSLB 500 FS	7070225	piece	20 piece
Cover with turn buckle FS	DRL 500 FS	6052509	m	3 m
Separating retainer 110 FS	TSG 110 FS	6062122	m	3 m
45° bend 110 FS	RB 45 150 FS	7000707	piece	1 piece
