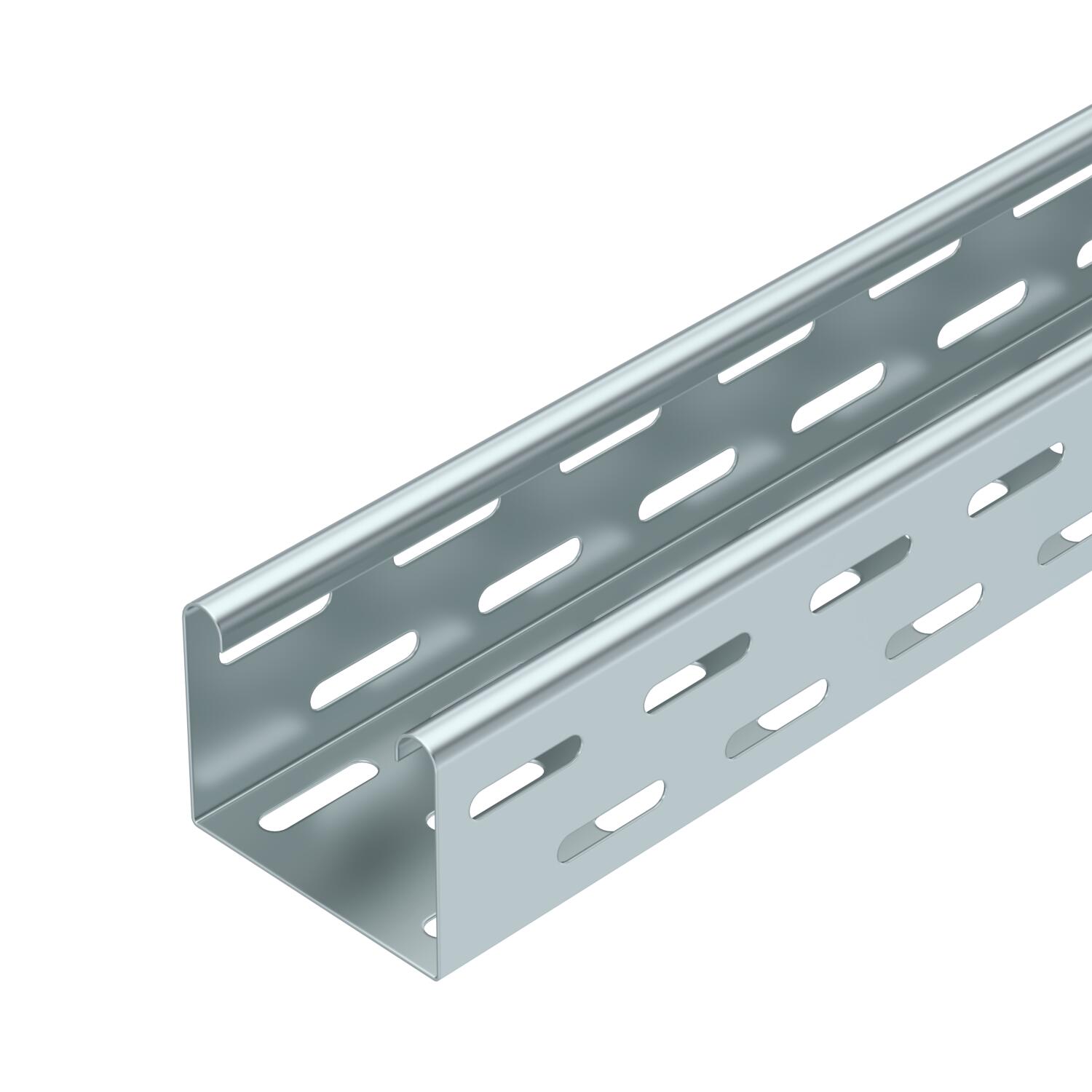

Cable tray RKS 60 FS perforated, w/o floor beading
Item no. 6055893 | EAN 4012196388691
- Product description
-
Product descriptionRKS 60 = Rational cable tray system with 60 mm side height (unbeaded base plate).
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Base perforation 1 Colour zinc Connector version Supplied connectors CO₂ Footprint (GWP) Cradle-to-Gate 3,0579 kg CO₂e / 1 Meter Dimension 60x75x3000 Dimension 60 x 75 Dimension B 75 mm Dimension L 3000 mm Height 2 in Height 60 mm Length 10 ft Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 0,03 in Plate thickness 0,75 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.0 m 1,3 kN/m Support spacing 1.5 m 0,65 kN/m Support spacing 2.0 m 0,4 kN/m Support spacing 2.5 m 0,25 kN/m Support spacing 3.0 m 0,15 kN/m Surface Strip galvanized Type of connector, cable support system Screwed Usable cross-section 42 cm² Usable cross-section 4200 mm² Wide-span version no Width 75 mm Width 3 in With cover no Technical data

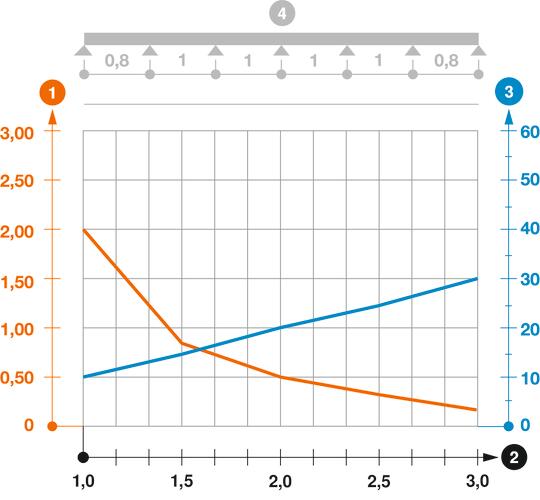

Load diagram, cable tray, type RKS 60
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no. Quantity SSU
Straight connector FS
RLVK 60 FS 6067093 10 piece
Separating retainer 60 FS
TSG 60 FS 6062068 3 m - Downloads
-
