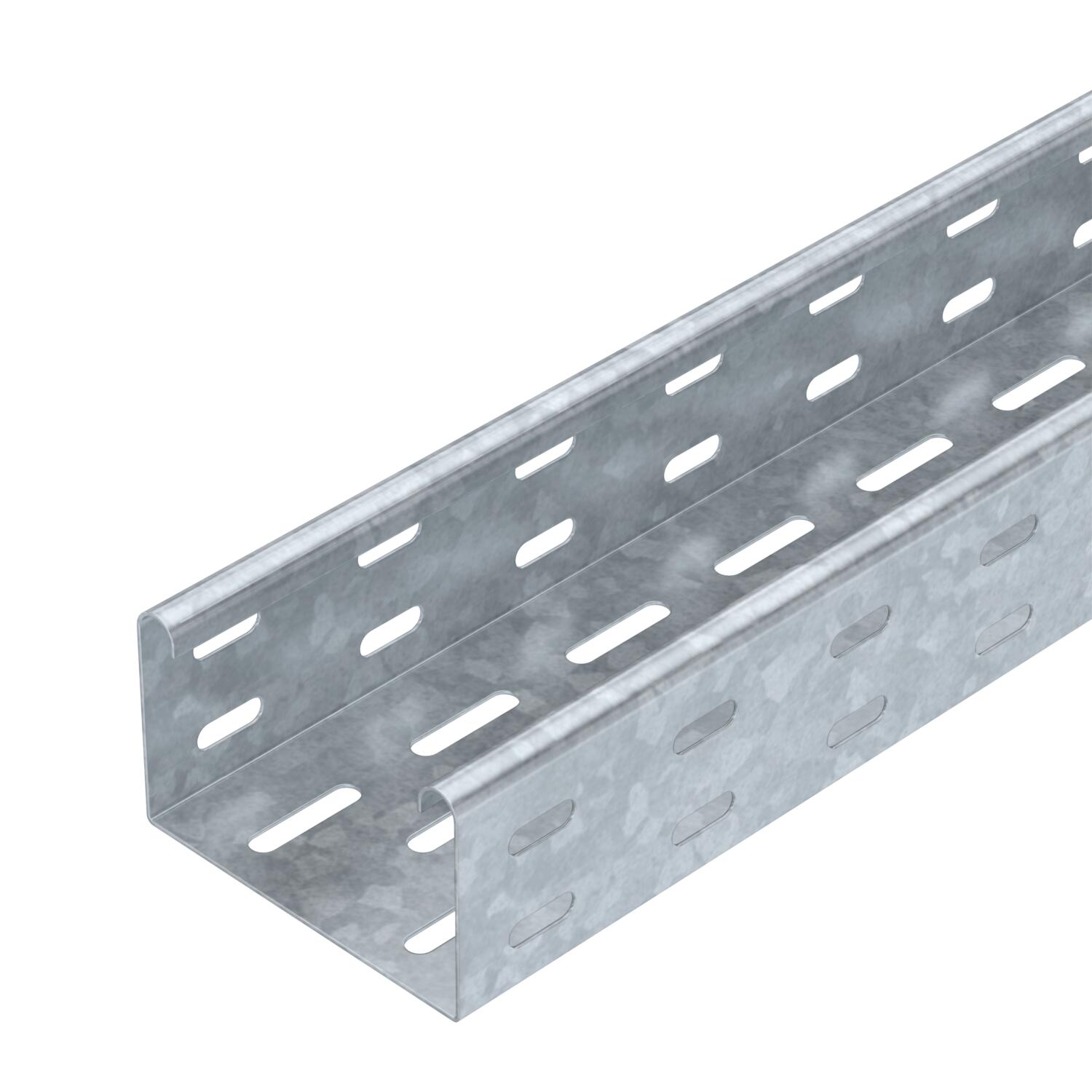

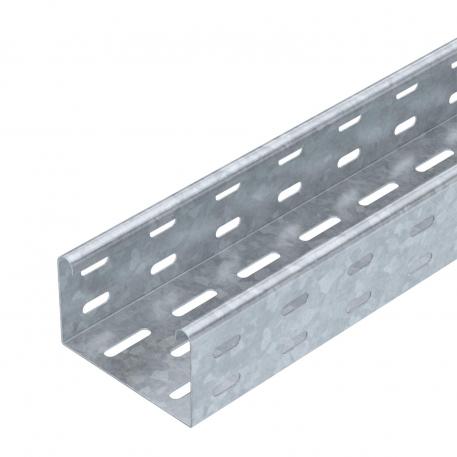

Cable tray MKS 60 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

MKS 60 = Medium-duty cable tray system with a side height of 60 mm.

Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	4,5416 kg CO₂e / 1 Meter

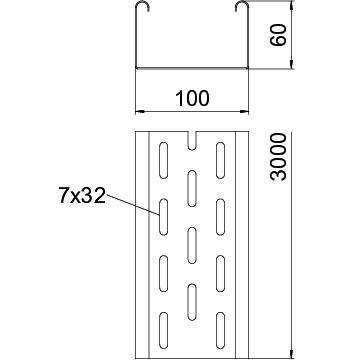

Dimension	60 x 100
Dimension	60x100x3000
Dimension B	100 mm
Height	2 in
Height	60 mm
Length	10 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	100 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

Plate thickness	0,04 in
Plate thickness	1 mm
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.5 m	1,5 kN/m
Support spacing 1.75 m	1,25 kN/m
Support spacing 2.0 m	1 kN/m
Support spacing 2.5 m	0,5 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	58 cm²
Usable cross-section	5800 mm²
Wide-span version	no
Width	100 mm
Width	4 in
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKS 610 FT	3000 mm	100 mm	1 mm	no	Steel	Hot-dip galvanised	6055532	m	3 m
MKS 615 FT	3000 mm	150 mm	1 mm	no	Steel	Hot-dip galvanised	6055559	m	3 m
MKS 620 FT	3000 mm	200 mm	1 mm	no	Steel	Hot-dip galvanised	6055575	m	3 m

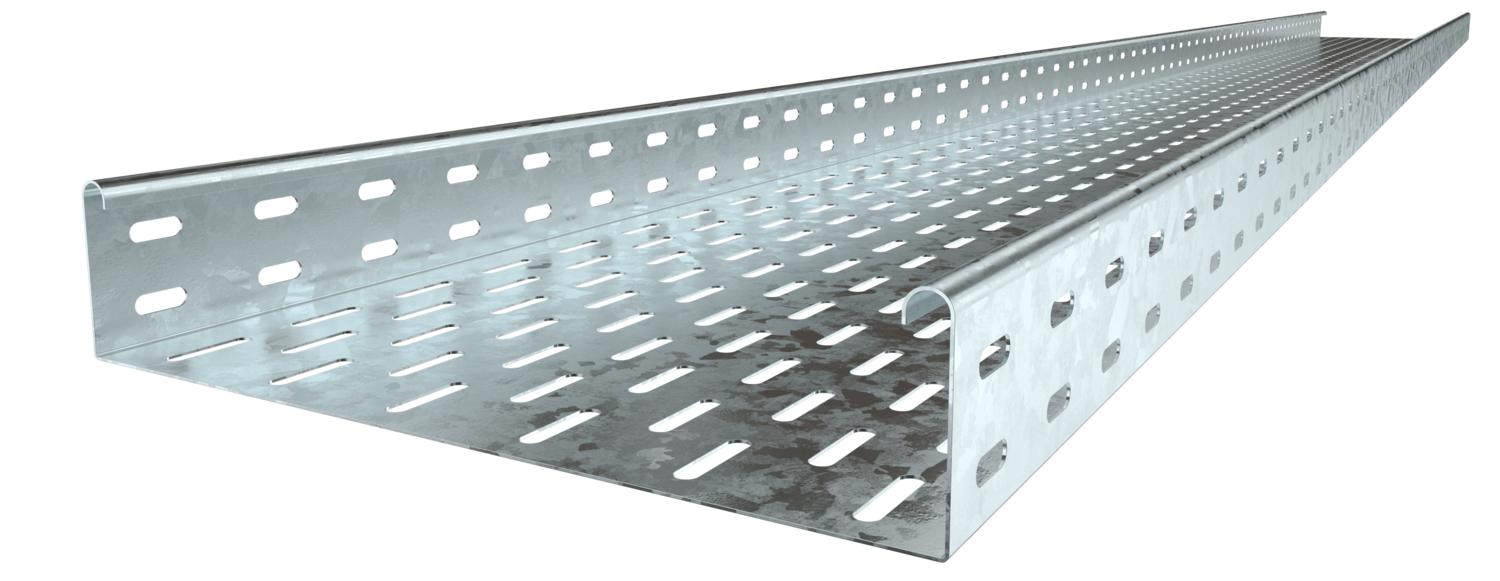

MKS 630 FT	3000 mm	300 mm	1 mm	no	Steel	Hot-dip galvanised	6055613	m	3 m
MKS 640 FT	3000 mm	400 mm	1 mm	no	Steel	Hot-dip galvanised	6055664	m	3 m
MKS 650 FT	3000 mm	500 mm	1 mm	no	Steel	Hot-dip galvanised	6055699	m	3 m
MKS 660 FT	3000 mm	600 mm	1 mm	no	Steel	Hot-dip galvanised	6055710	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	RLVK 60 FT	6067603	piece	10 piece
Joint plate DD	SSLB 100 DD	7070306	piece	20 piece
Cover with turn buckle FT	DRL 100 FT	6051340	m	3 m
Cover with turn buckle DD	DRL 100 DD	6052703	m	3 m
Barrier strip 60 DD	TSG 60 DD	6062327	m	3 m
