Note: This article is discontinued. You can find the current article here: 6053203 / Cable tray MKS 35 FT

Cable tray MKS 35 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

MKS 35 = Medium duty cable tray system with a side height of 35 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	4,515 kg CO₂e / 1 Meter
Dimension	35x150x3000
Dimension	35 x 150
Dimension B	150 mm
Height	35 mm
Length	10 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	0,04 in
Plate thickness	1 mm

Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.0 m	1,2 kN/m
Support spacing 1.5 m	0,75 kN/m
Support spacing 2.0 m	0,55 kN/m
Support spacing 2.5 m	0,3 kN/m
Support spacing 3.0 m	0,2 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	5050 mm²
Usable cross-section	50,5 cm²
Wide-span version	no
Width	6 in
Width	150 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKS 310 FT	3000 mm	100 mm	1 mm	no	Steel	Hot-dip galvanised	6053106	m	3 m
MKS 315 FT	3000 mm	150 mm	1 mm	no	Steel	Hot-dip galvanised	6053165	m	3 m
MKS 320 FT	3000 mm	200 mm	1 mm	no	Steel	Hot-dip galvanised	6053203	m	3 m
MKS 330 FT	3000 mm	300 mm	1 mm	no	Steel	Hot-dip galvanised	6053300	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	RLVK 35 FT	6067301	piece	10 piece
Cover with turn buckle FT	DRL 150 FT	6051359	m	3 m
Cover with turn buckle DD	DRL 150 DD	6052706	m	3 m
Barrier strip 30 DD	TSG 30 DD	6062314	m	3 m

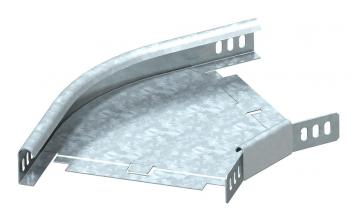

45° bend 35 FT	RB 45 315 FT	7065167	piece	1 piece
