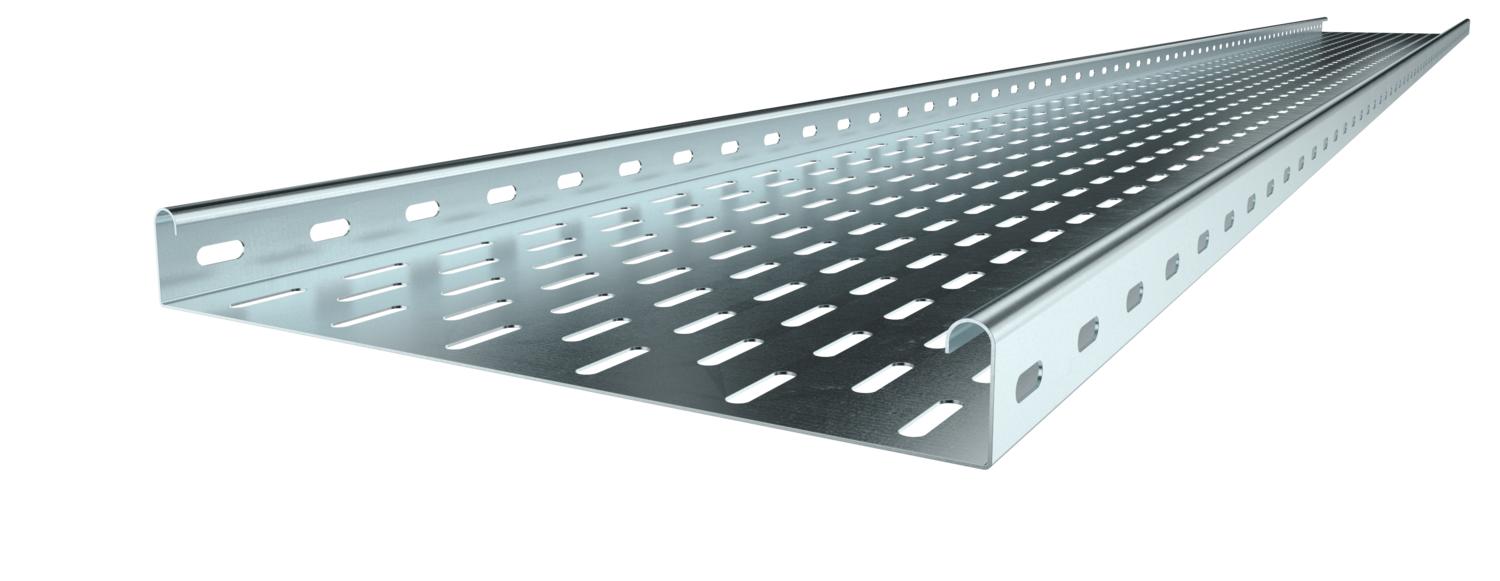

Cable tray MKS 35 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

MKS 35 = Medium duty cable tray system with a side height of 35 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Base perforation	1
Colour	zinc
Connector version	Supplied connectors
CO₂ Footprint (GWP) Cradle-to-Gate	5,487 kg CO₂e / 1 Meter
Dimension	35 x 200
Dimension	35x200x3000
Dimension B	200 mm
Height	35 mm
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1 mm
Plate thickness	0,04 in

Rustproof steel, pickled	no
Side perforation	yes
Supplied accessories	RV 35 straight connector set
Support spacing 1.0 m	1,1 kN/m
Support spacing 1.5 m	0,5 kN/m
Support spacing 2.0 m	0,3 kN/m
Support spacing 2.5 m	0,3 kN/m
Support spacing 3.0 m	0,2 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	68 cm²
Usable cross-section	6800 mm²
Wide-span version	no
Width	8 in
Width	200 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKS 305 FS	3000 mm	50 mm	1 mm	no	Steel	Strip galvanized	6053513	m	3 m
MKS 310 FS	3000 mm	100 mm	1 mm	no	Steel	Strip galvanized	6053548	m	3 m
MKS 315 FS	3000 mm	150 mm	1 mm	no	Steel	Strip galvanized	6053572	m	3 m
MKS 320 FS	3000 mm	200 mm	1 mm	no	Steel	Strip galvanized	6053599	m	3 m
MKS 330 FS	3000 mm	300 mm	1 mm	no	Steel	Strip galvanized	6053637	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FS	RLVK 35 FS	6067085	piece	10 piece

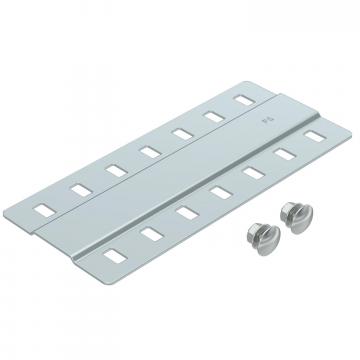

Joint plate FS	SSLB 200 FS	7070213	piece	20 piece
Cover with turn buckle FS	DRL 200 FS	6052207	m	3 m
Separating retainer 30 FS	TSG 30 FS	6062050	m	3 m
45° bend 35 FS	RB 45 320 FS	6043712	piece	1 piece
90° bend 35 FS	RB 90 320 FS	6043127	piece	1 piece
