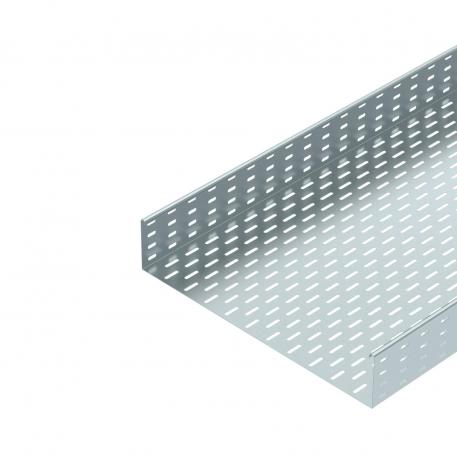

Cable tray MKS 110 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

MKS 110 = medium-duty cable tray system with a side height of 110 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Supplied connectors
CO₂ Footprint (GWP) Cradle-to-Gate	14,958 kg CO₂e / 1 Meter
Dimension	110 x 550
Dimension	110x550x3000
Dimension B	550 mm
Height	4 in
Height	110 mm
Length	10 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	550 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1 mm

Plate thickness	0,04 in
Rustproof steel, pickled	no
Side perforation	yes
Supplied accessories	RLVL 110 straight connector
Support spacing 1.5 m	1,85 kN/m
Support spacing 2.0 m	1,3 kN/m
Support spacing 2.5 m	0,75 kN/m
Support spacing 3.0 m	0,6 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	603 cm²
Usable cross-section	60300 mm²
Wide-span version	no
Width	550 mm
Width	22 in
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKS 110 FS	3000 mm	100 mm	1 mm	no	Steel	Strip galvanized	6060102	m	3 m
MKS 120 FS	3000 mm	200 mm	1 mm	no	Steel	Strip galvanized	6060196	m	3 m
MKS 130 FS	3000 mm	300 mm	1 mm	no	Steel	Strip galvanized	6060307	m	3 m
MKS 140 FS	3000 mm	400 mm	1 mm	no	Steel	Strip galvanized	6060404	m	3 m
MKS 150 FS	3000 mm	500 mm	1 mm	no	Steel	Strip galvanized	6060412	m	3 m
MKS 155 FS	3000 mm	550 mm	1 mm	no	Steel	Strip galvanized	6060528	m	3 m
