Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	1,668 kg CO₂e / 1 Meter
Dimension	15 x 50
Dimension	15x50x2000
Dimension B	50 mm
Height	15 mm
Length	2000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes

NATO hole pattern	yes
Plate thickness	1,25 mm
Rustproof steel, pickled	no
Side perforation	no
Support spacing 1.0 m	0,6 kN/m
Support spacing 1.5 m	0,15 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Wide-span version	no
Width	50 mm
With cover	no

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKR 15 050 FT	2000 mm	50 mm	1.25 mm	no	Steel	Hot-dip galvanised	6045057	m	2 m
MKR 15 075 FT	2000 mm	75 mm	1.25 mm	no	Steel	Hot-dip galvanised	6045073	m	2 m
MKR 15 100 FT	2000 mm	100 mm	1.25 mm	no	Steel	Hot-dip galvanised	6045103	m	2 m
MKR 15 125 FT	2000 mm	125 mm	1.25 mm	no	Steel	Hot-dip galvanised	6045138	m	2 m
MKR 15 150 FT	2000 mm	150 mm	1.5 mm	no	Steel	Hot-dip galvanised	6045154	m	2 m
MKR 15 200 FT	2000 mm	200 mm	1.5 mm	no	Steel	Hot-dip galvanised	6045200	m	2 m
MKR 15 250 FT	2000 mm	250 mm	1.5 mm	no	Steel	Hot-dip galvanised	6045251	m	2 m
MKR 15 300 FT	2000 mm	300 mm	1.5 mm	no	Steel	Hot-dip galvanised	6045308	m	2 m

Products	Types	Item no.	Quantity	SSU
Straight connector FT	MKR SV FT	6066240	piece	25 piece
Corner connector	MKR EV FT	7060041	piece	1 piece

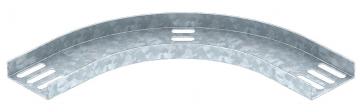

90° bend 15 FT, shipbuilding	MKRB 90 15 050FT	7061145	piece	1 piece

Products	Types	Item no.	Quantity	SSU

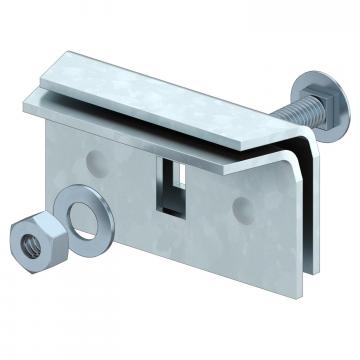

Clamp connector	MKR KV FT	6066143	piece	25 piece
Tightening strap A2K Jet black	SBR 8 A2K	6490192	m	40 m
Tightening strap FSK, Stone grey	SBR 15 FSK	6490280	m	25 m

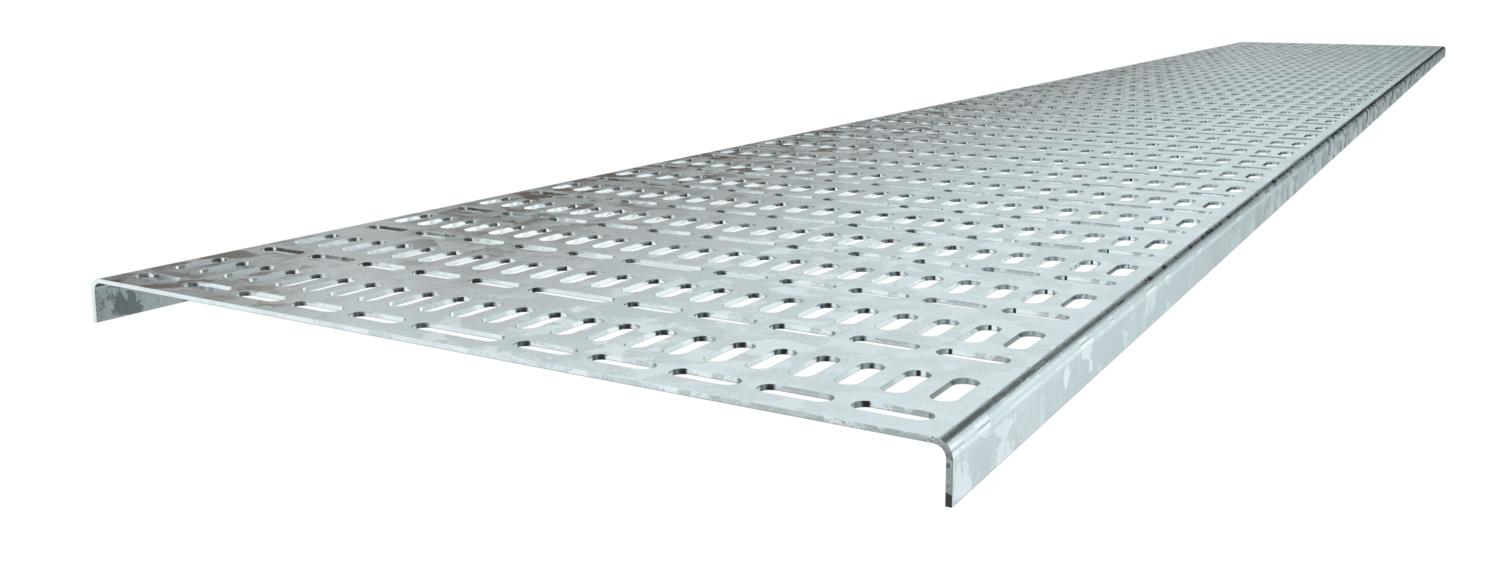

Cable tray, marine standard FT

All types
