Cable tray, marine standard FT

Item no. 6045200 | EAN 4012196053957

2000 mm
no
Steel
Hot-dip galvanised
Product description

Product description

Cable tray for use in ship construction, produced according to the marine standard VG 88900-1.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, marine standard
Technical data

Technical data

Connector version Without connectors
Dimension 15x200x2000
Dimension 15 x 200
Dimension B 200 mm
Height 15 mm
Length 2000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
NATO hole pattern yes
Plate thickness 1,5 mm
Rustproof steel, pickled no
Side perforation no
Support spacing 1.0 m 0,7 kN/m
Support spacing 1.5 m 0,2 kN/m
Surface Hot-dip galvanised
Type of connector, cable support system Screwed
Wide-span version no
Width 200 mm
With cover no
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
MKR 15 050 FT 2000 mm 50 mm 1.25 mm no Steel Hot-dip galvanised 6045057
2 m
MKR 15 075 FT 2000 mm 75 mm 1.25 mm no Steel Hot-dip galvanised 6045073
2 m
MKR 15 100 FT 2000 mm 100 mm 1.25 mm no Steel Hot-dip galvanised 6045103
2 m
MKR 15 125 FT 2000 mm 125 mm 1.25 mm no Steel Hot-dip galvanised 6045138
2 m
MKR 15 150 FT 2000 mm 150 mm 1.5 mm no Steel Hot-dip galvanised 6045154
2 m
MKR 15 200 FT 2000 mm 200 mm 1.5 mm no Steel Hot-dip galvanised 6045200
2 m
MKR 15 250 FT 2000 mm 250 mm 1.5 mm no Steel Hot-dip galvanised 6045251
2 m
MKR 15 300 FT 2000 mm 300 mm 1.5 mm no Steel Hot-dip galvanised 6045308
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Clamp connector Clamp connector MKR KV FT 6066143
25 piece
Straight connector FT Straight connector FT MKR SV FT 6066240
25 piece
Corner connector Corner connector MKR EV FT 7060041
1 piece

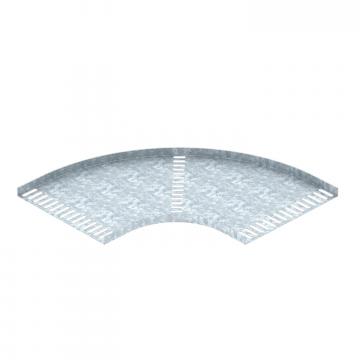

90° bend 15 FT, shipbuilding 90° bend 15 FT, shipbuilding MKRB 90 15 200FT 7061447
1 piece

Mounting accessories

Products Types Item no. Quantity SSU
Tightening strap A2K Jet black Tightening strap A2K Jet black SBR 8 A2K 6490192
40 m
Tightening strap FSK, Stone grey Tightening strap FSK, Stone grey SBR 15 FSK 6490280
25 m
