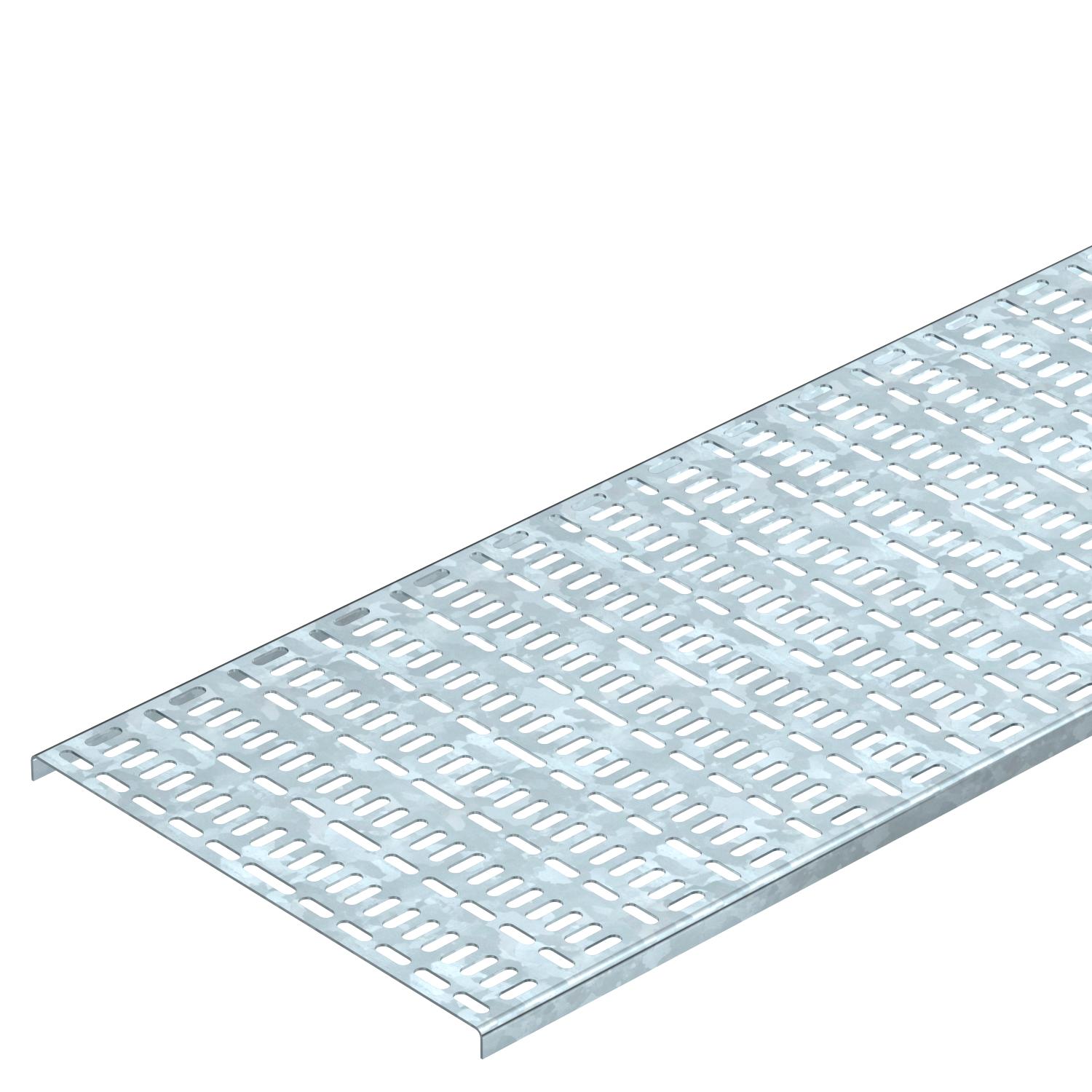

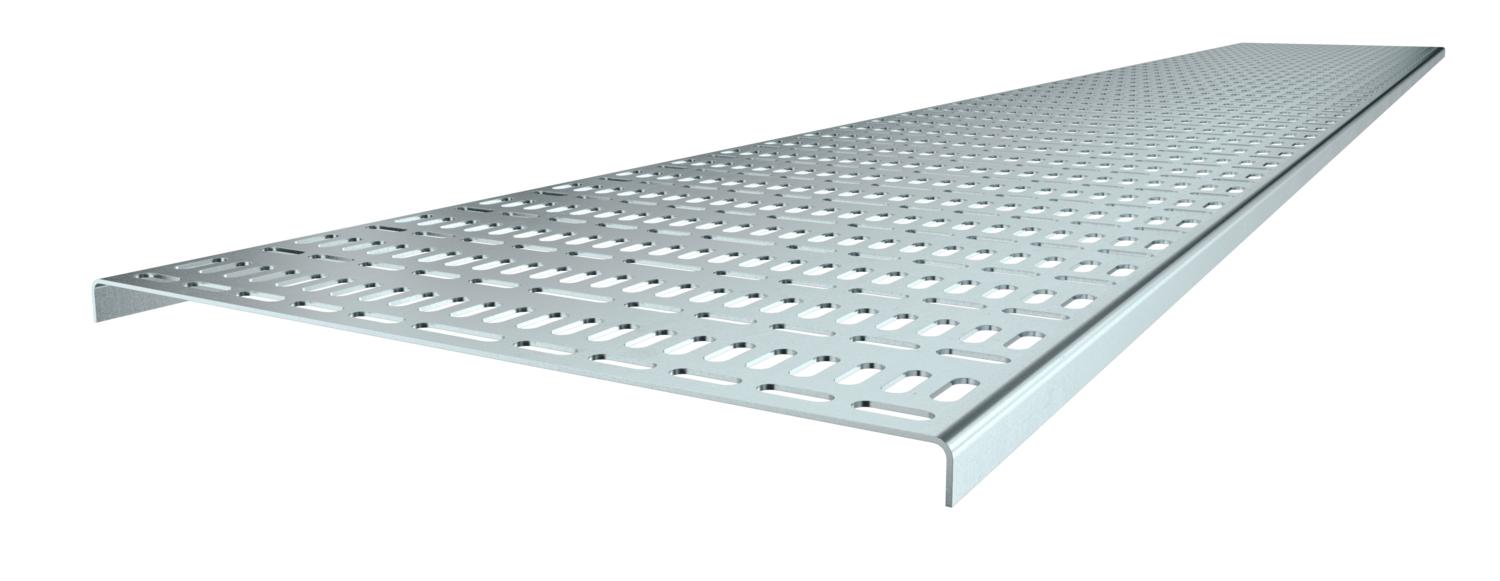

Cable tray, marine standard FS

Item no. / Types

Length	2000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

Cable tray for use in ship construction, produced according to the marine standard VG 88900-1.

Technical data

Connector version	Without connectors

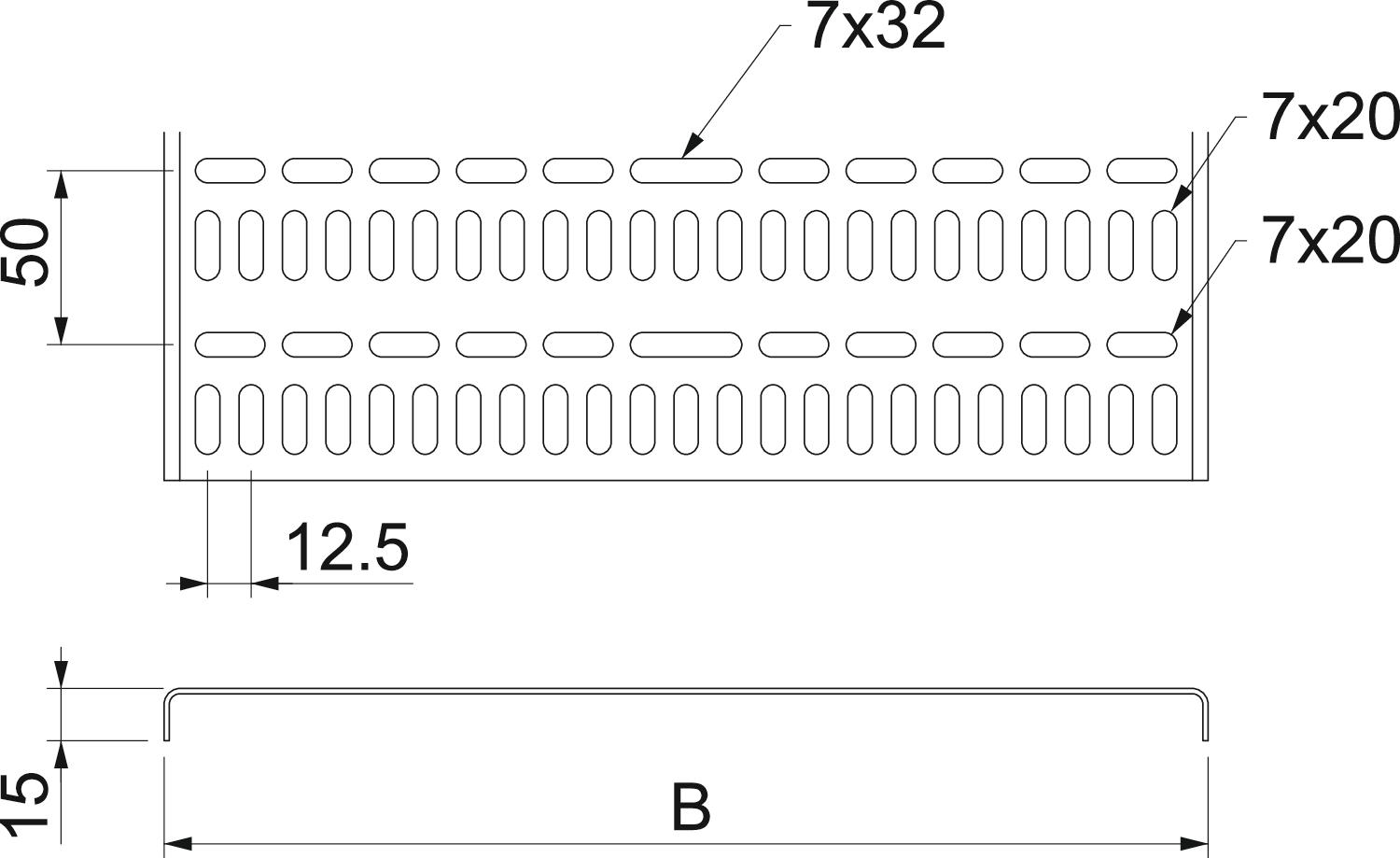

Dimension	15x50x2000
Dimension	15 x 50
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	yes

Plate thickness	1 mm
Rustproof steel, pickled	no
Side perforation	no
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Wide-span version	no
With cover	no

Dimension B	50 mm
Height	15 mm

Length	2000 mm
Width	50 mm

Support spacing 1.0 m	0,4 kN/m

Support spacing 1.5 m	0,1 kN/m

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKR 15 050 FS	2000 mm	50 mm	1 mm	no	Steel	Strip galvanized	6045952	m	2 m
MKR 15 075 FS	2000 mm	75 mm	1 mm	no	Steel	Strip galvanized	6045960	m	2 m
MKR 15 100 FS	2000 mm	100 mm	1 mm	no	Steel	Strip galvanized	6045979	m	2 m
MKR 15 150 FS	2000 mm	150 mm	1 mm	no	Steel	Strip galvanized	6045995	m	2 m
MKR 15 200 FS	2000 mm	200 mm	1 mm	no	Steel	Strip galvanized	6046002	m	2 m

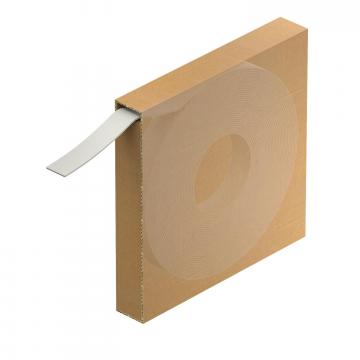

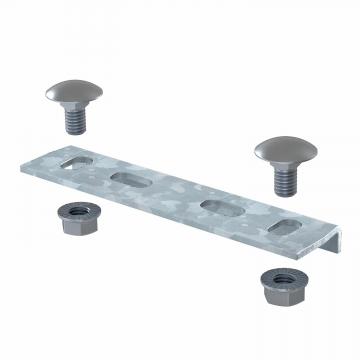

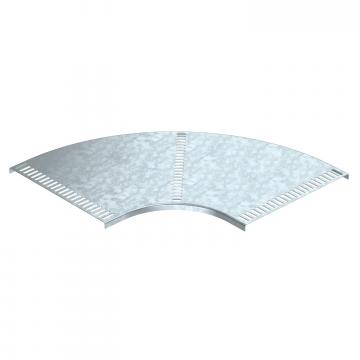

Accessories
