Cable tray, marine standard, ALU

Item no. 6045731 | EAN 4012196382156

2000 mm
no
Aluminium
Product description

Product description

Cable tray for use in ship construction, produced according to the marine standard VG 88900-1.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, marine standard
Technical data

Technical data

Connector version Without connectors

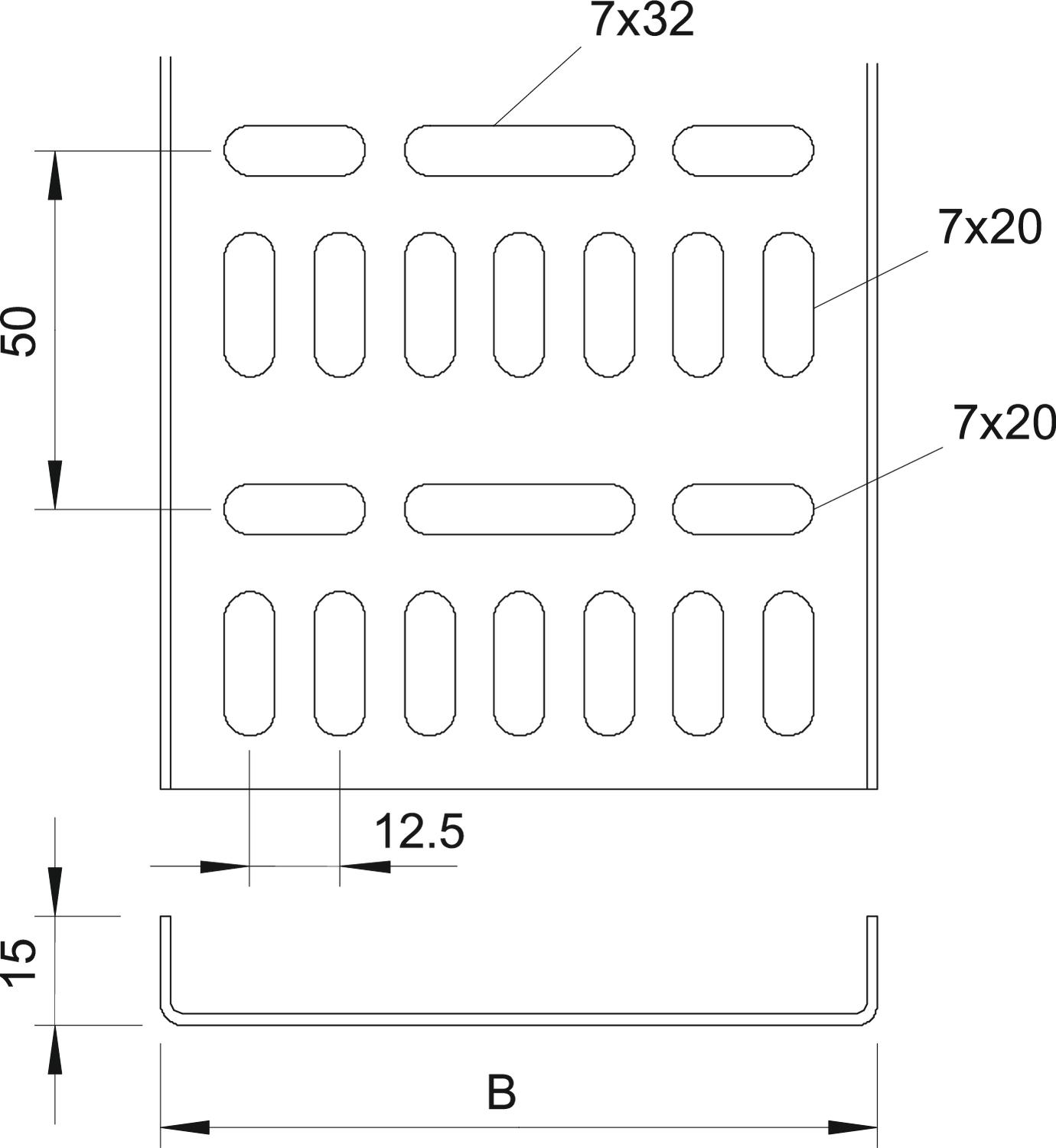

Dimension 15x125x2000
Dimension 15 x 125
Dimension B 125 mm
Height 15 mm
Length 2000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Aluminium
Mounting perforation in base yes
NATO hole pattern yes
Plate thickness 1,5 mm
Rustproof steel, pickled no
Side perforation no
Support spacing 1.0 m 0,35 kN/m
Support spacing 1.5 m 0,1 kN/m
Type of connector, cable support system Screwed
Wide-span version no
Width 125 mm
With cover no
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Item no. Quantity SSU
MKR 15 050 ALU 2000 mm 50 mm 1.5 mm no Aluminium 6045707
2 m
MKR 15 075 ALU 2000 mm 75 mm 1.5 mm no Aluminium 6045715
2 m
MKR 15 100 ALU 2000 mm 100 mm 1.5 mm no Aluminium 6045723
2 m
MKR 15 125 ALU 2000 mm 125 mm 1.5 mm no Aluminium 6045731
2 m
MKR 15 150 ALU 2000 mm 150 mm 1.5 mm no Aluminium 6045758
2 m
MKR 15 200 ALU 2000 mm 200 mm 2 mm no Aluminium 6045766
2 m
MKR 15 250 ALU 2000 mm 250 mm 2 mm no Aluminium 6045774
2 m
MKR 15 300 ALU 2000 mm 300 mm 2 mm no Aluminium 6045782
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Screw connector ALU Screw connector ALU MKR SV ALU 6066248
25 piece
