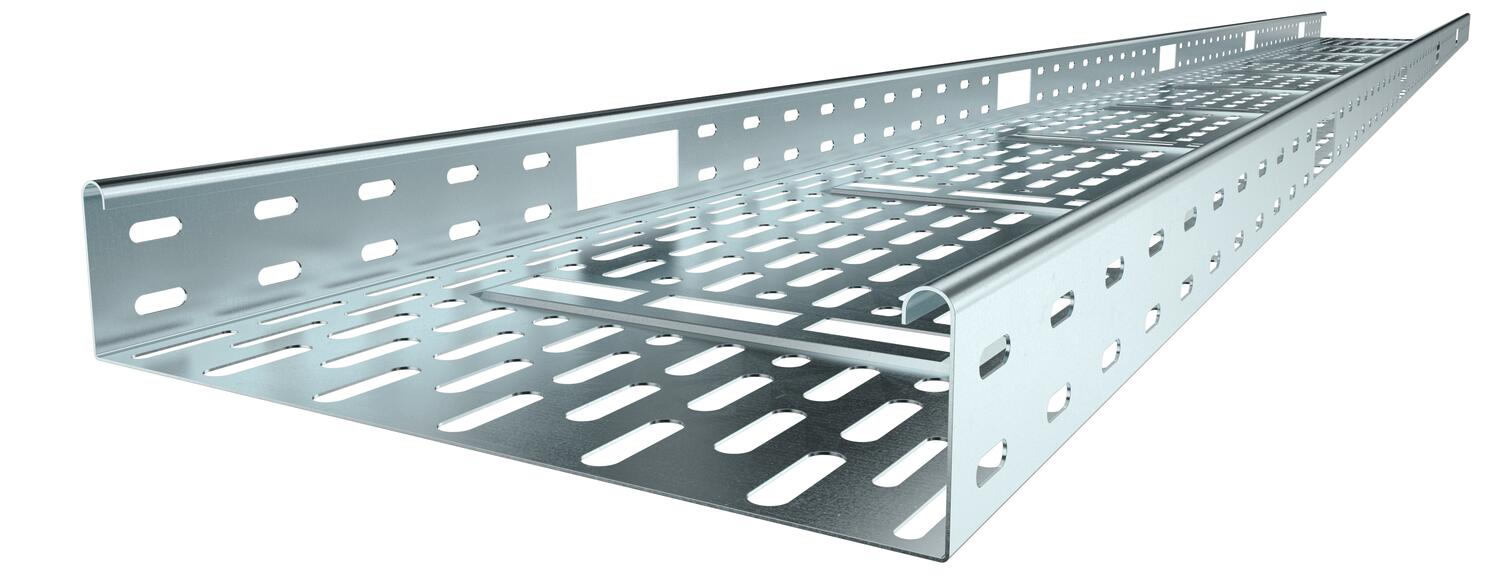

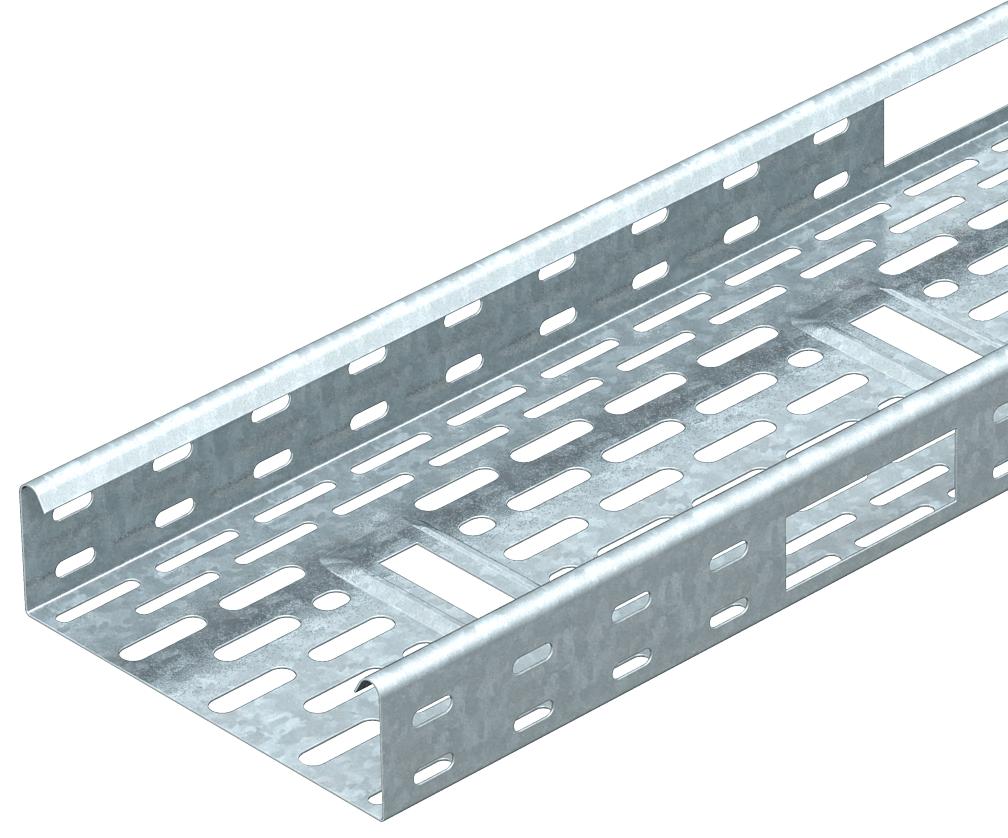

Cable tray IKS 60 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

IKS 60 = installation cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Connector version	Without connectors

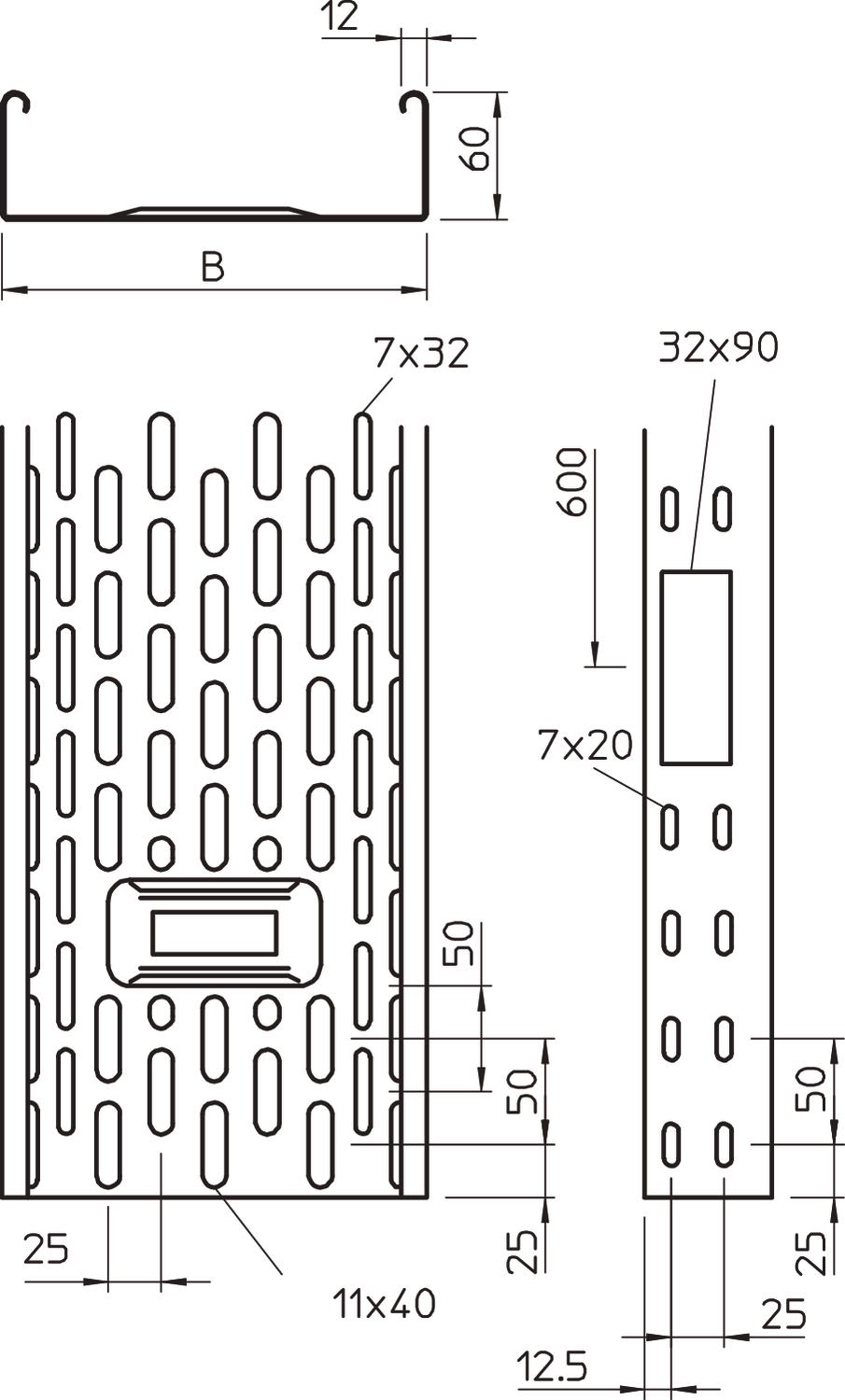

Dimension	60x100x3000
Dimension	60 x 100
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1 mm
Plate thickness	0,04 in

Rustproof steel, pickled	no
Side perforation	yes
Sprinkler system use	yes
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	58 cm²
Usable cross-section	5800 mm²
Wide-span version	no
With cover	no

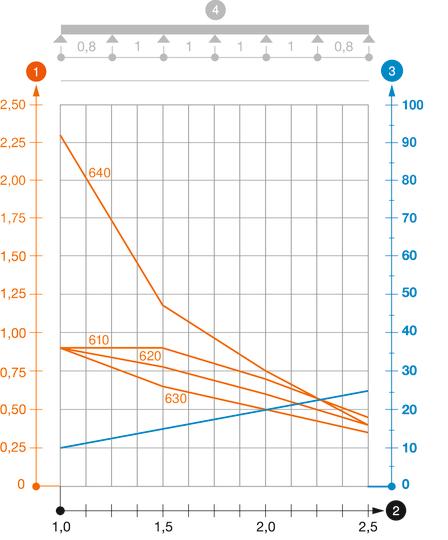

Support spacing 1.0 m	0,9 kN/m
Support spacing 1.5 m	0,9 kN/m

Support spacing 2.0 m	0,7 kN/m
Support spacing 2.5 m	0,45 kN/m

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
IKS 610 FS	3000 mm	100 mm	1 mm	no	Steel	Strip galvanized	6087116	m	3 m
IKS 620 FS	3000 mm	200 mm	1 mm	no	Steel	Strip galvanized	6087132	m	3 m
IKS 630 FS	3000 mm	300 mm	1 mm	no	Steel	Strip galvanized	6087140	m	3 m
IKS 640 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6087159	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	RLVK 60 FT	6067603	piece	10 piece
Joint plate DD	SSLB 100 DD	7070306	piece	20 piece
Cover with turn buckle DD	DRL 100 DD	6052703	m	3 m
Barrier strip 60 DD	TSG 60 DD	6062327	m	3 m
45° bend 60 FS	RB 45 610 FS	6043763	piece	1 piece
90° bend 60 FS	RB 90 610 FS	6043216	piece	1 piece
