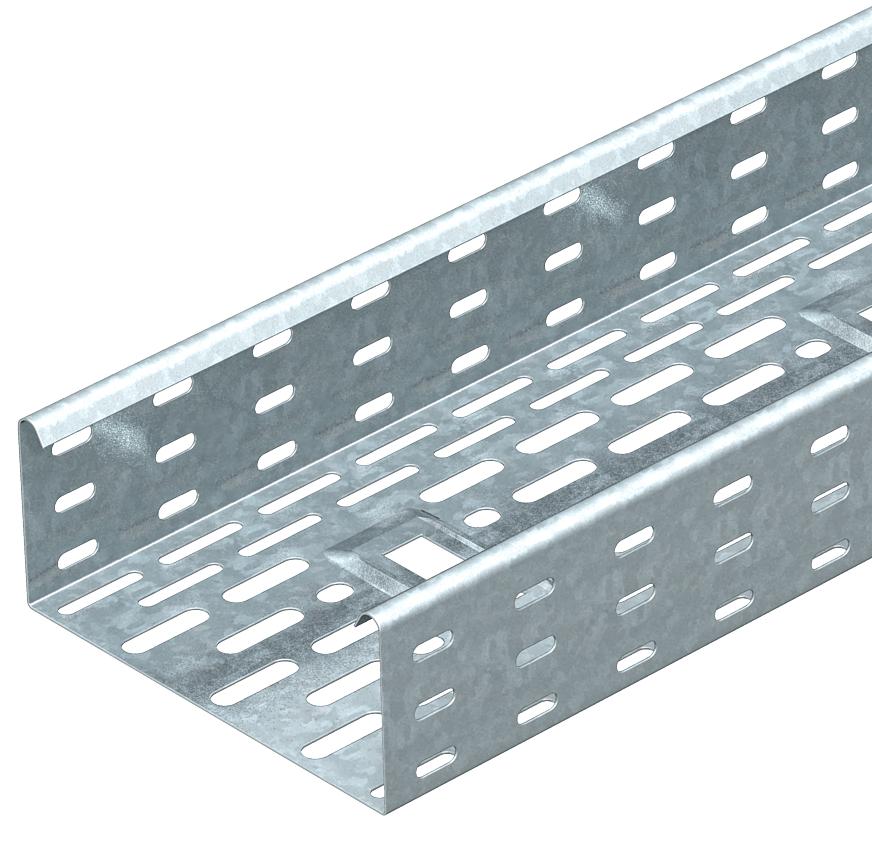

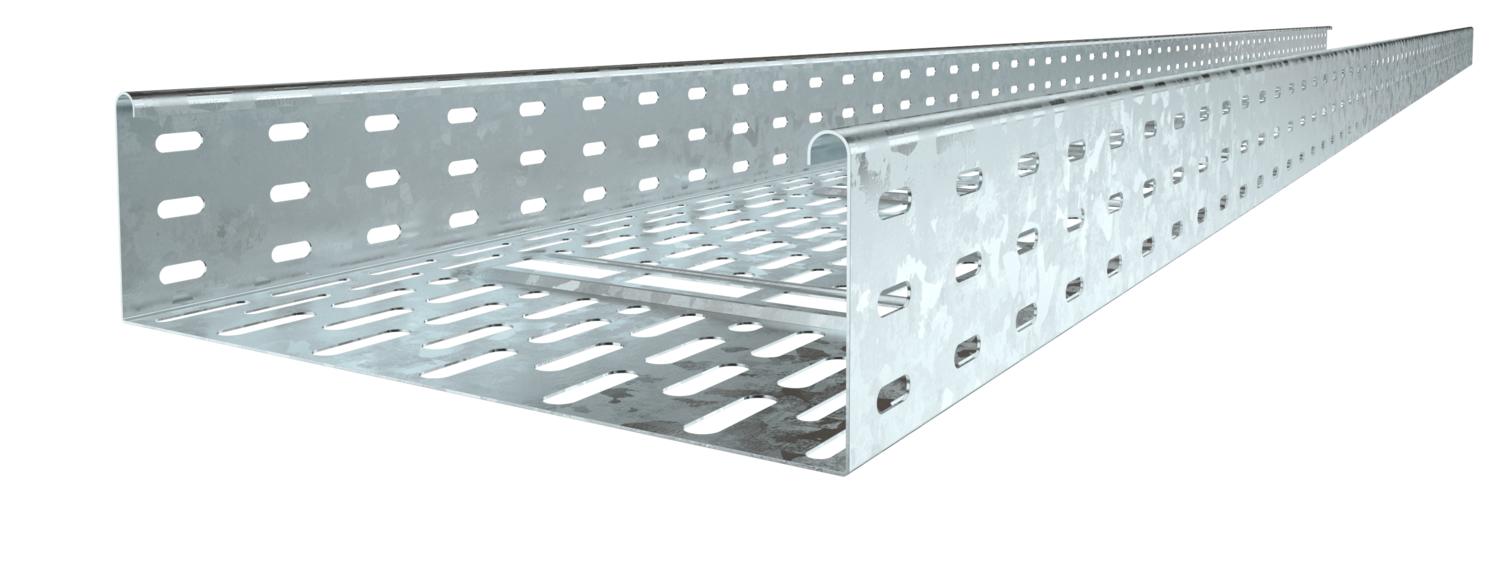

DKS 85 = perforated cable tray system with 85 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Connector version Without connectors Dimension 85 x 100 Dimension 85x100x3000 Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1 mm Plate thickness 0,04 in Rustproof steel, pickled no Side perforation yes Sprinkler system use yes Surface Hot-dip galvanised Type of connector, cable support system Screwed Usable cross-section 8300 mm² Usable cross-section 83 cm² Wide-span version no With cover no Dimensions
Dimension B 100 mm Height 3 in Height 85 mm Length 3000 mm Length 10 ft Width 4 in Width 100 mm Loads
Support spacing 1.5 m 2 kN/m Support spacing 1.75 m 1,5 kN/m Support spacing 2.0 m 1,1 kN/m Support spacing 2.5 m 0,65 kN/m Support spacing 3.0 m 0,5 kN/m Technical data

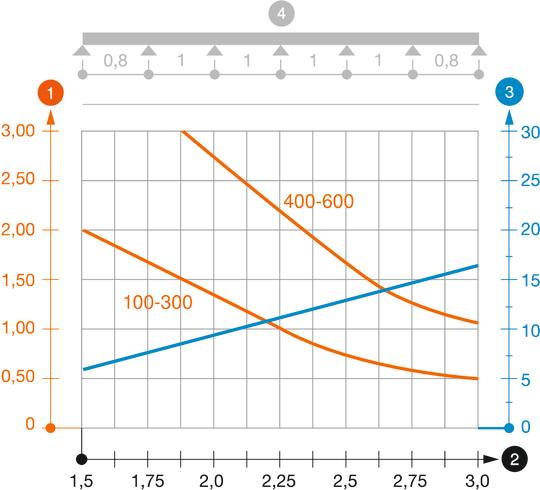

Load diagram, cable tray, type DKS 85
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
