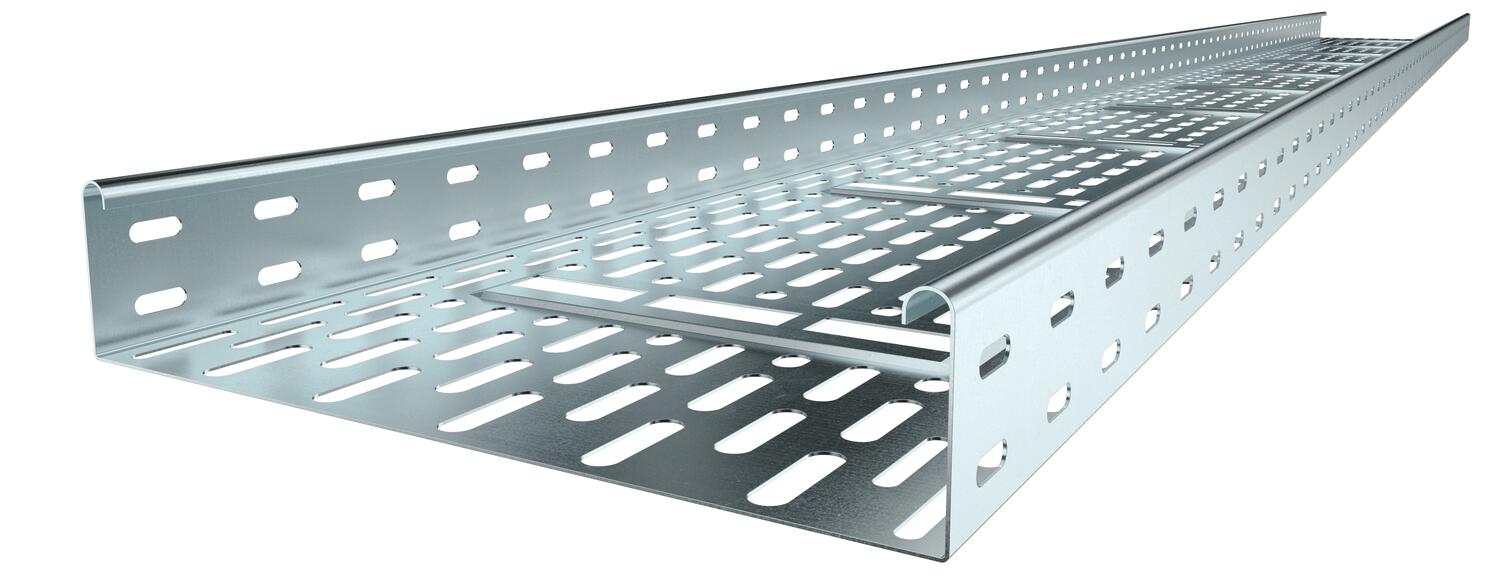

Cable tray DKS 60 FS

Item no. 6085016 | EAN 4012196069736

3000 mm
no
Steel
Strip galvanized
Product description

Product description

DKS 60 = perforated cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Connector version Without connectors
Dimension 60x100x3000
Dimension 60 x 100
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 0,04 in
Plate thickness 1 mm
Rustproof steel, pickled no
Side perforation yes
Sprinkler system use yes
Surface Strip galvanized
Type of connector, cable support system Screwed
Usable cross-section 5800 mm²
Usable cross-section 58 cm²
Wide-span version no
With cover no

Dimensions

Dimension B 100 mm
Height 60 mm
Height 2 in
Length 3000 mm
Length 10 ft
Width 4 in
Width 100 mm

Loads

Support spacing 1.5 m 1,75 kN/m
Support spacing 2.0 m 0,95 kN/m
Support spacing 2.5 m 0,5 kN/m
Support spacing 3.0 m 0,4 kN/m

Technical data

Load diagram, cable tray, type DKS 60

Load diagram, cable tray, type DKS 60
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
DKS 610 FS 3000 mm 100 mm 1 mm no Steel Strip galvanized 6085016
3 m
DKS 620 FS 3000 mm 200 mm 1 mm no Steel Strip galvanized 6085032
3 m
DKS 630 FS 3000 mm 300 mm 1 mm no Steel Strip galvanized 6085059
3 m
DKS 640 FS 3000 mm 400 mm 1.5 mm no Steel Strip galvanized 6085202
3 m
DKS 650 FS 3000 mm 500 mm 1.5 mm no Steel Strip galvanized 6085229
3 m
DKS 660 FS 3000 mm 600 mm 1.5 mm no Steel Strip galvanized 6085245
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Straight connector FS Straight connector FS RLVK 60 FS 6067093
10 piece
Straight connector FT Straight connector FT RLVK 60 FT 6067603
10 piece
Joint plate FS Joint plate FS SSLB 100 FS 7070205
20 piece
Joint plate DD Joint plate DD SSLB 100 DD 7070306
20 piece
Cover with turn buckle FS Cover with turn buckle FS DRL 100 FS 6052096
3 m
Cover with turn buckle DD Cover with turn buckle DD DRL 100 DD 6052703
3 m
Separating retainer 60 FS Separating retainer 60 FS TSG 60 FS 6062068
3 m
Barrier strip 60 DD Barrier strip 60 DD TSG 60 DD 6062327
3 m
45° bend 60 FS 45° bend 60 FS RB 45 610 FS 6043763
1 piece
90° bend 60 FS 90° bend 60 FS RB 90 610 FS 6043216
1 piece
Downloads

Download

Download
Download

Declaration of conformity DKS 610 FS / 6085016 , 0.17MB , pdf
