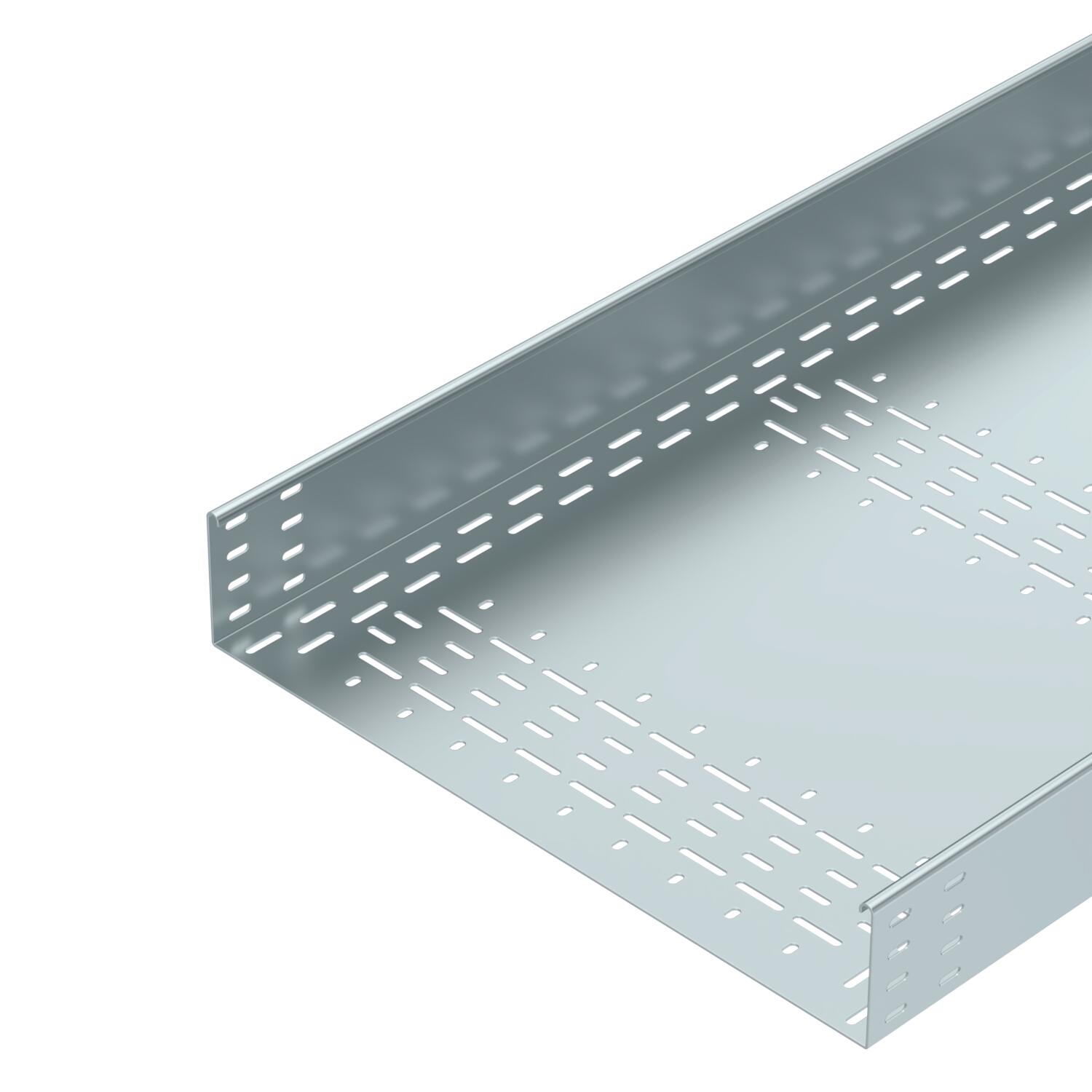

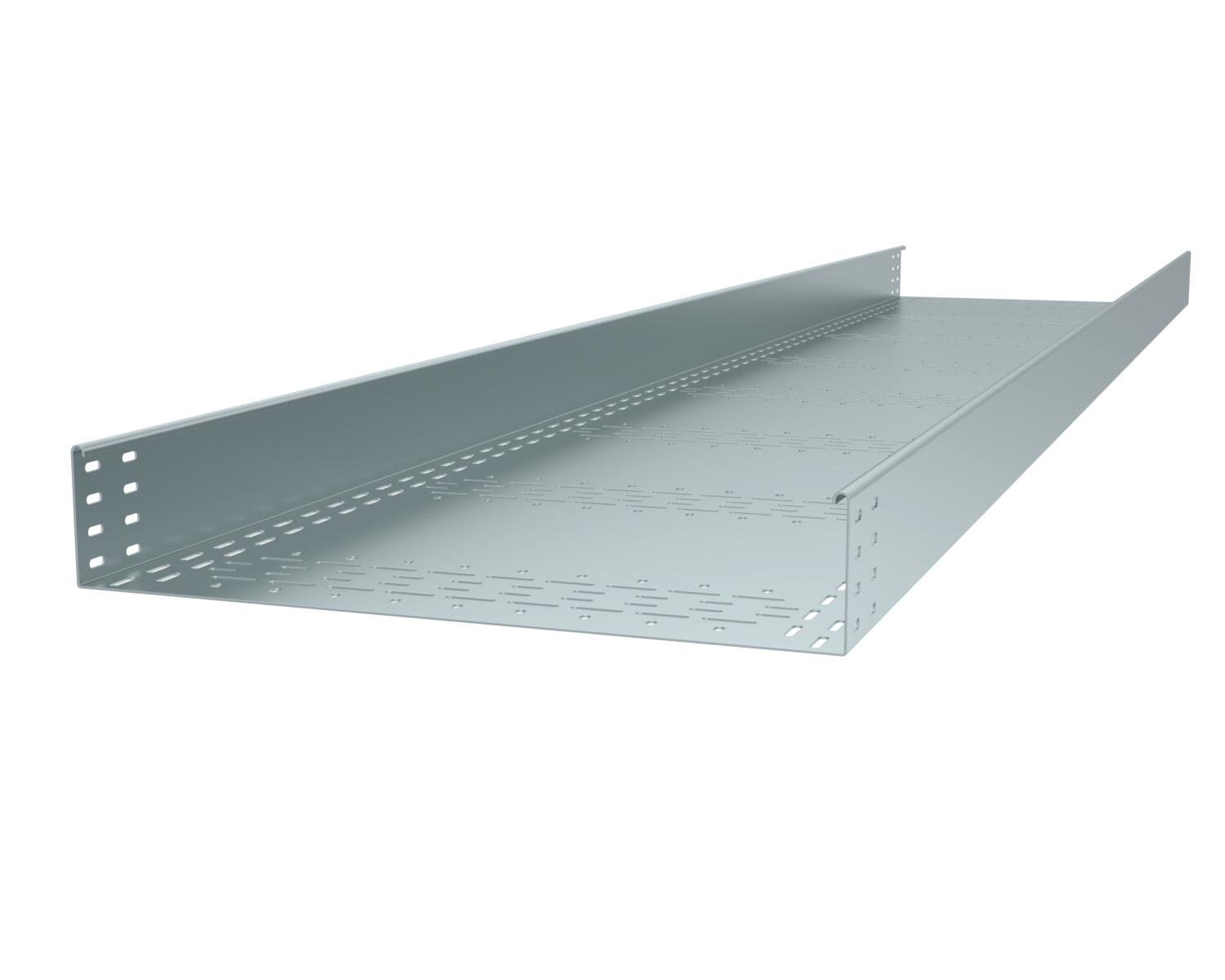

Cable tray BKRS 110 FS

Item no. 6061991 | EAN 4012196147090

3000 mm
2 mm
no
Steel
Strip galvanized
Product description
Product description
Heavy-duty, walkable cable tray system BKRS with base perforation, in 110 mm side height.

Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Underwriters Laboratories Inc., USA
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour zinc
Connector version Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate 30,504 kg CO₂e / 1 Meter

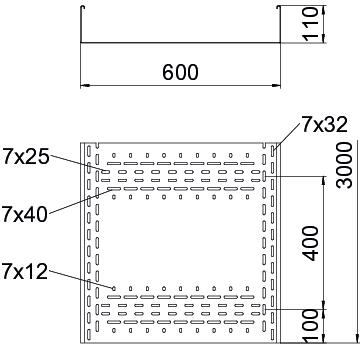

Dimension 110x600x3000
Dimension B 600 mm
Dimension H 110 mm
Dimension L 3000 mm
Height 110 mm
Height 4 in
Length 10 ft
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 2 mm
Plate thickness 0,08 in
Rustproof steel, pickled no
Side perforation no
Support spacing 1.5 m 1,67 kN/m
Support spacing 2.0 m 1,46 kN/m
Support spacing 2.5 m 1,2 kN/m
Support spacing 3.0 m 0,92 kN/m
Surface Strip galvanized
Type of connector, cable support system Screwed
Usable cross-section 596 cm²
Usable cross-section 59600 mm²
Wide-span version no
Width 24 in
Width 600 mm
With cover no
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
BKRS 1110 FS 3000 mm 100 mm 2 mm no Steel Strip galvanized 6061981
3 m
BKRS 1120 FS 3000 mm 200 mm 2 mm no Steel Strip galvanized 6061983
3 m
BKRS 1130 FS 3000 mm 300 mm 2 mm no Steel Strip galvanized 6061985
3 m
BKRS 1140 FS 3000 mm 400 mm 2 mm no Steel Strip galvanized 6061987
3 m
BKRS 1150 FS 3000 mm 500 mm 2 mm no Steel Strip galvanized 6061989
3 m
BKRS 1160 FS 3000 mm 600 mm 2 mm no Steel Strip galvanized 6061991
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
BKRS FT support bracket BKRS FT support bracket STA BKRS 600 FT 6044553
1 piece
Support profile 100 FS Support profile 100 FS STP Z 1060 FS 6044591
1 piece
Chequer plate cover DBKR FS Chequer plate cover DBKR FS DBKR 600 FS 6049129
3 m
Straight and angle connector 110 FS Straight and angle connector 110 FS RLVL 110 FS 6067131
10 piece
Reducer/stop-end 110 FS Reducer/stop-end 110 FS RWEB 160 FS 7111740
1 piece

Mounting accessories

Products Types Item no. Quantity SSU
Cover clamp G Cover clamp G DK DBKR G 6049280
30 piece
Dust protection element and joint plate FS Dust protection element and joint plate FS SSE SSLB 600 FS 6049300
1 piece
Barrier strip, Z-shaped 110 FS Barrier strip, Z-shaped 110 FS TSG110Z BKRS FS 6062391
3 m
