Cable tray BKRS 110 FS 3000 | 500 | 2 | no | Steel | Strip galvanized

Cable tray BKRS 110 FS

Item no. 6061989 | EAN 4012196147069

Item no. / Types

Length	3000 mm

Width

Plate thickness	2 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

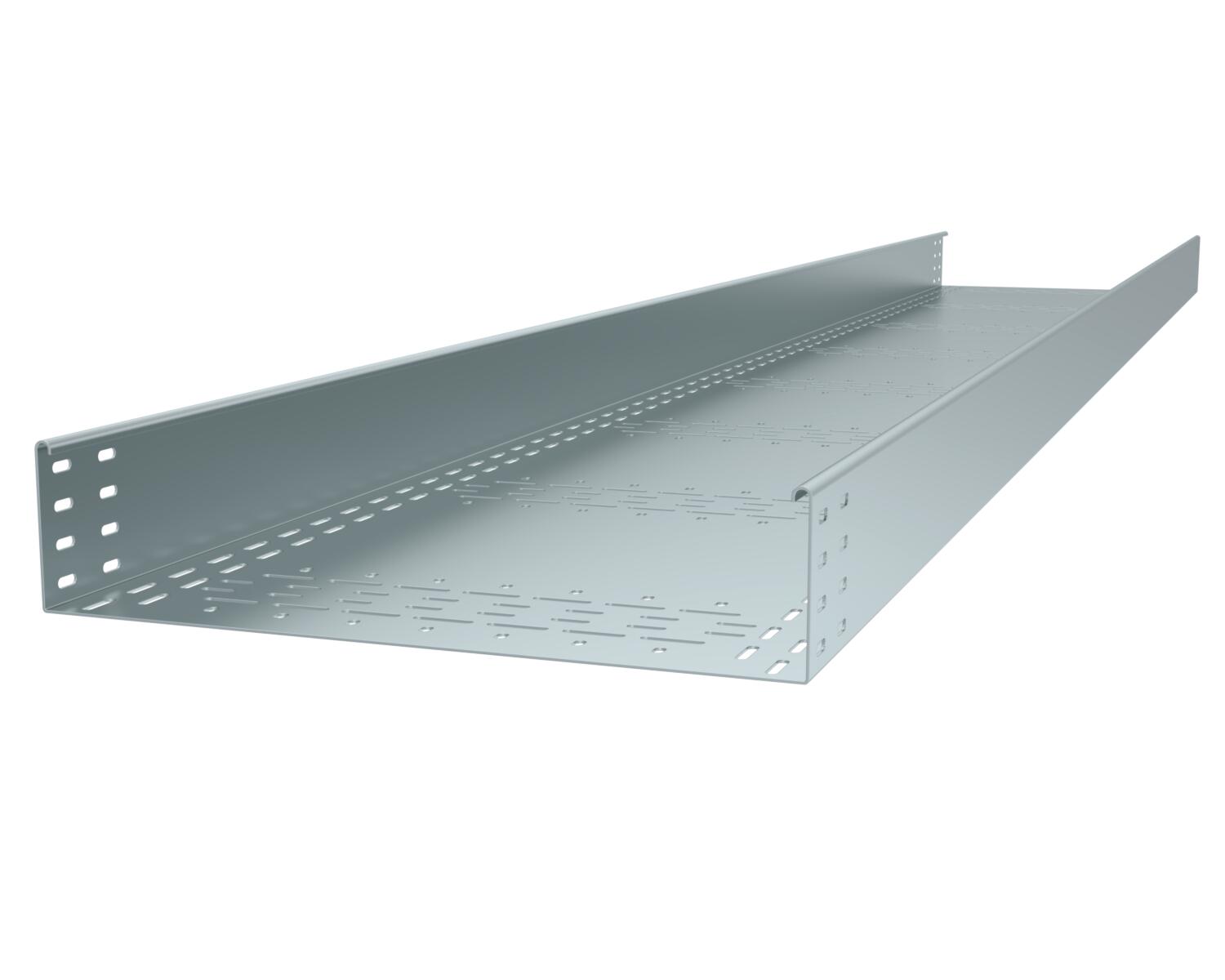

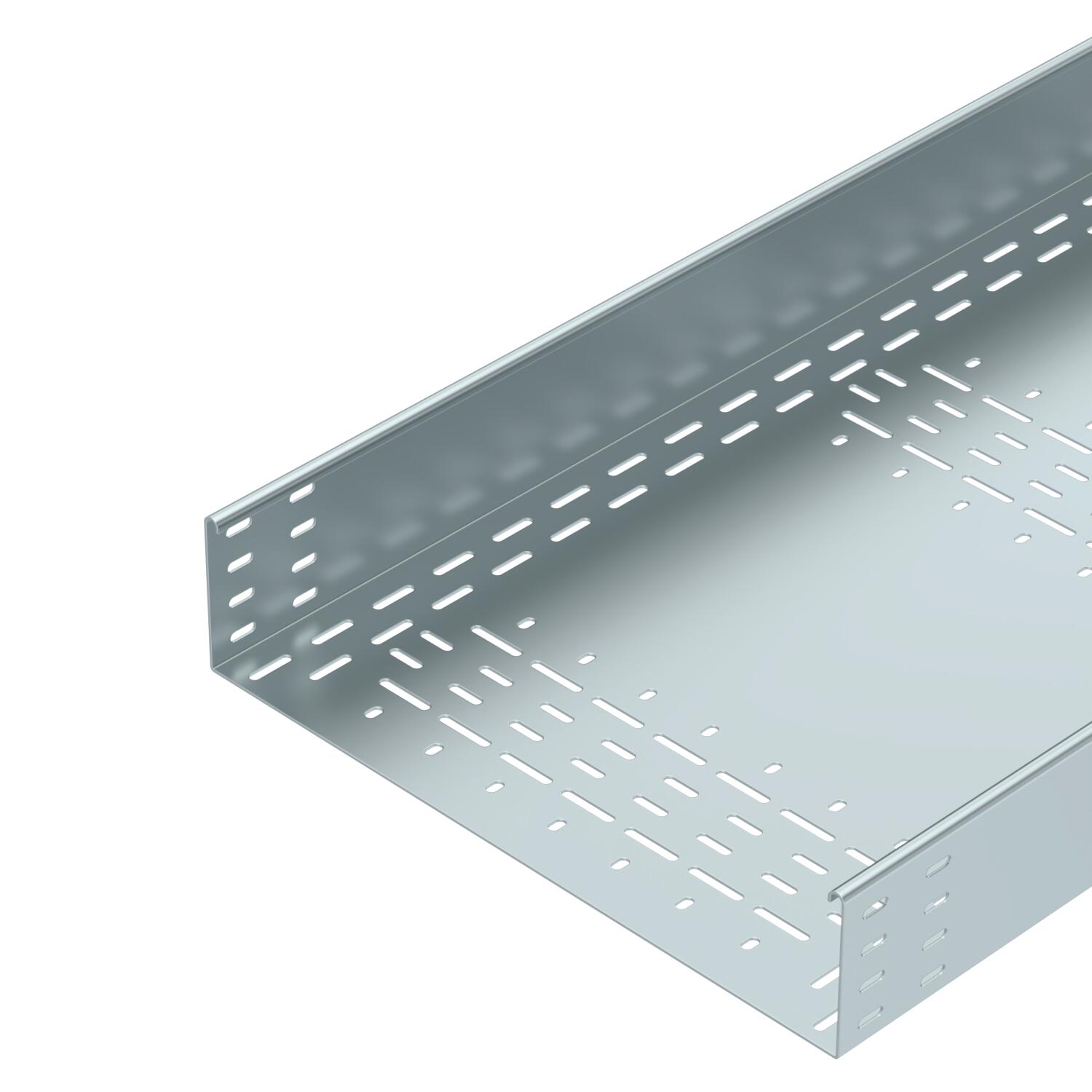

Heavy-duty, walkable cable tray system BKRS with base perforation, in 110 mm side height.

Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	26,892 kg CO₂e / 1 Meter

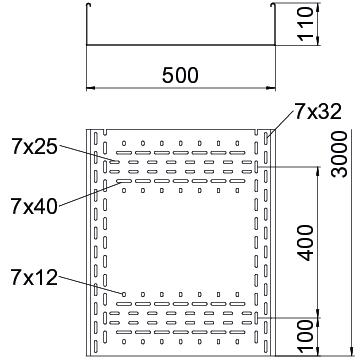

Dimension	110x500x3000
Dimension B	500 mm
Dimension H	110 mm
Dimension L	3000 mm
Height	4 in
Height	110 mm
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

Plate thickness	0,08 in
Plate thickness	2 mm
Rustproof steel, pickled	no
Side perforation	no
Support spacing 1.5 m	1,67 kN/m
Support spacing 2.0 m	1,46 kN/m
Support spacing 2.5 m	1,2 kN/m
Support spacing 3.0 m	0,92 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	49600 mm²
Usable cross-section	496 cm²
Wide-span version	no
Width	20 in
Width	500 mm
With cover	no

All types

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
BKRS 1110 FS	3000 mm	100 mm	2 mm	no	Steel	Strip galvanized	6061981	m	3 m
BKRS 1120 FS	3000 mm	200 mm	2 mm	no	Steel	Strip galvanized	6061983	m	3 m
BKRS 1130 FS	3000 mm	300 mm	2 mm	no	Steel	Strip galvanized	6061985	m	3 m
BKRS 1140 FS	3000 mm	400 mm	2 mm	no	Steel	Strip galvanized	6061987	m	3 m
BKRS 1150 FS	3000 mm	500 mm	2 mm	no	Steel	Strip galvanized	6061989	m	3 m
BKRS 1160 FS	3000 mm	600 mm	2 mm	no	Steel	Strip galvanized	6061991	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

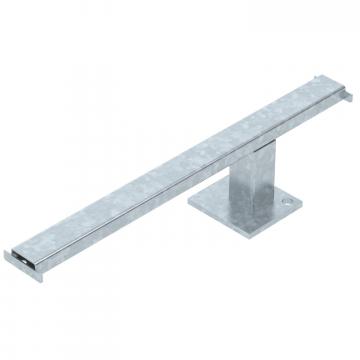

BKRS FT support bracket	STA BKRS 500 FT	6044551	piece	1 piece
Support profile 100 FS	STP Z 1050 FS	6044589	piece	1 piece

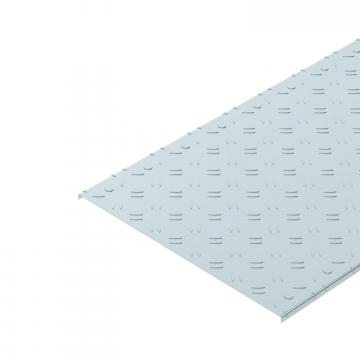

Chequer plate cover DBKR FS	DBKR 500 FS	6049127	m	3 m
Straight and angle connector 110 FS	RLVL 110 FS	6067131	piece	10 piece
Reducer/stop-end 110 FS	RWEB 150 FS	7111509	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Cover clamp G	DK DBKR G	6049280	piece	30 piece
Dust protection element and joint plate FS	SSE SSLB 500 FS	6049298	piece	1 piece
Barrier strip, Z-shaped 110 FS	TSG110Z BKRS FS	6062391	m	3 m
