Cable tray BKRS 100 FS 3000 | 600 | 2 | no | Steel | Strip galvanized

Cable tray BKRS 100 FS

Item no. 6062010 | EAN 4012196341917

Item no. / Types

Length	3000 mm

Width

Plate thickness	2 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

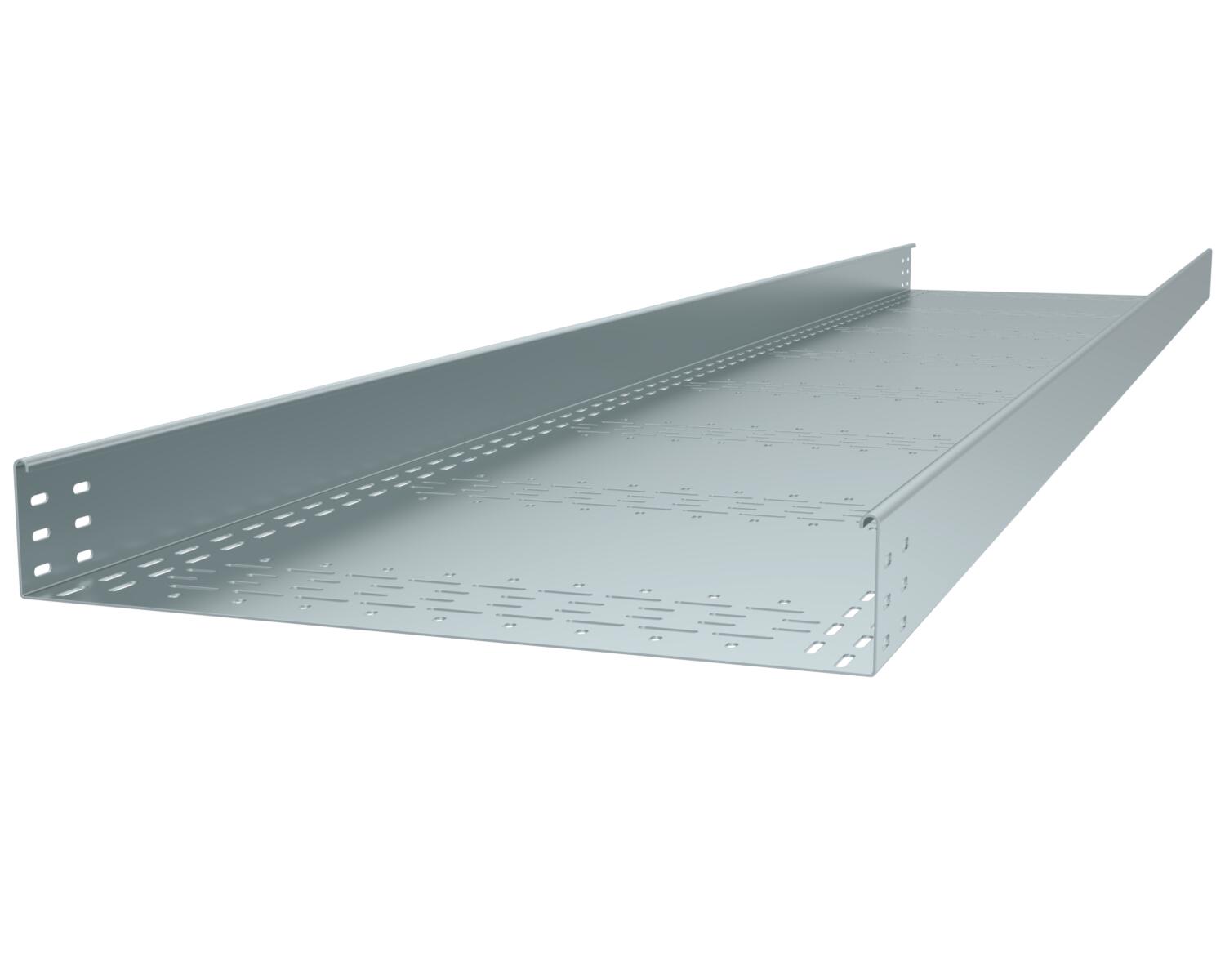

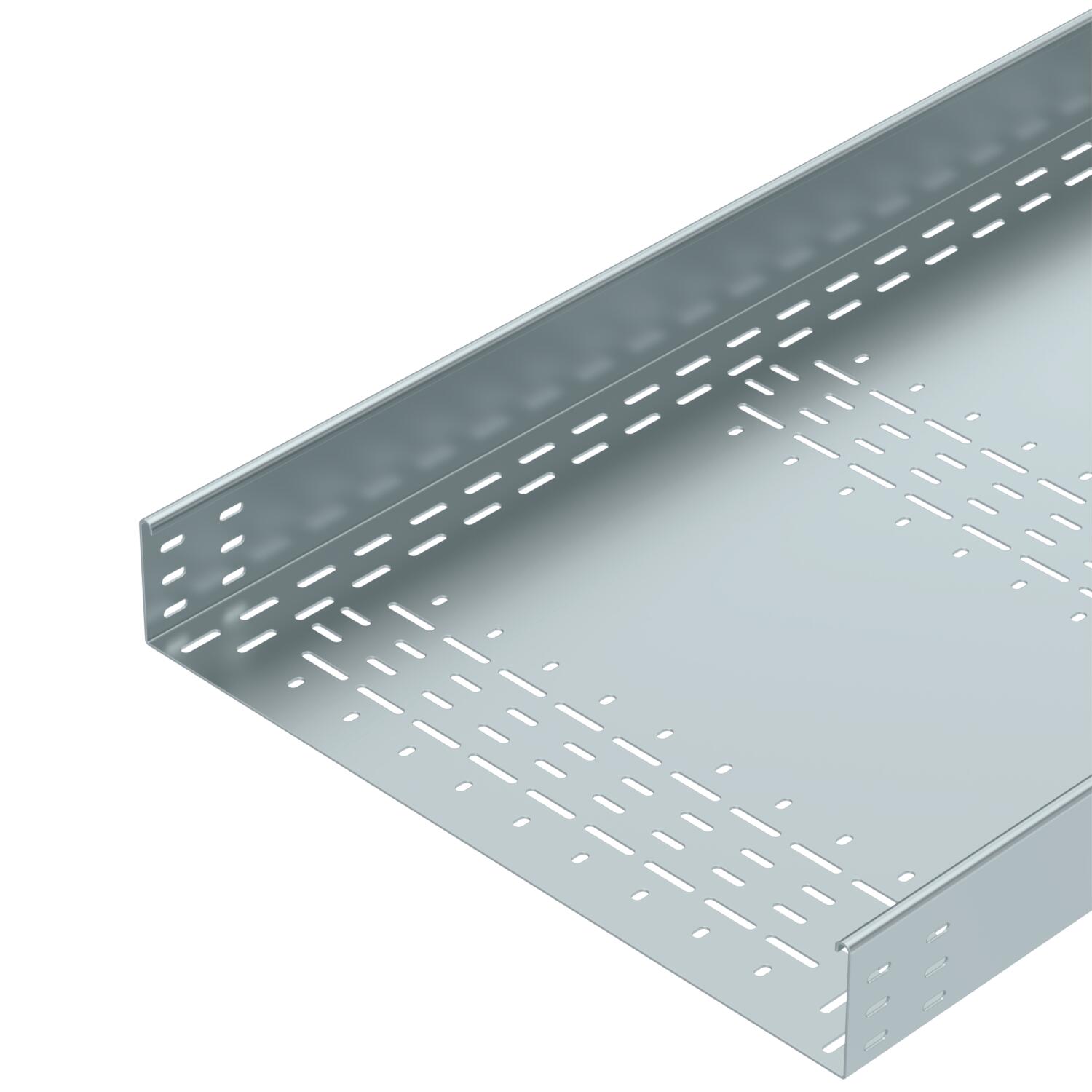

Heavy-duty, walkable cable tray system BKRS with base perforation, in 100 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Technical data

Connector version	Without connectors

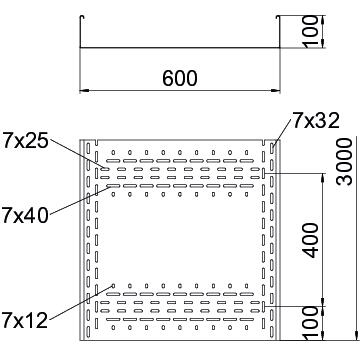

Dimension	100x600x3000
Dimension B	600 mm
Dimension H	100 mm
Dimension L	3000 mm
Height	100 mm
Height	4 in
Length	10 ft
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes

NATO hole pattern	no
Plate thickness	0,08 in
Plate thickness	2 mm
Rustproof steel, pickled	no
Side perforation	no
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	51852 mm²
Usable cross-section	519 cm²
Wide-span version	no
Width	24 in
Width	600 mm
With cover	no

All types

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
BKRS 1010 FS	3000 mm	100 mm	2 mm	no	Steel	Strip galvanized	6062000	m	3 m
BKRS 1020 FS	3000 mm	200 mm	2 mm	no	Steel	Strip galvanized	6062002	m	3 m
BKRS 1030 FS	3000 mm	300 mm	2 mm	no	Steel	Strip galvanized	6062004	m	3 m
BKRS 1040 FS	3000 mm	400 mm	2 mm	no	Steel	Strip galvanized	6062006	m	3 m
BKRS 1050 FS	3000 mm	500 mm	2 mm	no	Steel	Strip galvanized	6062008	m	3 m
BKRS 1060 FS	3000 mm	600 mm	2 mm	no	Steel	Strip galvanized	6062010	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

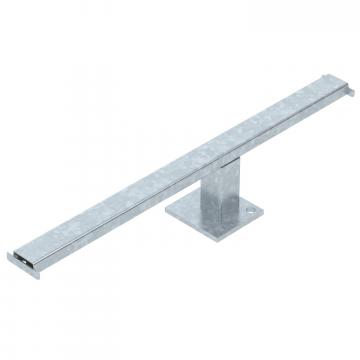

BKRS FT support bracket	STA BKRS 600 FT	6044553	piece	1 piece
Support profile 100 FS	STP Z 1060 FS	6044591	piece	1 piece

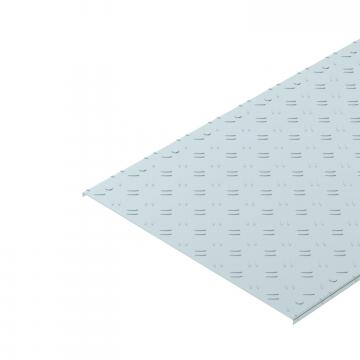

Chequer plate cover DBKR FS	DBKR 600 FS	6049129	m	3 m
Universal connector 100 FS	RUVK 100 FS	6067870	piece	10 piece
100 FS reducer/stop-end	RWEB 1060 FS	7111812	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Cover clamp G	DK DBKR G	6049280	piece	30 piece
Dust protection element and joint plate FS	SSE SSLB 600 FS	6049300	piece	1 piece
Barrier strip, Z-shaped 100 FS	TSG100Z BKRS FS	6062390	m	3 m
