Product description

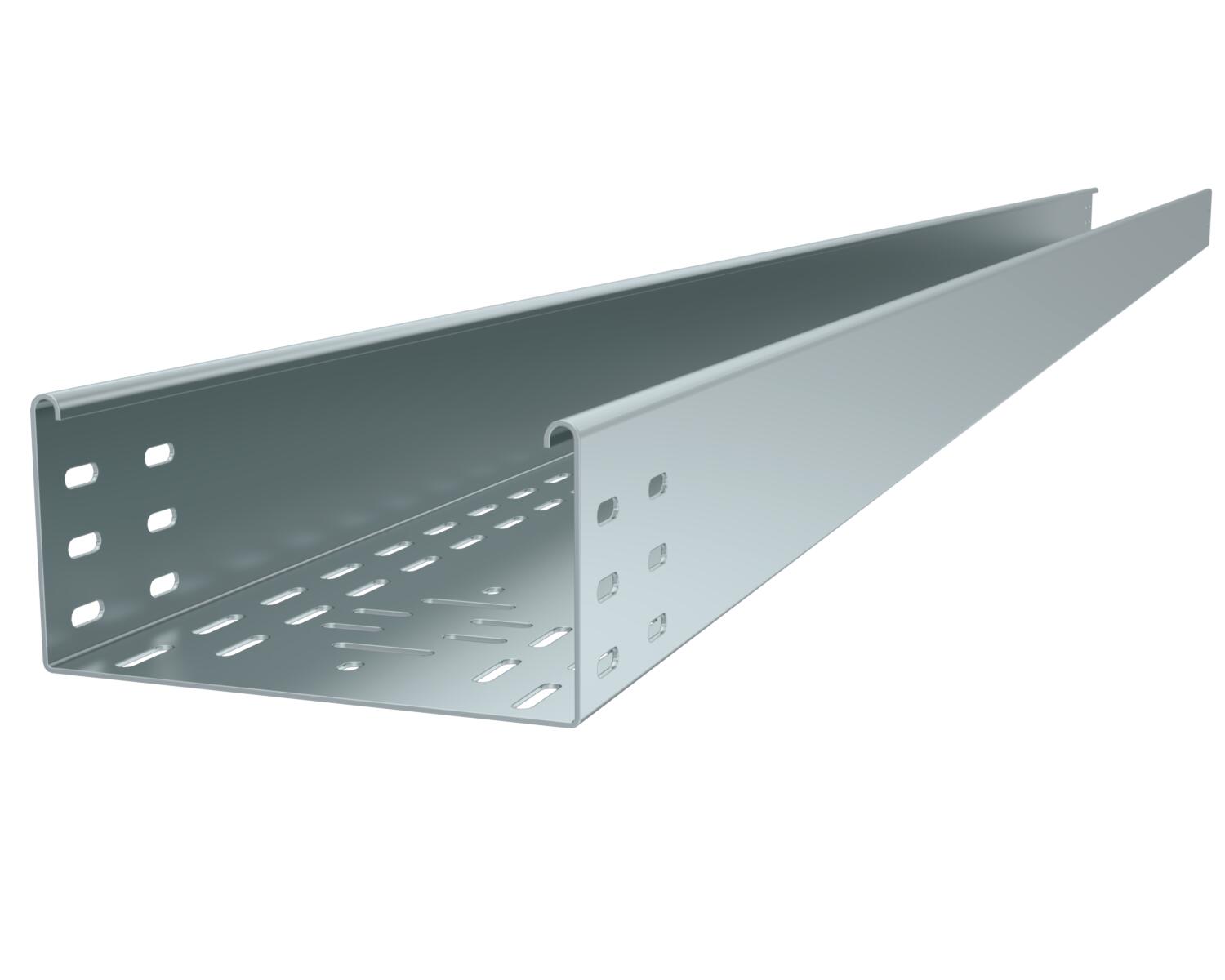

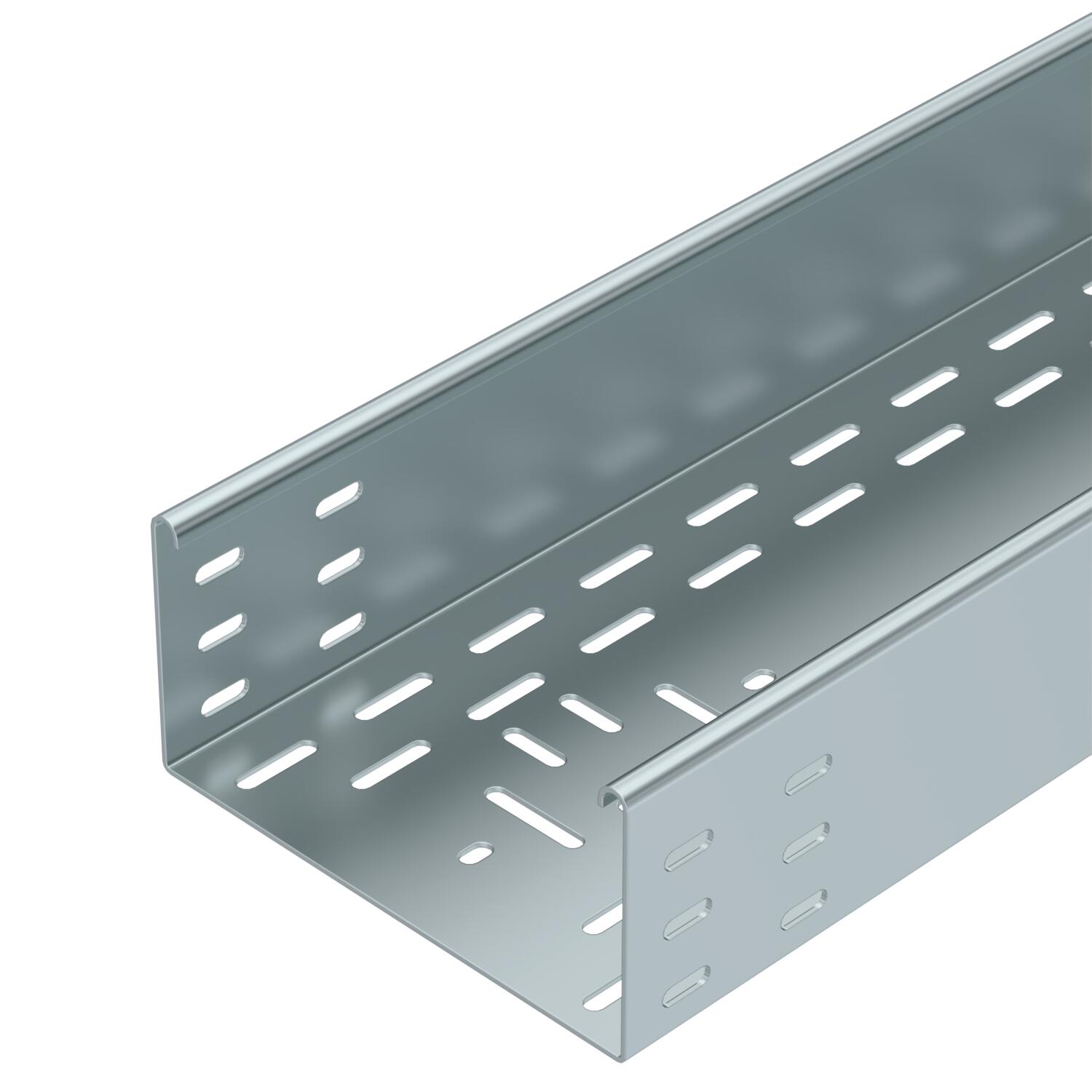

Heavy-duty, walkable cable tray system BKRS with base perforation, in 100 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Connector version Without connectors Dimension 100x200x3000 Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 0,08 in Plate thickness 2 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Screwed Usable cross-section 171 cm² Usable cross-section 17052 mm² Wide-span version no With cover no Dimensions

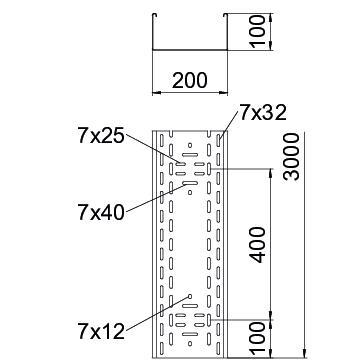

Dimension B 200 mm Dimension H 100 mm Dimension L 3000 mm Height 4 in Height 100 mm Length 10 ft Length 3000 mm Width 8 in Width 200 mm - All types
-
All types
- Downloads
-
Data sheet BKRS 1020 FS / 6062002 , 0.19MB , pdfDeclaration of conformity BKRS 1020 FS / 6062002 , 0.15MB , pdfREACH Declaration of conformity BKRS 1020 FS / 6062002 , 0.12MB , pdfRoHS Declaration of conformity BKRS 1020 FS / 6062002 , 0.12MB , pdfLabel approval UL certificate cable trays BKRS , 0.24MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Mercedes Benz , 4.15MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdfMounting instructions BKRS Begehbare Kabelrinnensysteme , 5.36MB , pdf
