Cable ladder with Z rung, light duty 3000 | 100 | 3 | no

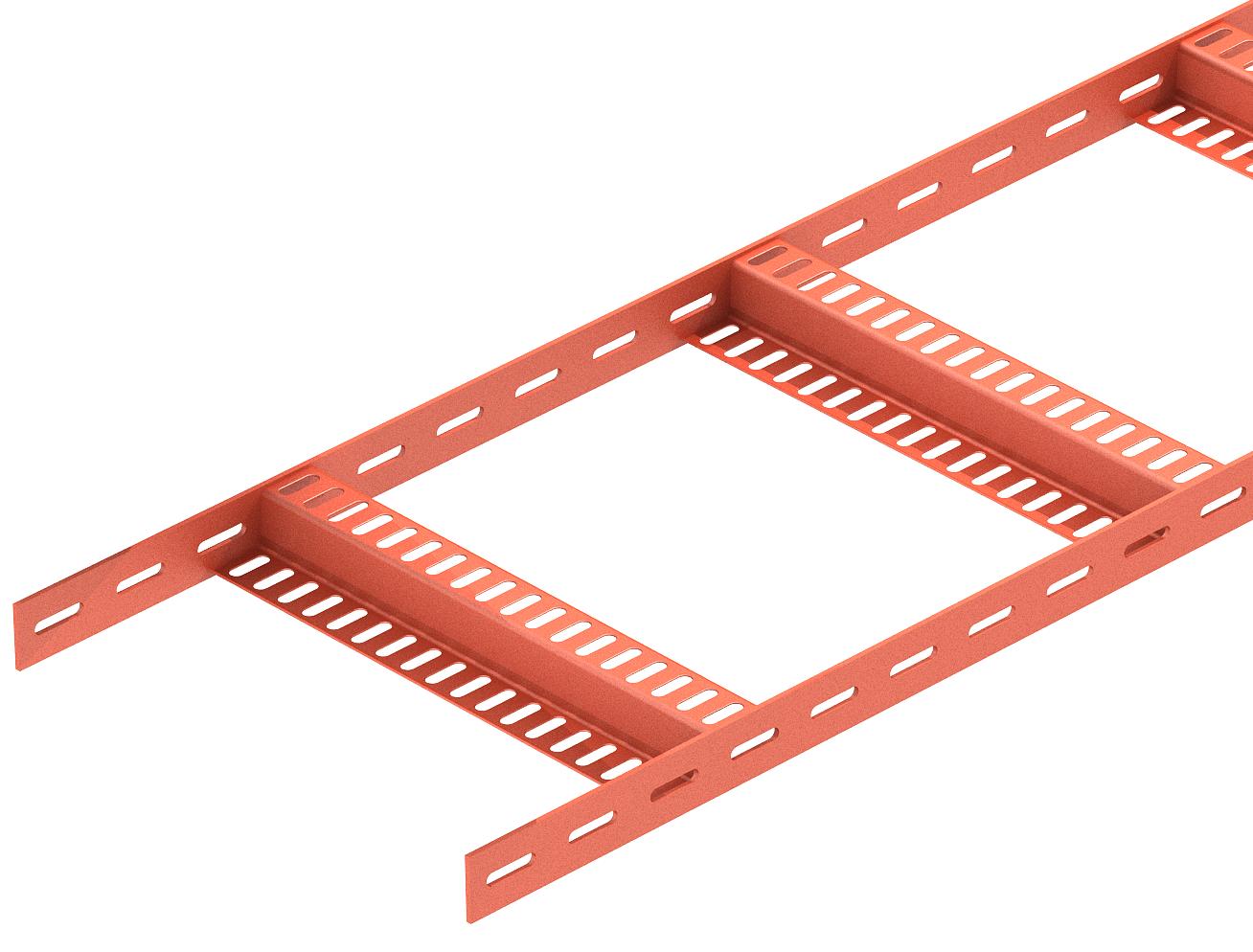

Cable ladder with Z rung, light duty

Item no. 7098032 | EAN 4012195707745

Item no. / Types

Length	3000 mm

Width

Rail thickness	3 mm

Maintain electrical functions	no

Product description

Product description

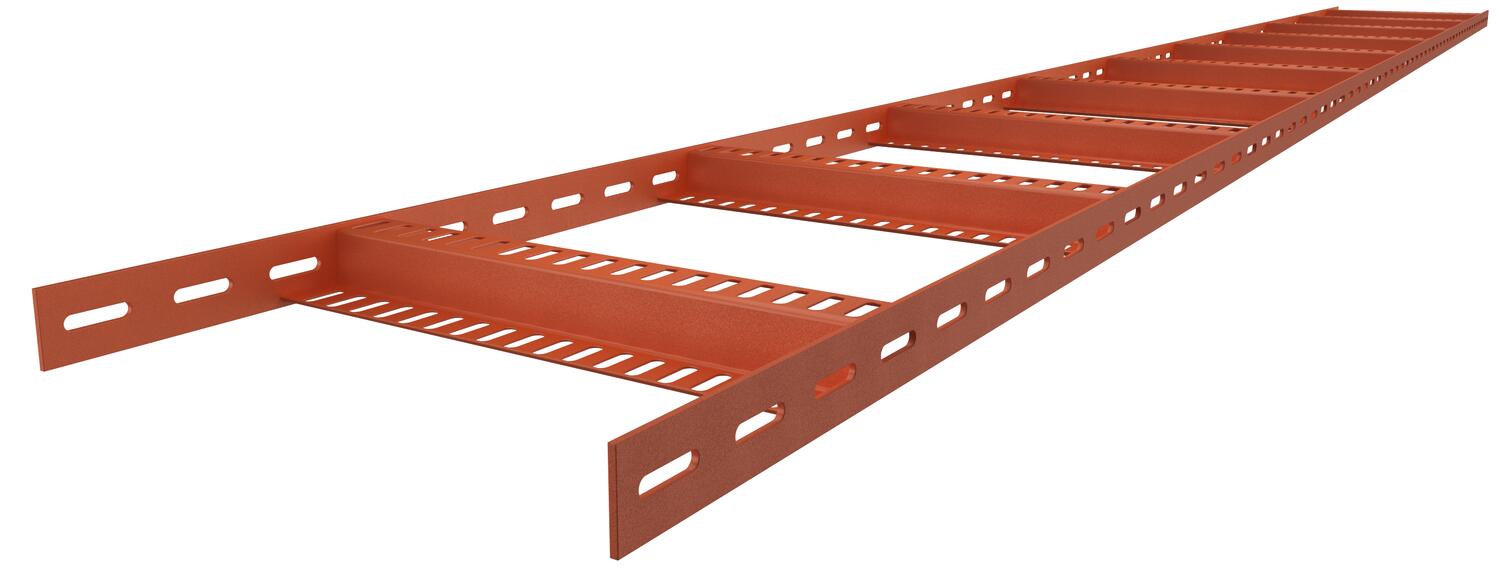

Light-duty shipbuilding cable ladder with perforated side rail of side height 35 mm with welded, perforated Z rungs. Load tested according to IEC in conjunction with connector, type SLV. Welding primer type SIGMA-WELD 199, also available in white.

Technical data

Technical data

Colour	rust red
CO₂ Footprint (GWP) Cradle-to-Gate	3,486 kg CO₂e / 1 Meter
Dimension	35x106x3000
Dimension	35x100
Dimension B	106 mm
Fastening of rung	Welded
Height	35 mm
Length	3000 mm
Length	3000 ft
Maintain electrical functions	no
Material	Steel
Rail thickness	3 mm

Rung distance	300 mm
Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Flat profile
Support spacing 1.5 m	1,5 kN/m
Support spacing 2.0 m	0,85 kN/m
Support spacing 2.5 m	0,35 kN/m
Support spacing 3.0 m	0,25 kN/m
Surface	Welding primed
Version of the rungs	Profile perforated
Wide-span version	no
Width	100 mm

Technical data

Load diagram, cable ladder, type SLZ L

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Load scheme during testing

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.	Quantity	SSU
SLZ L 100 SG	3000 mm	100 mm	3 mm	no	7098032	m	3 m
SLZ L 200 SG	3000 mm	200 mm	3 mm	no	7098036	m	3 m
SLZ L 300 SG	3000 mm	300 mm	3 mm	no	7098038	m	3 m
SLZ L 400 SG	3000 mm	400 mm	3 mm	no	7098040	m	3 m
SLZ L 500 SG	3000 mm	500 mm	3 mm	no	7098042	m	3 m
SLZ L 600 SG	3000 mm	600 mm	3 mm	no	7098044	m	3 m
