- Product description
-
Product description

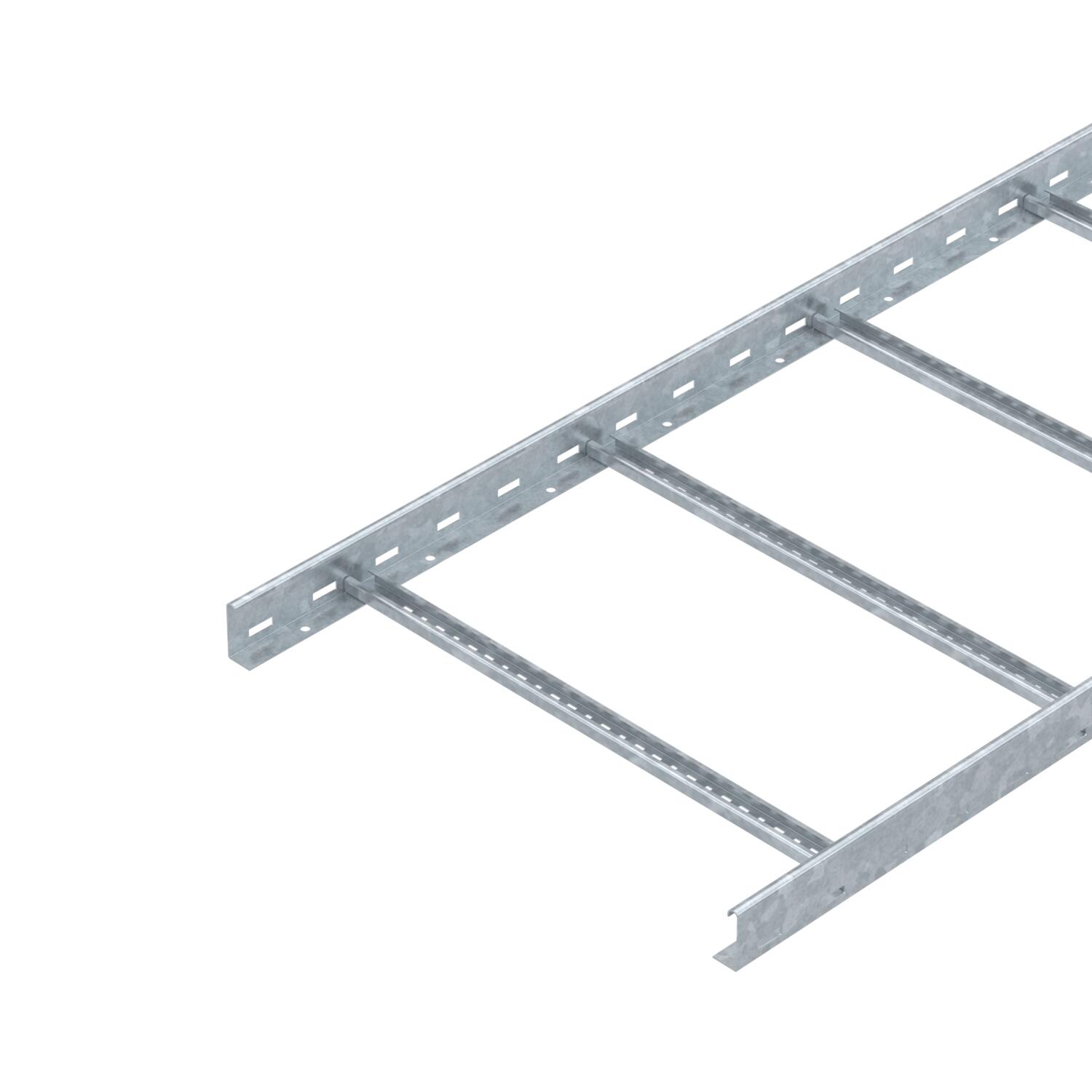

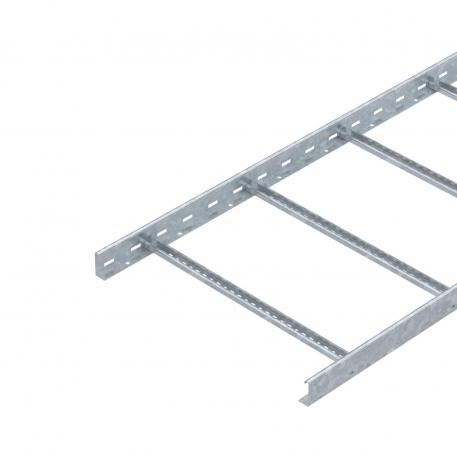

Cable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Additional widths are available on request.
- Technical data
-
Technical data
Dimension 60x600x3000 Fastening of rung Blind riveted Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rung distance 300 mm Rustproof steel, pickled no Side perforation yes Side rail version Flat profile Surface Hot-dip galvanised Usable cross-section 29800 mm² Usable cross-section 298 cm² Version of the rungs Profile perforated Wide-span version no Dimensions
Dimension B 600 mm Height 60 mm Length 3000 mm Length 3000 ft Rung slot dimension 16,50 Width 600 mm Loads
Support spacing 1.5 m 3,1 kN/m Support spacing 2.0 m 2,25 kN/m Support spacing 2.5 m 1,5 kN/m Support spacing 3.0 m 1,1 kN/m Support spacing 3.5 m 0,75 kN/m Support spacing 4.0 m 0,45 kN/m Technical data
Load diagram, cable ladder, type LG 60 VS
- Permitted cable tray/ladder load in kN/m without man load
- Support width in m
- Rail bend in mm at permitted kN/m
- Load scheme during testing
- Load curve with cable tray/ladder width in mm
- Strut bend curve according to support width
- All types
-
All types
- Downloads
-
Data sheet LG 660 VS 3 FT / 6208578 , 0.28MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LG 660 VS 3 FT / 6208578 , 0.17MB , pdfREACH Declaration of conformity LG 660 VS 3 FT / 6208578 , 0.12MB , pdfRoHS Declaration of conformity LG 660 VS 3 FT / 6208578 , 0.12MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf
